915220 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler (SN: 080000 & Above) Frame Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler

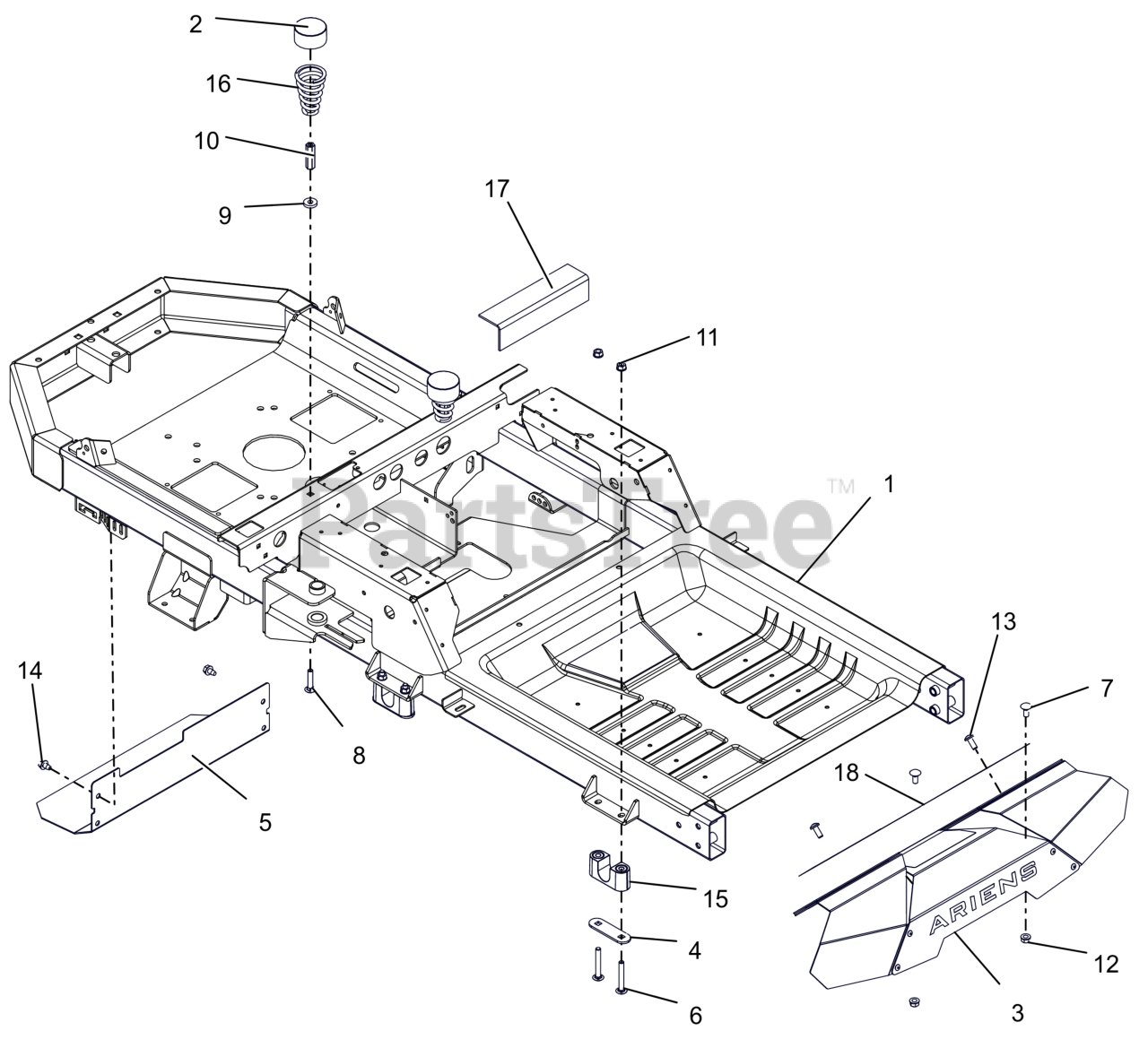

Frame Parts Diagram

  • Title

1

Ariens 51531600

KIT, IKON-X/XL FRAME (2016)

$746.99

$

Usually ships in 4-12 days

0

2

Ariens 00337700

HUB CAP

$2.99

$

In Stock, only 2 left!

0

3

Ariens 51531300

KIT, IKON FOOT REST W/DECAL

$98.99

$

Usually ships in 4-12 days

0

4

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 3 left!

0

5

Ariens 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 2 left!

0

6

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 10

0

9

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 2 left!

0

10

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, Qty 8

0

12

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07400134

SCR-RDHDSKTAP .31-18X.75 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 08300021

SPRING, SEAT

$20.99

$

In Stock, only 1 left!

0

17

Ariens 04864600

PAD, RUBBER-TANK

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 05112300

GRIP TAPE, FOOT PLATE

$17.99

$

Usually ships in 4-12 days

0
