915221 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 075000 - 079999) Engine - Kawasaki FR600 Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

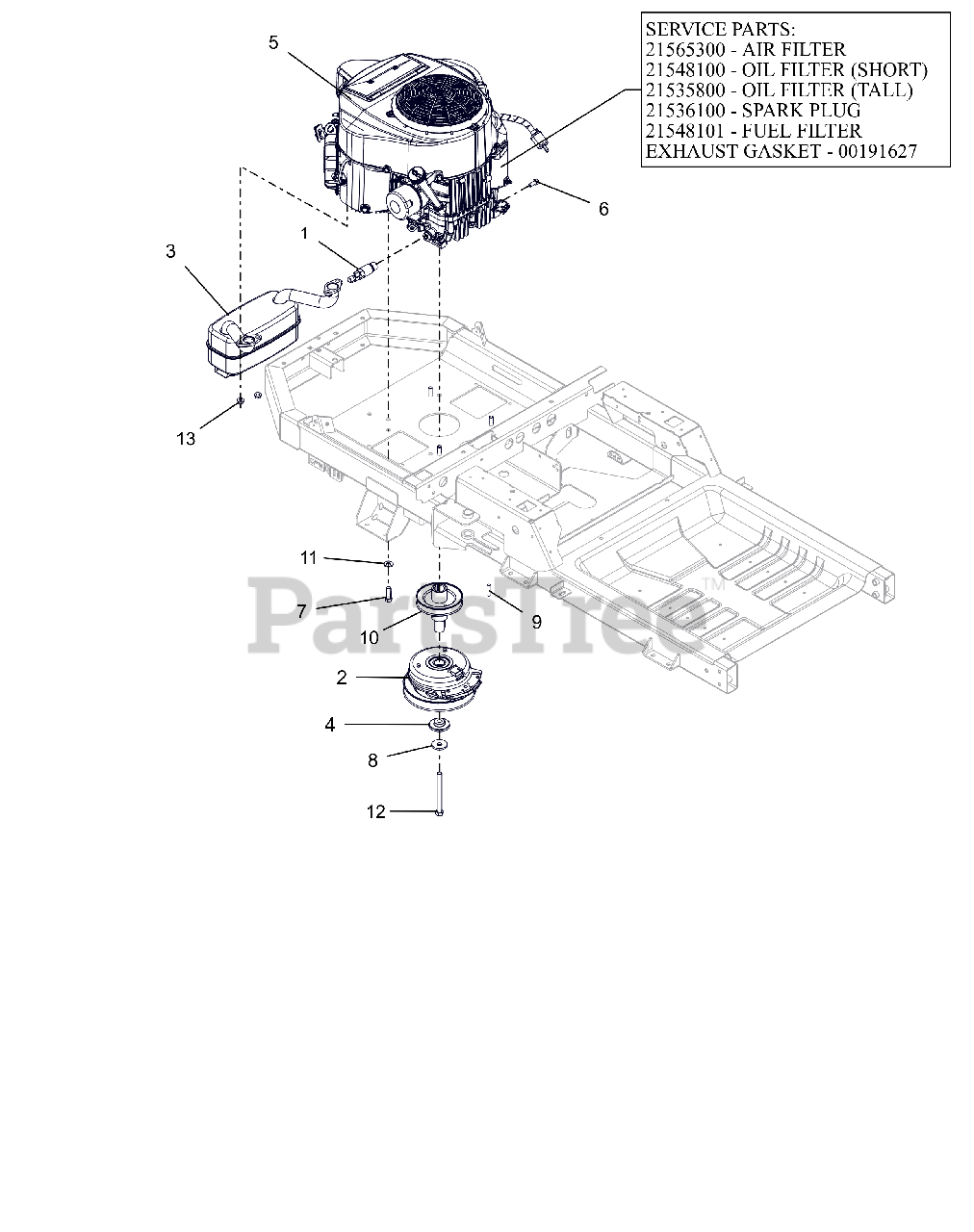

Engine - Kawasaki FR600 Parts Diagram

  • Title

1

Ariens 04977100

DRAIN, OIL M20X2.5

$17.99

$

In Stock, Qty 12

0

2

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$275.99

$

In Stock, Qty 9

0

3

Ariens 05170600

MUFFLER - KAWASAKI

$70.99

$

Usually ships in 4-12 days

0

4

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$20.99

$

In Stock, only 2 left!

0

5

Ariens 08201323

ENGINE, KAWASAKI FR600

$

$

Currently unavailable

5

Ariens 21565300

AIR FILTER, KAWASAKI FR

Note: SERVICE PART

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: SERVICE PART

$20.99

$

Usually ships in 2-5 days

0

5

Ariens 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: SERVICE PART

$18.99

$

Usually ships in 2-5 days

0

5

Ariens 21536100

PLUG, SPARK

Note: SERVICE PART

$11.99

$

In Stock, Qty 20+

0

5

Ariens 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: SERVICE PART

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 00191627

GASKET, MUFFLER S/O

Note: SERVICE PART

$9.49

$

In Stock, Qty 16

0

6

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.99

$

In Stock, Qty 20+

0

8

Ariens 06400936

WASHER, 7/16" SPRING DISK

$12.99

$

In Stock, only 3 left!

0

9

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$4.99

$

In Stock, Qty 10

0

10

Ariens 07345100

WLDMT, DRIVE SHEAVE-X

$85.99

$

In Stock, only 2 left!

0

11

Ariens 06400927

WASHER, 3/8" SPRING DISC

$4.99

$

In Stock, Qty 20+

0

12

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$6.99

$

In Stock, only 1 left!

0

13

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.99

$

In Stock, Qty 11

0
