915224 - Ariens Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB (SN: 045000 & Above) Controls Parts Diagram

Ikon-X 42" Zero-Turn Mower, 22hp Kohler, CARB

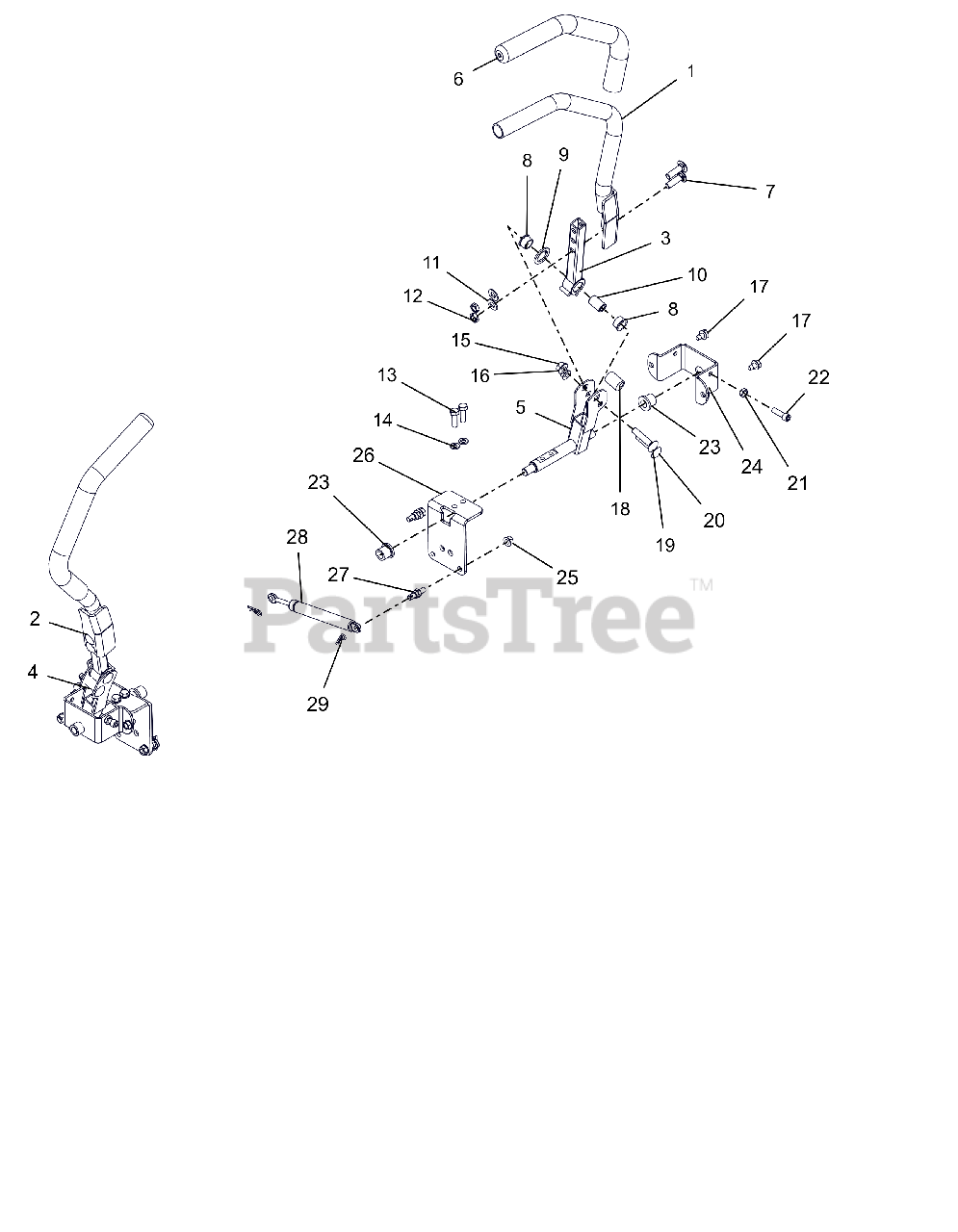

Controls Parts Diagram

  • Title

1

Ariens 04796151

WLDMT, STEERING HANDLE LH

$52.99

$

In Stock, only 1 left!

0

2

Ariens 04796051

WLDMT, STEERING HANDLE RH

$65.99

$

Usually ships in 4-12 days

0

3

Ariens 04959251

WLDMT, UPPER CONTROL ARM

$92.99

$

Usually ships in 4-12 days

0

4

Ariens 04959051

WLDMT,STEERING ARM LOWER RIGHT

$130.99

$

Usually ships in 4-12 days

0

5

Ariens 04959151

WLDMT,STEERING ARM LOWER LEFT

$145.99

$

Usually ships in 4-12 days

0

6

Ariens 04257400

GRIP, HANDLEBAR 15" FOAM

$16.99

$

In Stock, Qty 6

0

7

Ariens 06200220

BLT,RHSSN .38-16X1.25 G5 BFP
(Superseded to 06200236)

$2.99

$

In Stock, Qty 20+

0

8

Ariens 05501017

BSHG-FLG, .625X.75X.450X.875

$8.49

$

In Stock, Qty 12

0

9

Ariens 04832600

WASHER, FRICTION .875X1.25X.10

$6.49

$

In Stock, only 2 left!

0

10

Ariens 04193500

SPACER, .375X.625X.970 (PM)

$1.49

$

In Stock, only 2 left!

0

11

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

14

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

18

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, Qty 10

0

19

Ariens 06200221

BLT,RHSSN .38-16X1.75 G5 BFP

$6.49

$

Usually ships in 4-12 days

0

20

Ariens 06200222

BLT,RHSSN .31-18X1.75 G5 BFP

$2.99

$

Usually ships in 4-12 days

0

21

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05901733

SCR, SKH .312-18X1.00 G8 SS

$3.49

$

In Stock, only 1 left!

0

23

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 18

0

24

Ariens 04990951

BRKT, STEERING

$40.99

$

Usually ships in 4-12 days

0

25

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 04764151

BRKT, STEEERING

$40.99

$

Usually ships in 4-12 days

0

27

Ariens 05171400

COUPLER, DAMPER MOUNT

$7.49

$

In Stock, only 2 left!

0

28

Ariens 05160400

DAMPER, STRAIGHT MOUNT

$40.99

$

In Stock, Qty 16

0

29

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+
