915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 035000 - 044999) Front Caster Wheels Parts Diagram

Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

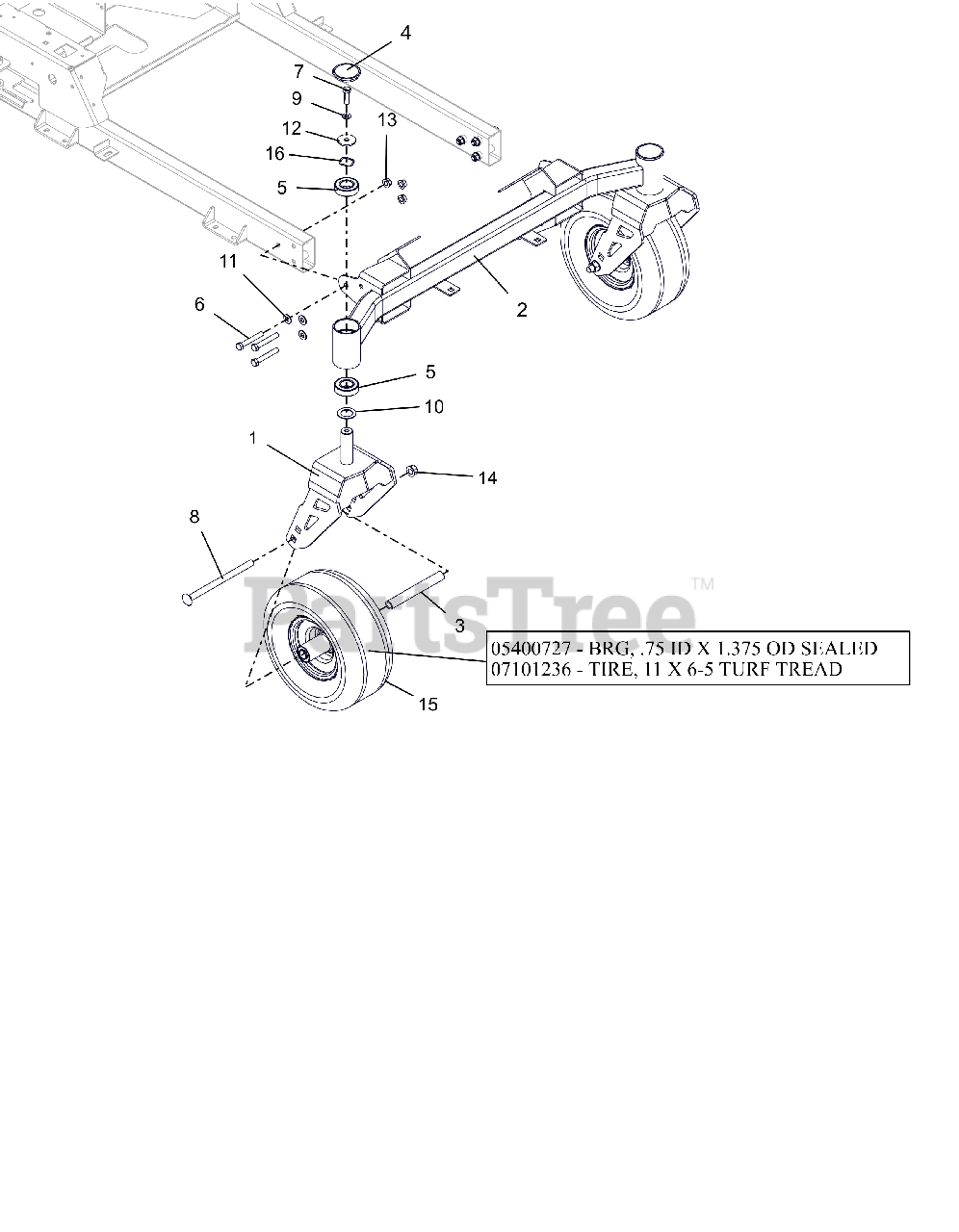

Front Caster Wheels Parts Diagram

  • Title

1

Ariens 04873059

WLDMT, CASTER FORK (WIDE)

$101.99

$

In Stock, only 1 left!

0

2

Ariens 04968659

WLDMT, AXLE FRONT

$211.99

$

Usually ships in 4-12 days

0

3

Ariens 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$15.99

$

In Stock, Qty 20+

0

4

Ariens 04792200

CAP, DUST

$13.99

$

In Stock, Qty 20+

0

5

Ariens 05400722

BRG,BALL 1.00X2.00X.563(1641)

$19.99

$

In Stock, Qty 20+

0

6

Ariens 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

7

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

8

Ariens 06200228

@BLT-RDHDSQNK .50-13X7.50 G5YZ
(Superseded to 06200509)

$7.49

$

In Stock, Qty 20+

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

10

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06439900

WSHR-HDND .406X.812X.055

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 06500736

NUT-LK-TOP-FLG .38-16 GRG YWZC
(Superseded to 06500905)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 07101105

TIRE/WHEEL ASSY, 11X6-5
(Superseded to 07101336)

$100.99

$

In Stock, Qty 9

0

15

Ariens 05400727

BRG, .75 ID X 1.375 OD SEALED

Note: Component Service Part

$

$

Not available

15

Ariens 07101236

TIRE, 11X6-5 TURF TREAD

Note: Component Service Part

$74.99

$

Usually ships in 4-12 days

0

16

Ariens 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$6.49

$

In Stock, only 4 left!

0
