915228 - Ariens Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin (SN: 080000 & Above) Deck Lift Parts Diagram
Ikon-XL 60" Zero-Turn Mower, 25hp Kohler Twin

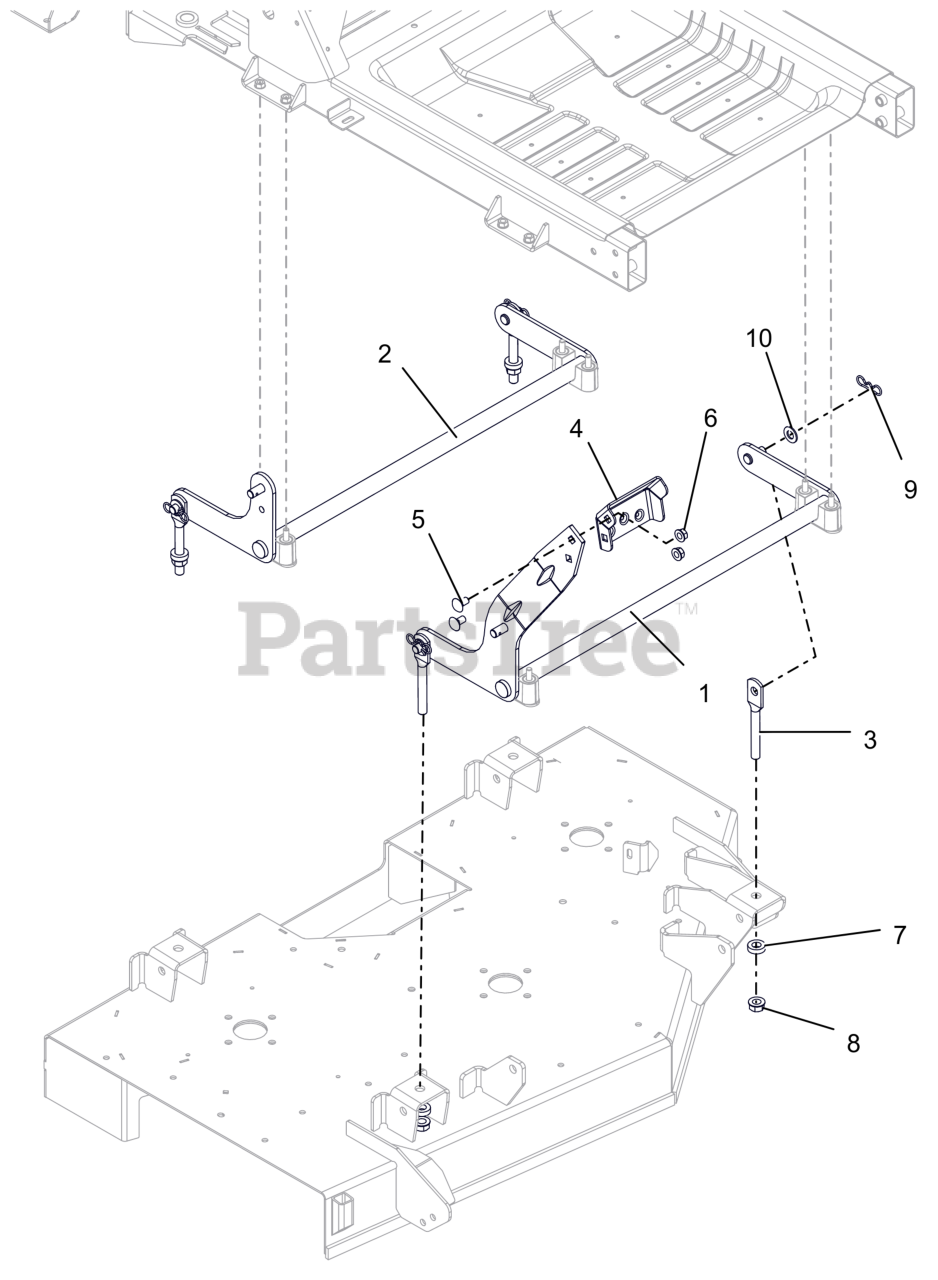

Deck Lift Parts Diagram
Ariens 05246059
WLDMT, FRONT DECK LIFT PIVOT
$134.99
$
Usually ships in 4-12 days
Ariens 05246159
WLDMT, REAR DECK PIVOT
$69.99
$
Usually ships in 4-12 days
Ariens 05113900
LINK,DECK (HOLE-LONG)
$7.49
$
In Stock, Qty 20+
Ariens 04869259
PEDAL, DECK LIFT (BOLT ON)
$18.99
$
Usually ships in 4-12 days
$4.99
$
In Stock, only 1 left!
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 07500417
WASHER, RUBBER
$2.49
$
In Stock, Qty 20+
Ariens 06500902
NUT-LK-CTR-FLG .500-13 GG ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06700220
PIN, BOWTIE .091X1.875 ZCC
$2.99
$
In Stock, Qty 20+
Ariens 06443300
WSHR-FL-NYL .518X1.000X.080
$0.99
$
In Stock, Qty 20+
