915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 - 029999) Electrical Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

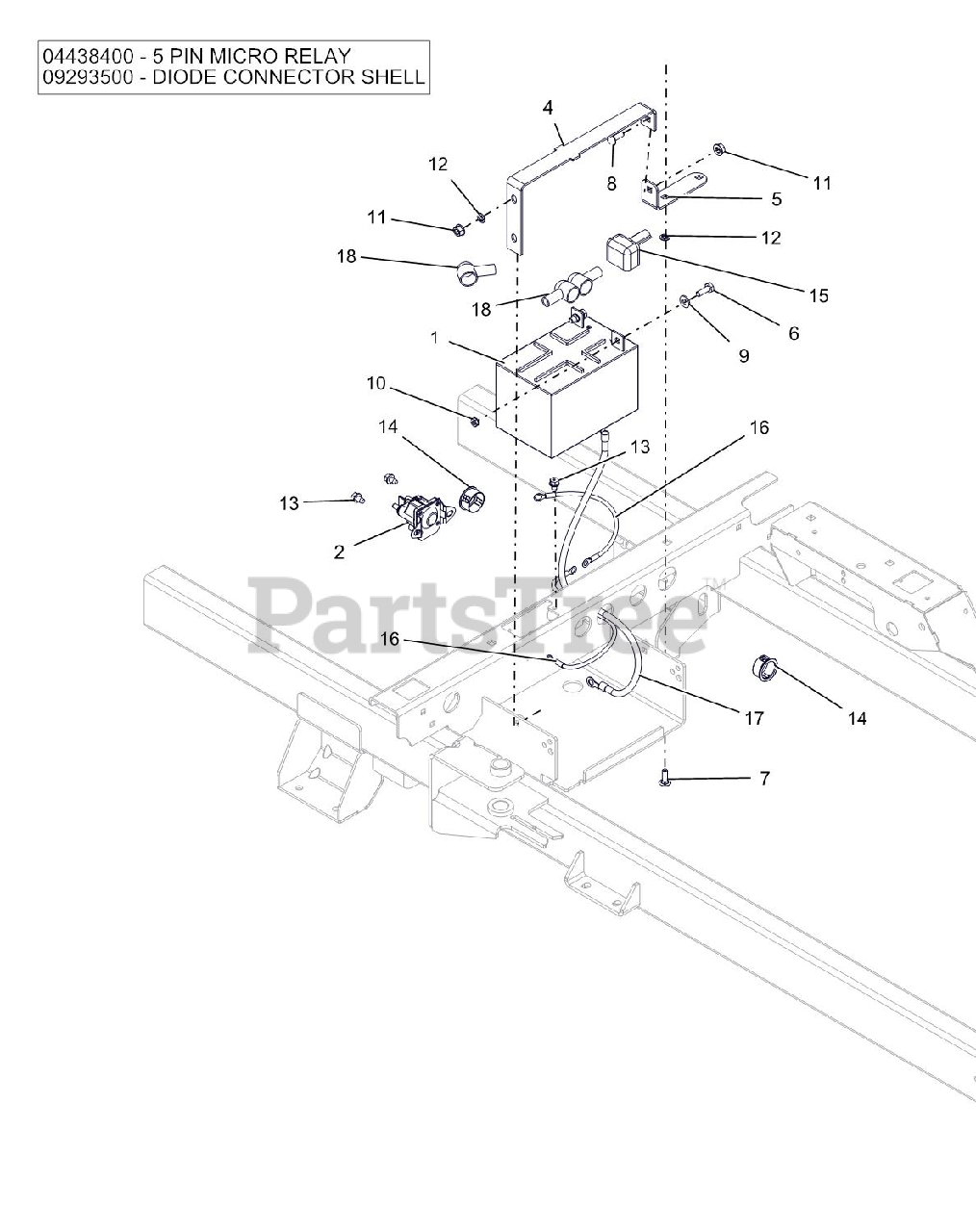

Electrical Parts Diagram

  • Title

1

Gravely 04738800

BATTERY, 12V 12A-190CCA

$116.99

$

In Stock, Qty 20+

0

2

Gravely 04781700

SOLENOID, STARTER (SEALED)

$47.99

$

In Stock, Qty 5

0

4

Gravely 04794651

BRKT, BATTERY HOLD-DOWN

$25.99

$

Usually ships in 4-12 days

0

5

Gravely 04833651

BRKT, BATTERY HOLD DOWN

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

7

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

10

Gravely 06500704

NUT, 10-24 KEPS

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

12

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 11

0

13

Gravely 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 7

0

14

Gravely 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 1 left!

0

18

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, Qty 7

0

19

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: SERVICE PART

$17.99

$

In Stock, only 3 left!

0

20

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: SERVICE PART

$11.99

$

In Stock, Qty 20+

0

21

Gravely 04794500

HARNESS, WIRE - 2015 ZOOM/ZT

Note: IF YOU HAVE THE 5 WAY CONNECTOR, IT MATES WITH 03290500 IGNITION SWITCH (NOT SHOWN)

$92.99

$

Usually ships in 4-12 days

0

21

Gravely 04974400

HARNESS, WIRE-4POS KEY IKON/ZT
(Superseded to 05295600)

Note: IF YOU HAVE THE 7 WAY CONNECTOR, IT MATES WITH 04974300 IGNITION SWITCH (NOT SHOWN)

$102.99

$

Usually ships in 4-12 days

0
