915230 (ZTX 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 040000 - 074999) Fuel System - Non-CARB Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

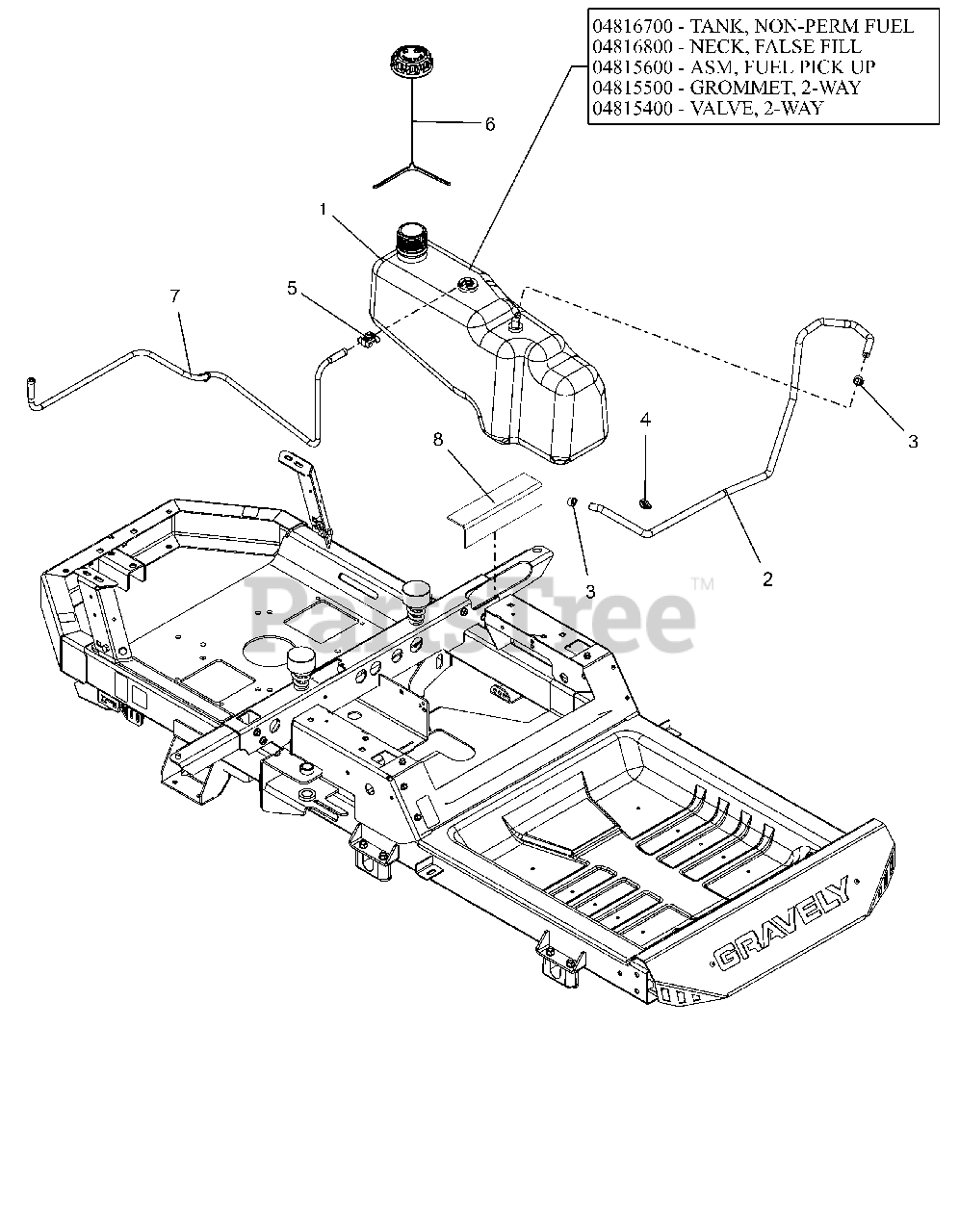

Fuel System - Non-CARB Parts Diagram

  • Title

1

Gravely 04751200

ASM,TANK NON-PERM FUEL
(Superseded to 05244600)

$176.99

$

Usually ships in 4-12 days

0

1

Gravely 04816700

TANK, ZOOM/ZT NON-PERM, FUEL

Note: SERVICE PART

$

$

Not available

1

Gravely 04816800

NECK, FALSE FILL ZOOM/ZT

Note: SERVICE PART

$

$

Not available

1

Gravely 04815600

ASM, FUEL PICK-UP ZOOM/ZT 2015

Note: SERVICE PART

$37.99

$

Usually ships in 4-12 days

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

1

Gravely 04815400

VALVE, 2-WAY

Note: SERVICE PART

$19.99

$

In Stock, Qty 5

0

2

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: 35.00"

$0.99

$

In Stock, Qty 20+

0

3

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

4

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

5

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 04977200

LINE, FUEL VENT KOHLER SMCHOKE

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 04864600

PAD, RUBBER-TANK

$5.99

$

Usually ships in 4-12 days

0
