915234 (ZT 50) - Gravely 50" Zero-Turn Mower, 23hp Kohler Twin, CARB (SN: 000101 & Above) Mower Deck, Belt And Idlers - 42" And 50" Parts Diagram

50" Zero-Turn Mower, 23hp Kohler Twin, CARB

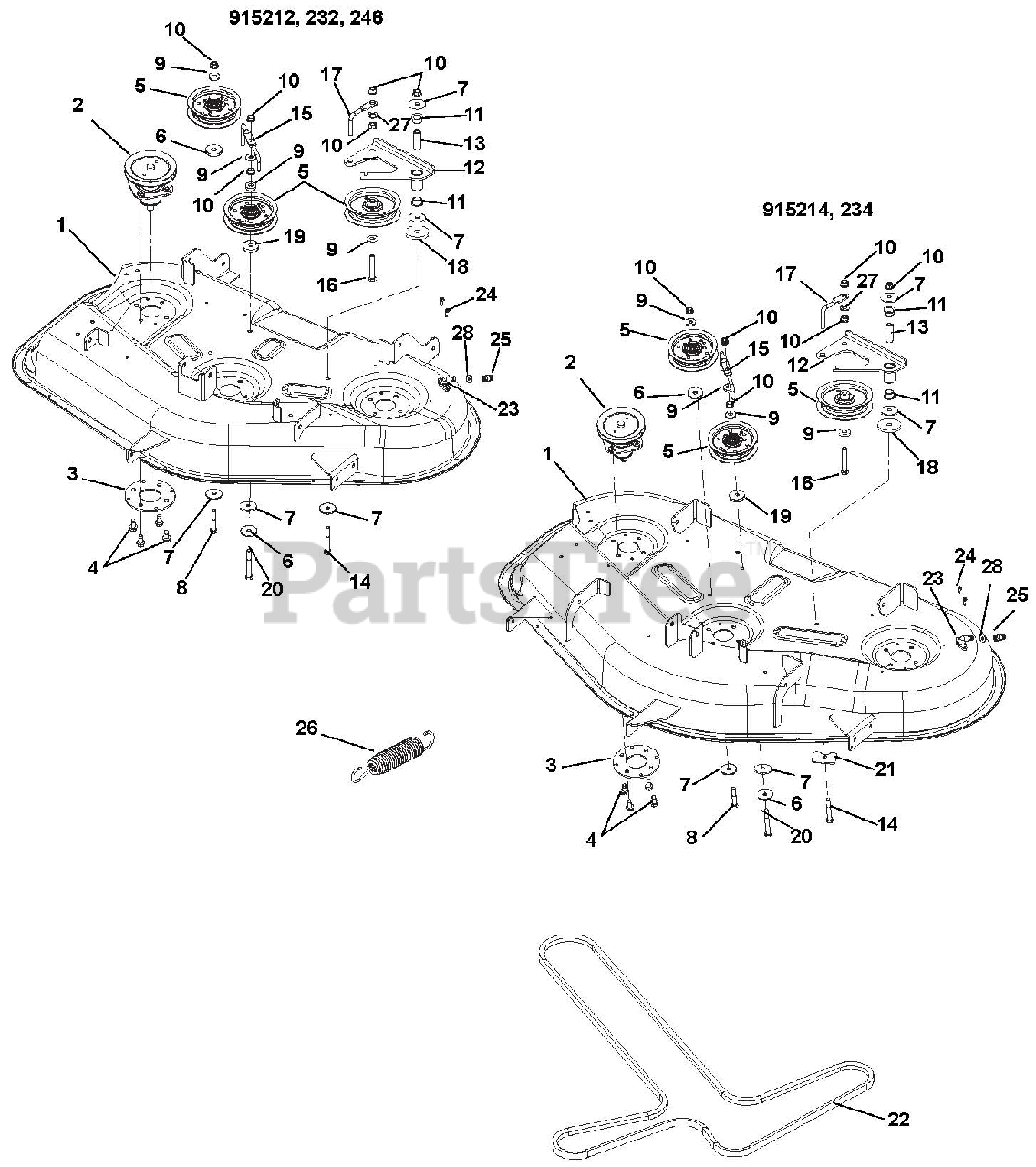

Mower Deck, Belt And Idlers - 42" And 50" Parts Diagram

  • Title

1

Gravely 51523800

KIT,42" GRAVELY COMPLETE DECK

Note: (915212, 232, 246)

$1081.99

$

Usually ships in 4-12 days

0

1

Gravely 51526400

KIT, 42" GRAVELY DECK W/DECALS

Note: (915212, 232, 246)

$659.99

$

Usually ships in 4-12 days

0

1

Gravely 51523900

KIT,GRAVELY 50" COMPLETE DECK

Note: (915214, 234)

$1494.99

$

Usually ships in 4-12 days

0

1

Gravely 51525100

KIT, 50" GRAVELY DECK W/DECALS

Note: (915214, 234)

$923.99

$

Usually ships in 4-12 days

0

2

Gravely 51520900

KIT, DECK SPINDLE ASM (42)

Note: (915212, 232, 246)

$170.99

$

In Stock, Qty 11

0

2

Gravely 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (915214, 234)

$159.99

$

In Stock, Qty 10

0

3

Gravely 03839053

PLATE-REINF, SPINDLE

$23.99

$

In Stock, only 3 left!

0

4

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

6

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

Note: (915212, 232, 246)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

Note: (915214, 234)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$6.99

$

In Stock, Qty 20+

0

12

Gravely 04430867

IDLER ARM
(Superseded to 04430851)

$58.99

$

Usually ships in 4-12 days

0

13

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$4.99

$

In Stock, Qty 15

0

14

Gravely 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

15

Gravely 03974153

WIREFORM, BELT FINGER
(Superseded to 03974100)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 03828853

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.99

$

In Stock, Qty 11

0

18

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

19

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 04061053

PLATE-DECK REINF.

Note: (915214, 234)

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 07200523

V-BELT, 4L-WRAPPED

Note: (915212, 232, 246)

$72.99

$

In Stock, Qty 20+

0

22

Gravely 07200524

V-BELT, 4L-WRAPPED

Note: (915214, 234)

$87.99

$

In Stock, only 2 left!

0

23

Gravely 04428900

ASSY, WASHOUT PORT W/ O-RING

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 07400103

@SCR-TAP .25-20X.62 HWH TR YWZ
(Superseded to 07400135)

$2.99

$

In Stock, only 1 left!

0

25

Gravely 04396500

COUPLING, QUICK DISCONNECT

$23.99

$

In Stock, only 2 left!

0

26

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$19.99

$

In Stock, Qty 8

0

27

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05600513

O-RING .362X.103X.568

$6.99

$

Usually ships in 4-12 days

0
