915237 - Ariens Ikon-XL 42" Zero-Turn Mower, 22hp Kohler Twin, CARB (SN: 045000 & Above) Seat (05176100) Parts Diagram

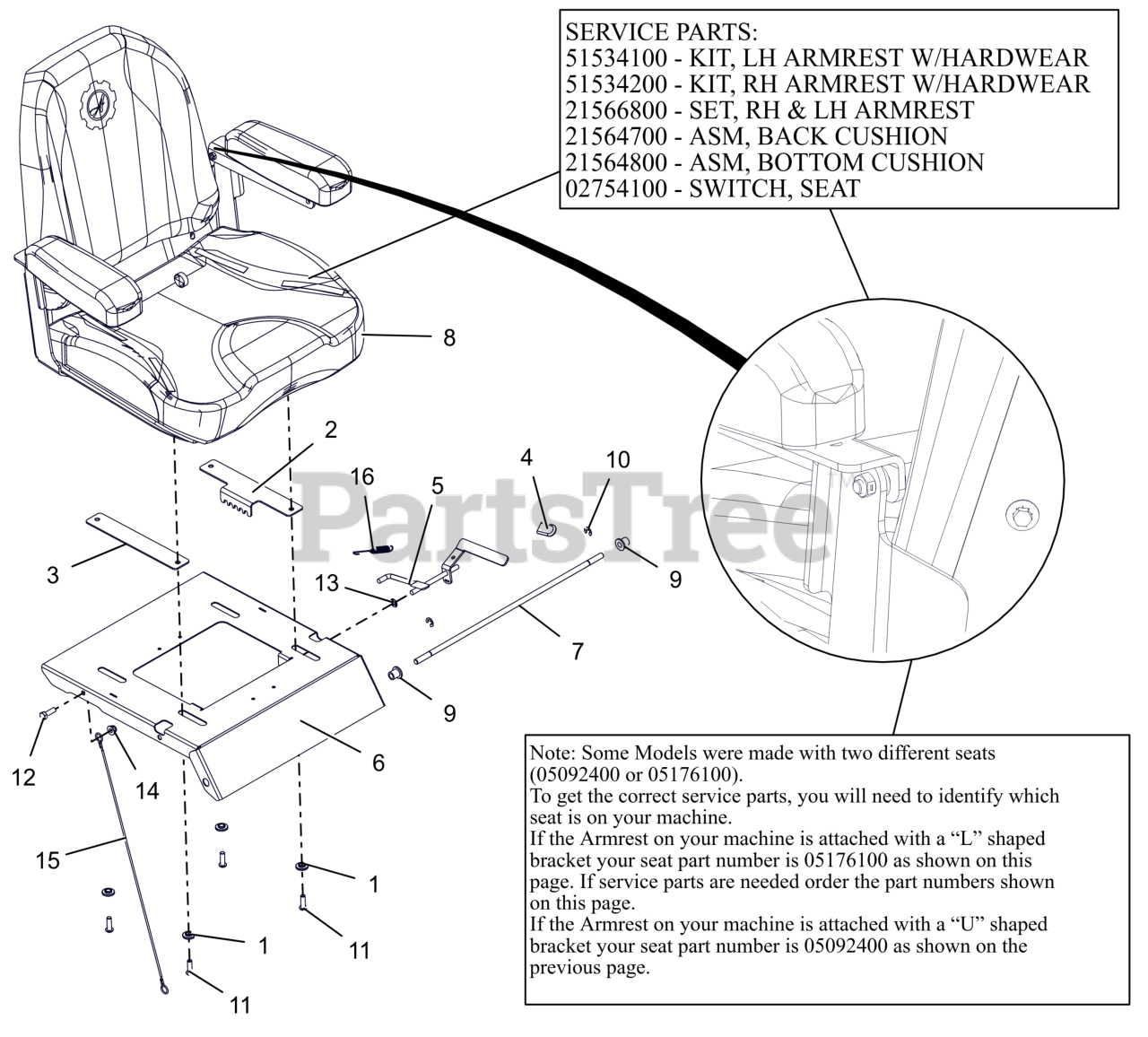

Ikon-XL 42" Zero-Turn Mower, 22hp Kohler Twin, CARB

Seat (05176100) Parts Diagram

  • Title

1

Ariens 05501328

BSHG, FLG .312X.499X.23X.88

$2.49

$

In Stock, Qty 5

0

2

Ariens 04376951

PLATE, ADJUSTABLE SEAT TRACK

$14.99

$

In Stock, only 1 left!

0

3

Ariens 04377051

PLATE, ADJUSTABLE SEAT SLIDE

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 04396600

GRIP, SEAT LEVER, GREY

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 04756451

WLDMT, ADJUSTABLE SEAT LATCH

$27.99

$

Usually ships in 4-12 days

0

6

Ariens 04757059

PLATE, SEAT

$69.99

$

Usually ships in 4-12 days

0

7

Ariens 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$12.99

$

Usually ships in 4-12 days

0

8

Ariens 05176100

SEAT, IKON XL

$607.99

$

Usually ships in 4-12 days

0

8

Ariens 51534100

KIT, ARMREST LH W/HDWR

Note: SERVICE PART

$113.99

$

Usually ships in 4-12 days

0

8

Ariens 51534200

KIT, ARMREST RH W/HDWR

Note: SERVICE PART

$113.99

$

Usually ships in 4-12 days

0

8

Ariens 21566800

SET, LH & RH ARMREST

Note: SERVICE PART

$117.99

$

Usually ships in 4-12 days

0

8

Ariens 21564700

ASM, BACK CUSHION-ARIENS X

Note: SERVICE PART

$158.99

$

Usually ships in 4-12 days

0

8

Ariens 21564800

ASM, BOTTOM CUSHION-ARIENS X

Note: SERVICE PART

$237.99

$

Usually ships in 4-12 days

0

8

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.99

$

In Stock, Qty 20+

0

9

Ariens 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

10

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.99

$

In Stock, Qty 17

0

12

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 10

0

13

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

16

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 20+

0
