915241 - Ariens Ikon-XL 60" Zero-Turn Mower, Kawasaki FR, CARB (SN: 045000 & Above) Engine - Kawasaki FR730 Parts Diagram

Ikon-XL 60" Zero-Turn Mower, Kawasaki FR, CARB

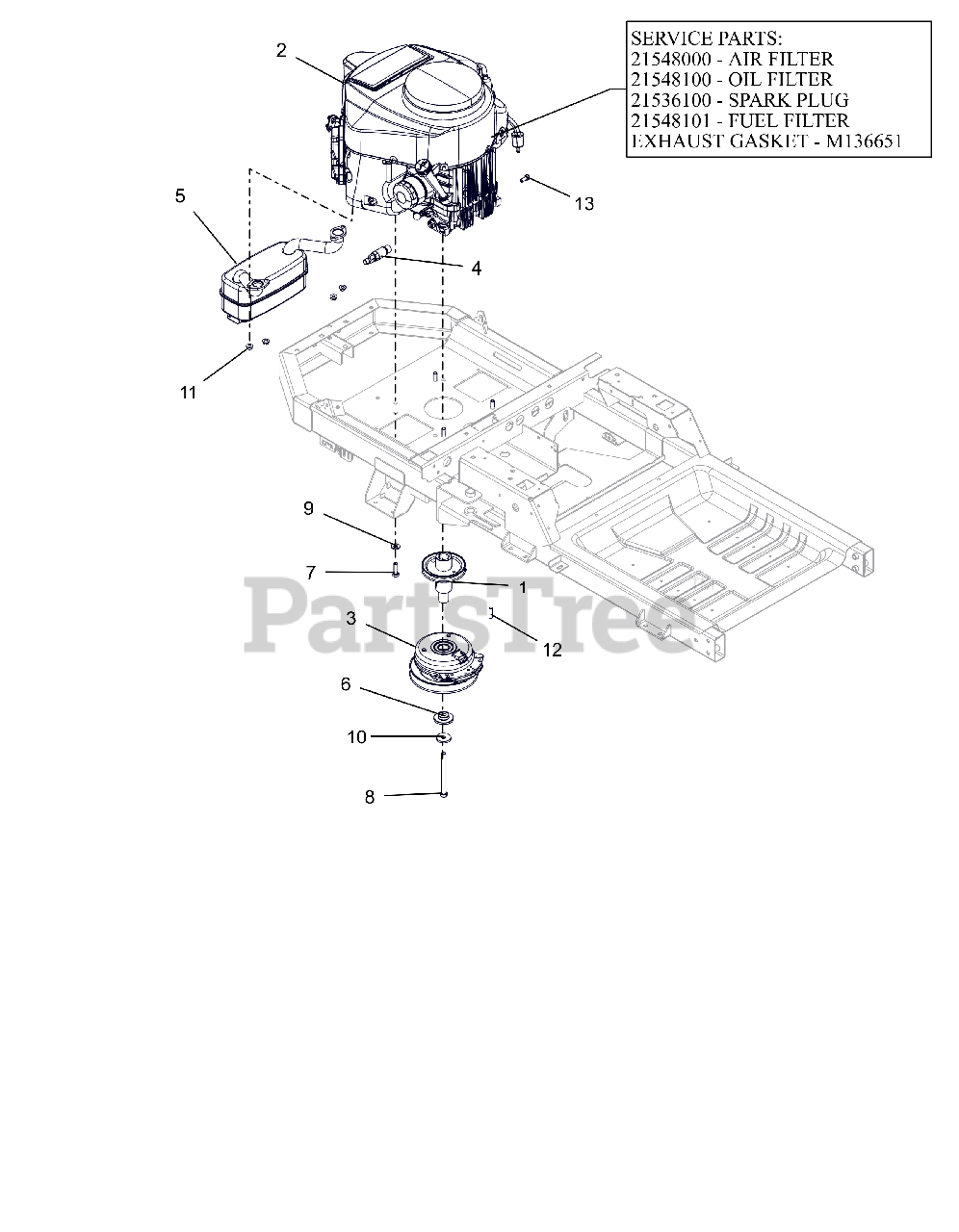

Engine - Kawasaki FR730 Parts Diagram

  • Title

1

Ariens 07345000

WLDMT, DRIVE SHEAVE (LG XL)CZC

$65.99

$

Usually ships in 4-12 days

0

2

Ariens 08201129

ENGINE, KAWASAKI FR730 24HP

$

$

Not available

2

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

2

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

2

Ariens 21536100

PLUG, SPARK

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Ariens 21548101

FUEL FILTER-KAWASAKI FR
(Superseded to 21573800)

Note: SERVICE PART

$15.99

$

Usually ships in 4-12 days

0

2

Ariens M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: SERVICE PART

$8.49

$

In Stock, Qty 17

0

3

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$263.99

$

In Stock, Qty 5

0

4

Ariens 04977100

DRAIN, OIL M20X2.5

$15.99

$

In Stock, Qty 11

0

5

Ariens 05088300

MUFFLER - KAWASAKI

$112.99

$

In Stock, only 2 left!

0

6

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 4 left!

0

7

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

In Stock, Qty 5

0

8

Ariens 05901606

BLT-HEX.438-20X5 GR8 YZ NYTORQ
(Superseded to 05901823)

$7.49

$

In Stock, Qty 10

0

9

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

In Stock, only 3 left!

0

10

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 2 left!

0

11

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, only 1 left!

0

12

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 7

0

13

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0
