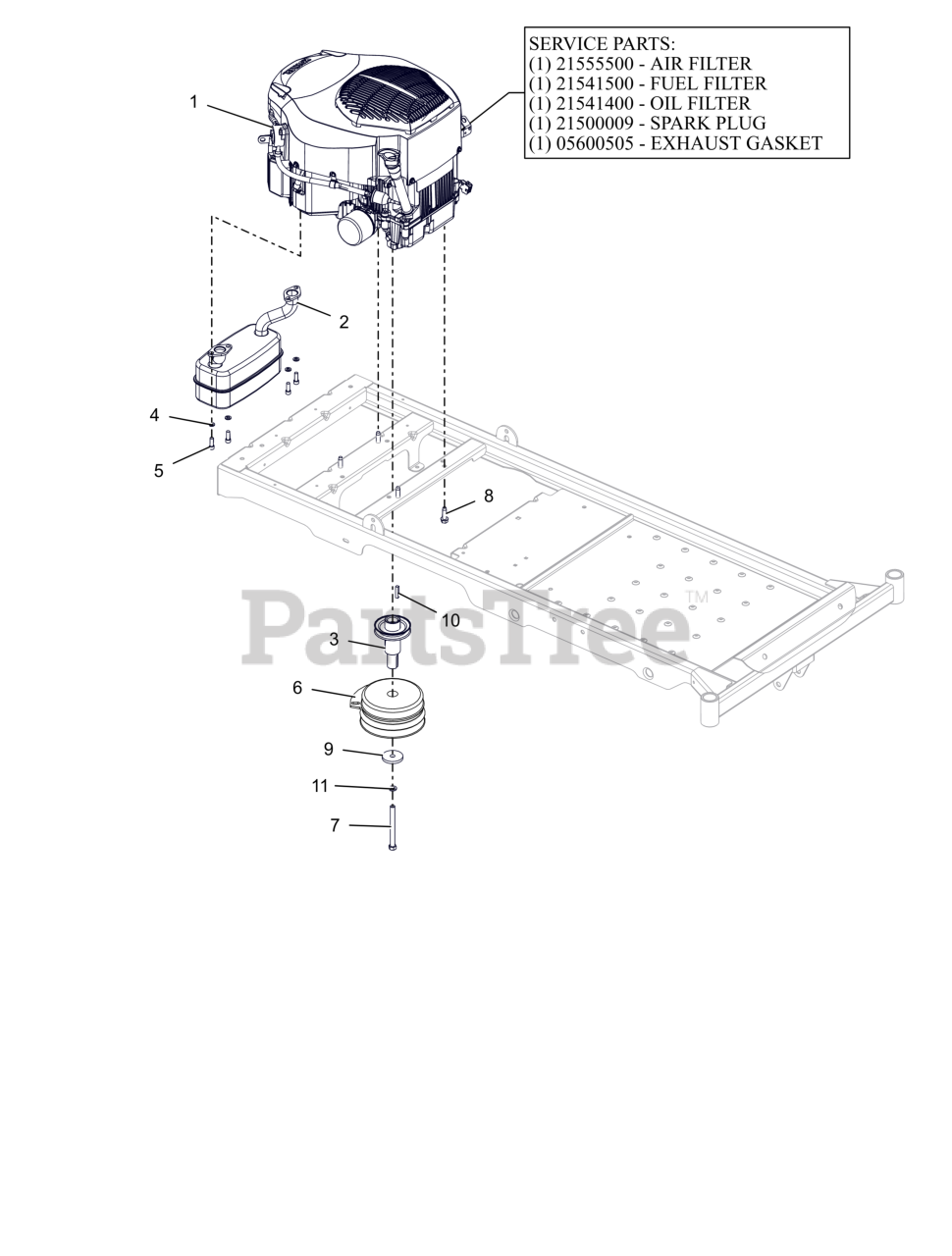

915243 - Ariens Edge 34" Zero-Turn Mower, 19hp Kohler (SN: 000101 - 001999) Engine - Kohler KT 7000 Parts Diagram

Edge 34" Zero-Turn Mower, 19hp Kohler

Engine - Kohler KT 7000 Parts Diagram

  • Title

1

Ariens 08201125

ENGINE, KOHLER TWIN 19 HP

$

$

Not available

1

Ariens 21555500

AIR CLEANER, KOHLER

Note: Service Component Part

$22.99

$

In Stock, Qty 5

0

1

Ariens 21541500

FILTER, FUEL

Note: Service Component Part

$8.99

$

In Stock, Qty 20+

0

1

Ariens 21541400

FILTER, ENGINE OIL (COURAGE)
(Superseded to 21397200)

Note: Service Component Part

$17.99

$

In Stock, only 4 left!

0

1

Ariens 21500009

PLUG, SPARK KOHLER

Note: Service Component Part

$10.99

$

Usually ships in 4-12 days

0

1

Ariens 05600505

GASKET, MUFFLER COURAGE TWIN

Note: Service Component Part

$9.99

$

Usually ships in 4-12 days

0

2

Ariens 04749600

MUFFLER, KOHLER TWIN

$71.99

$

Usually ships in 4-12 days

0

3

Ariens 07338600

WLDMT, CRANKSHAFT EXTENSION

$85.99

$

Usually ships in 4-12 days

0

4

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

Usually ships in 4-12 days

0

7

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 2 left!

0

9

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 18

0

10

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, only 1 left!

0
