915243 - Ariens Edge 34" Zero-Turn Mower, 19hp Kohler (SN: 000101 - 001999) Fuel System Parts Diagram

Edge 34" Zero-Turn Mower, 19hp Kohler

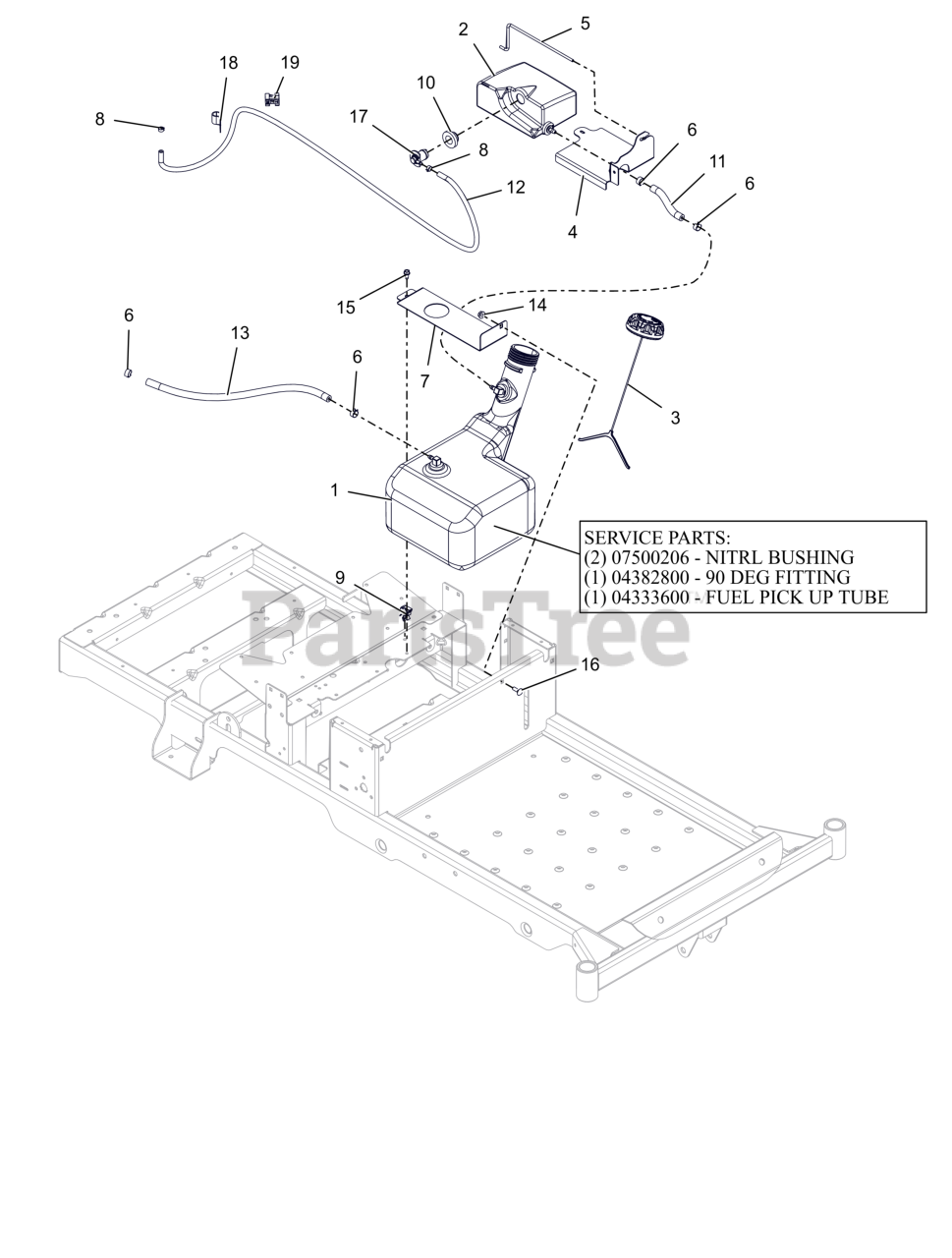

Fuel System Parts Diagram

  • Title

1

Ariens 05244700

ASM, FUEL TANK-ZOOM

$162.99

$

Usually ships in 4-12 days

0

1

Ariens 07500206

BSHG-FLG .375X1.062X.625 NITR

Note: Service Part Component

$2.49

$

In Stock, only 2 left!

0

1

Ariens 04382800

FITTING, 90 DEG FUEL-PLASTIC

Note: Service Part Component

$5.99

$

In Stock, only 1 left!

0

1

Ariens 04333600

FUEL PICK UP TUBE

Note: Service Part Component

$15.99

$

In Stock, Qty 5

0

2

Ariens 05244800

ASM, FUEL TANK - EXPANSION

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$23.99

$

In Stock, only 1 left!

0

4

Ariens 05288559

BRKT, EXPANSION TANK (ORANGE)

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 05288651

ROD, HOLDDOWN (BLACK)

$

$

Currently unavailable

6

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

7

Ariens 03771451

BRKT, TANK STRAP

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

11

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 04815400

VALVE, 2-WAY

$19.99

$

In Stock, only 4 left!

0

18

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0
