915245 - Ariens Edge 42" Zero-Turn Mower, 19hp Kohler (SN: 002000 & Above) Front and Rear Wheels - 42" and 52" Parts Diagram

Edge 42" Zero-Turn Mower, 19hp Kohler

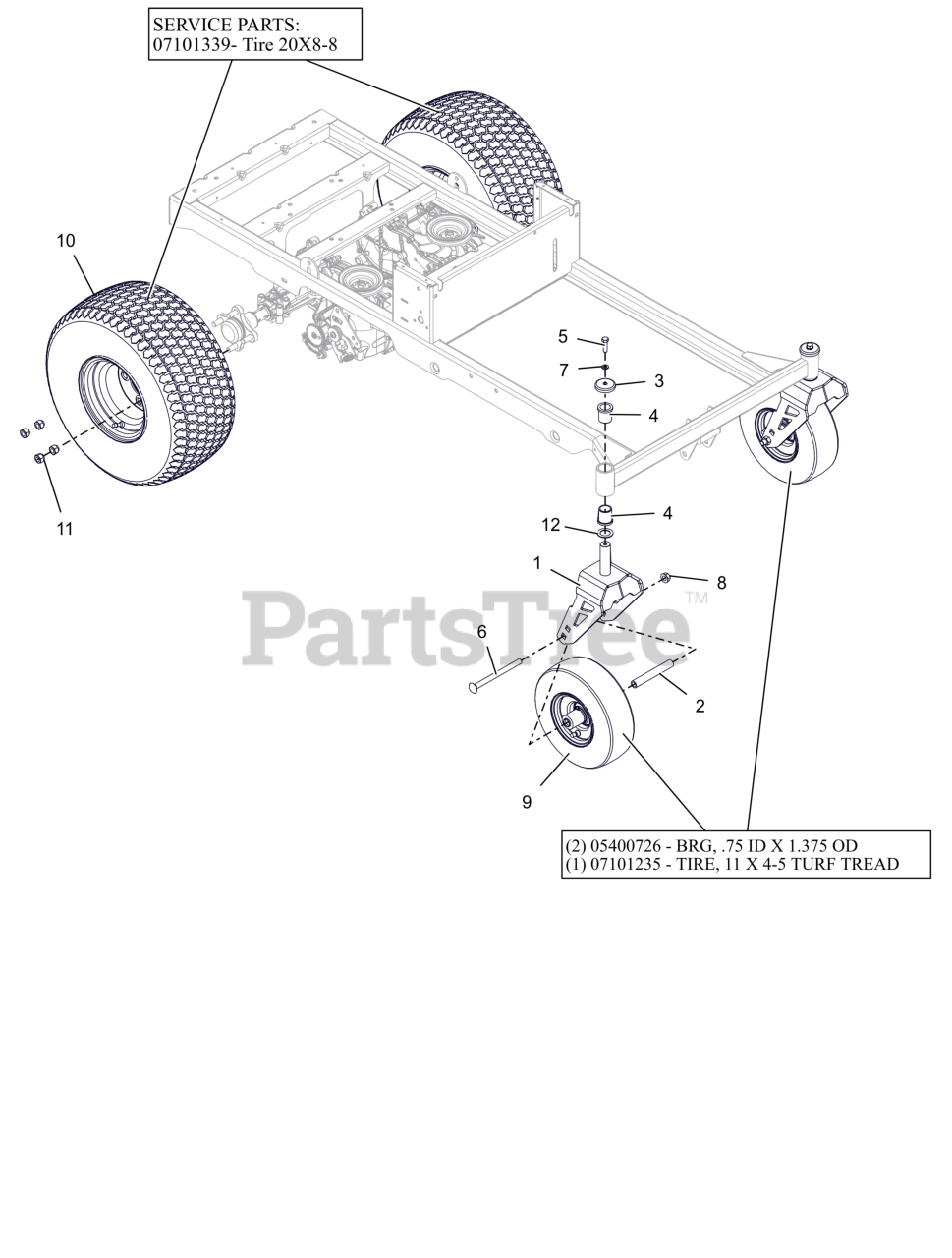

Front and Rear Wheels - 42" and 52" Parts Diagram

  • Title

1

Ariens 05295759

WLDMT, CASTER FORK-XD (ORANGE)

$150.99

$

Usually ships in 4-12 days

0

2

Ariens 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

3

Ariens 05290100

SHIELD, AXLE BEARING

$5.49

$

Usually ships in 4-12 days

0

4

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

5

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 17

0

6

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$13.99

$

In Stock, Qty 14

0

7

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 19

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$93.99

$

In Stock, Qty 20+

0

9

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

9

Ariens 07101235

LAWN TIRE FRONT, 11/4-5 TURF TREAD

Note: Component Service Part

$51.99

$

In Stock, Qty 13

0

9

Ariens 07108600

TIRE TUBE, 11/4.0-5 4 PLY TR87 90 BENT VALVE

Note: Component Service Part

$12.99

$

In Stock, Qty 8

0

10

Ariens 07101334

ASSM TIRE\WHEEL, 20 X 8 -8

$151.99

$

Usually ships in 4-12 days

0

10

Ariens 07101339

LAWN TIRE REAR, 4 PLY K505 20/8.00-8

Note: Component Service Part

$84.99

$

In Stock, only 1 left!

0

10

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Component Service Part

$36.99

$

Usually ships in 4-12 days

0

11

Ariens 06500926

NUT, WHEEL .50-20 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0
