915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 085000 & Above) Frame Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

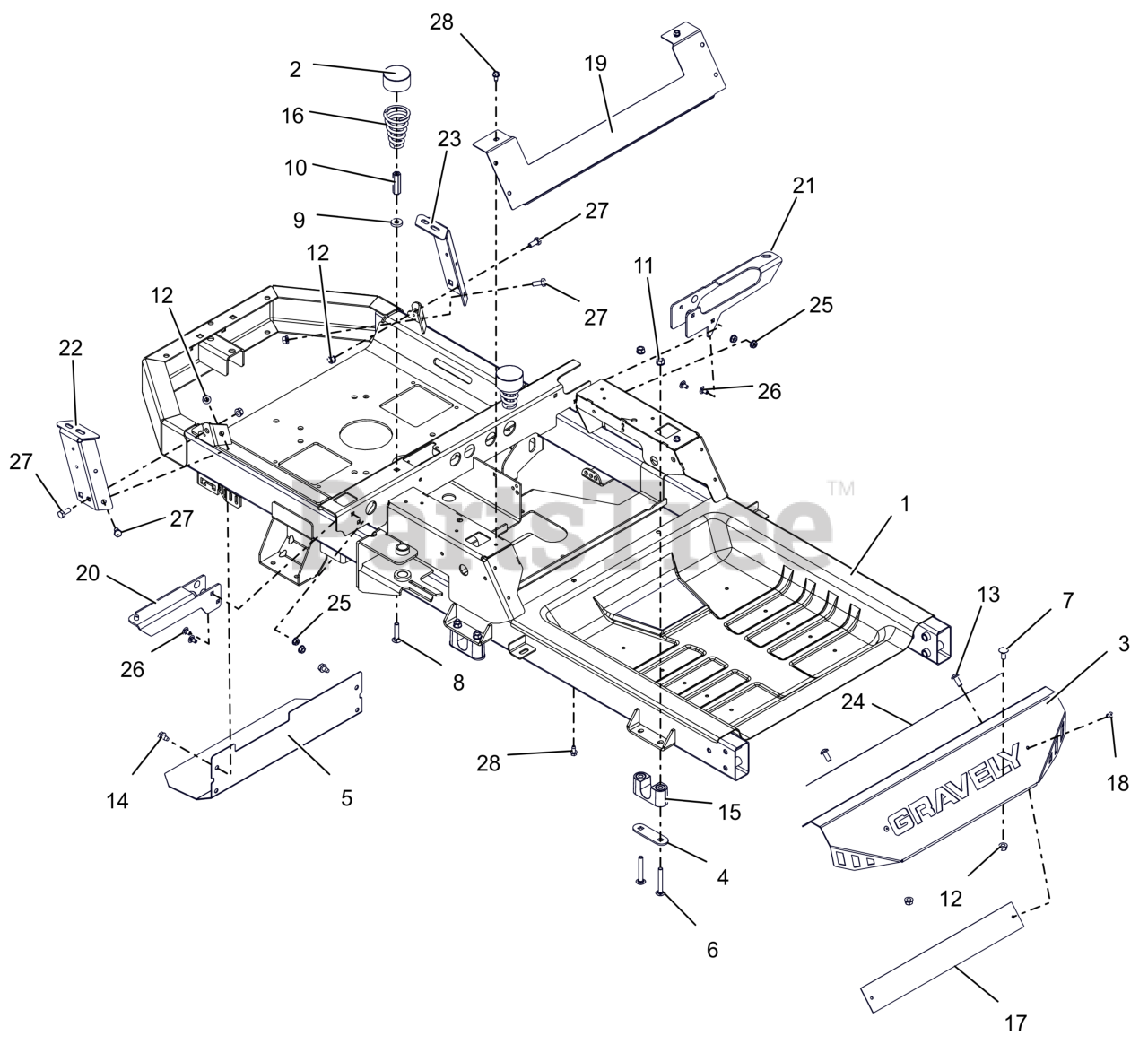

Frame Parts Diagram

  • Title

1

Gravely 51531700

KIT, ZT-X/XL FRAME SERVICE

$830.99

$

Usually ships in 4-12 days

0

2

Gravely 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

3

Gravely 51527600

KIT, FOOTPLATE W/DECAL-ZTX

$104.99

$

Usually ships in 4-12 days

0

4

Gravely 04766551

PLATE, BEARING SUPPORT

$8.49

$

In Stock, Qty 9

0

5

Gravely 04807951

HEAT, SHIELD

$31.99

$

In Stock, Qty 8

0

6

Gravely 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

7

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 12

0

9

Gravely 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06500927

NUT, COUPLING .31-18X1.75 ZCC

$4.99

$

In Stock, only 1 left!

0

11

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 07400134

SCR-RDHDSKTAP .31-18X.75

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

15

Gravely 07500327

BSHG, DECK LIFT PIVOT

$13.99

$

Usually ships in 4-12 days

0

16

Gravely 08300021

SPRING, SEAT

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 04718451

PLATE, BACK FOOT-REST XL

$8.49

$

Usually ships in 4-12 days

0

18

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 04772353

PLATE, SEAT KICK

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 05077153

BRKT,CROSS EXTENSION - LH

$29.99

$

Usually ships in 4-12 days

0

21

Gravely 05077253

BRKT,CROSS EXTENSTION - RH

$29.99

$

Usually ships in 4-12 days

0

22

Gravely 05077353

MOUNT,FENDER-RH EXTENSION

$38.99

$

Usually ships in 4-12 days

0

23

Gravely 05077453

MOUNT,FENDER-LH EXTENSION

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 05112300

GRIP, FOOT PLATE

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

26

Gravely 06200305

BLT, RHSSN.25-20X.500 G5 ZCC

$1.99

$

In Stock, Qty 13

0

27

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

28

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
