915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 085000 & Above) Rear Tires and Transaxles Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

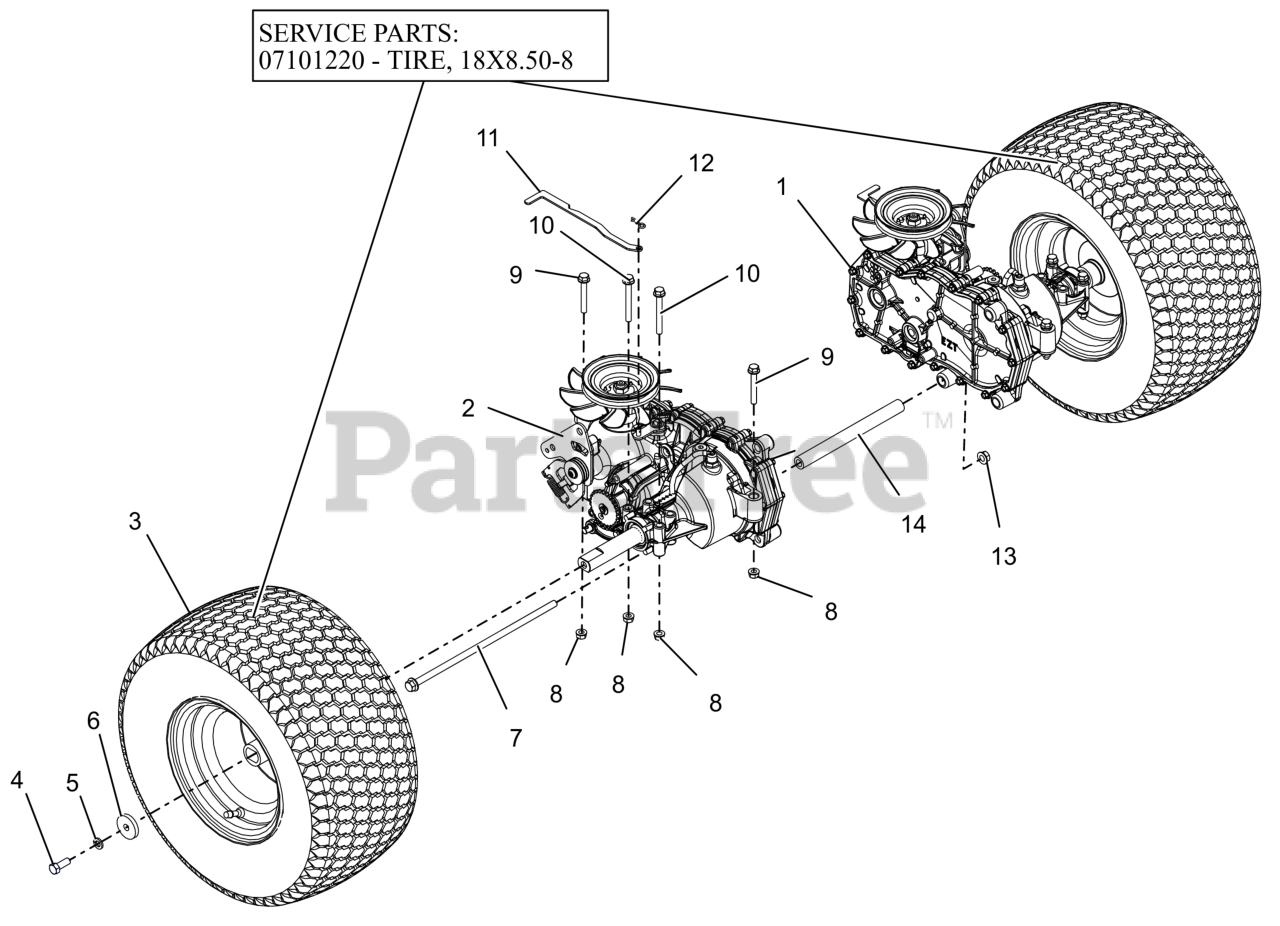

Rear Tires and Transaxles Parts Diagram

  • Title

1

Gravely 05172700

TRANSAXLE, LH EZT D-SHFT SHORT

$1134.99

$

Usually ships in 4-12 days

0

2

Gravely 05172800

TRANSAXLE, RH EZT D-SHFT SHORT

$1134.99

$

Usually ships in 4-12 days

0

3

Gravely 07101130

ASM, WHL/TIRE 18X8.50-8 DHUB

$175.99

$

In Stock, only 3 left!

0

3

Gravely 07101220

TIRE, 18X8.50-8

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

4

Gravely 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 17

0

6

Gravely 06401110

WSHR, FLT .406X1.50X.245 ZCC

$4.99

$

In Stock, Qty 20+

0

7

Gravely 05901902

BLT, HEX-FLG 0.375-16X11.5 GR5 ZC120

$11.99

$

In Stock, only 3 left!

0

8

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901910

BLT,HEX-FLG .31-18X2.25 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05901911

BLT,HEX-FLG .31-18X2.75 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 04884151

BRKT, DUMP VALVE

$15.99

$

In Stock, only 4 left!

0

12

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05162451

SPCR, TRANSAXLE .438 ID X .750 OD X 8.18 (BLACK)

$23.99

$

In Stock, only 3 left!

0
