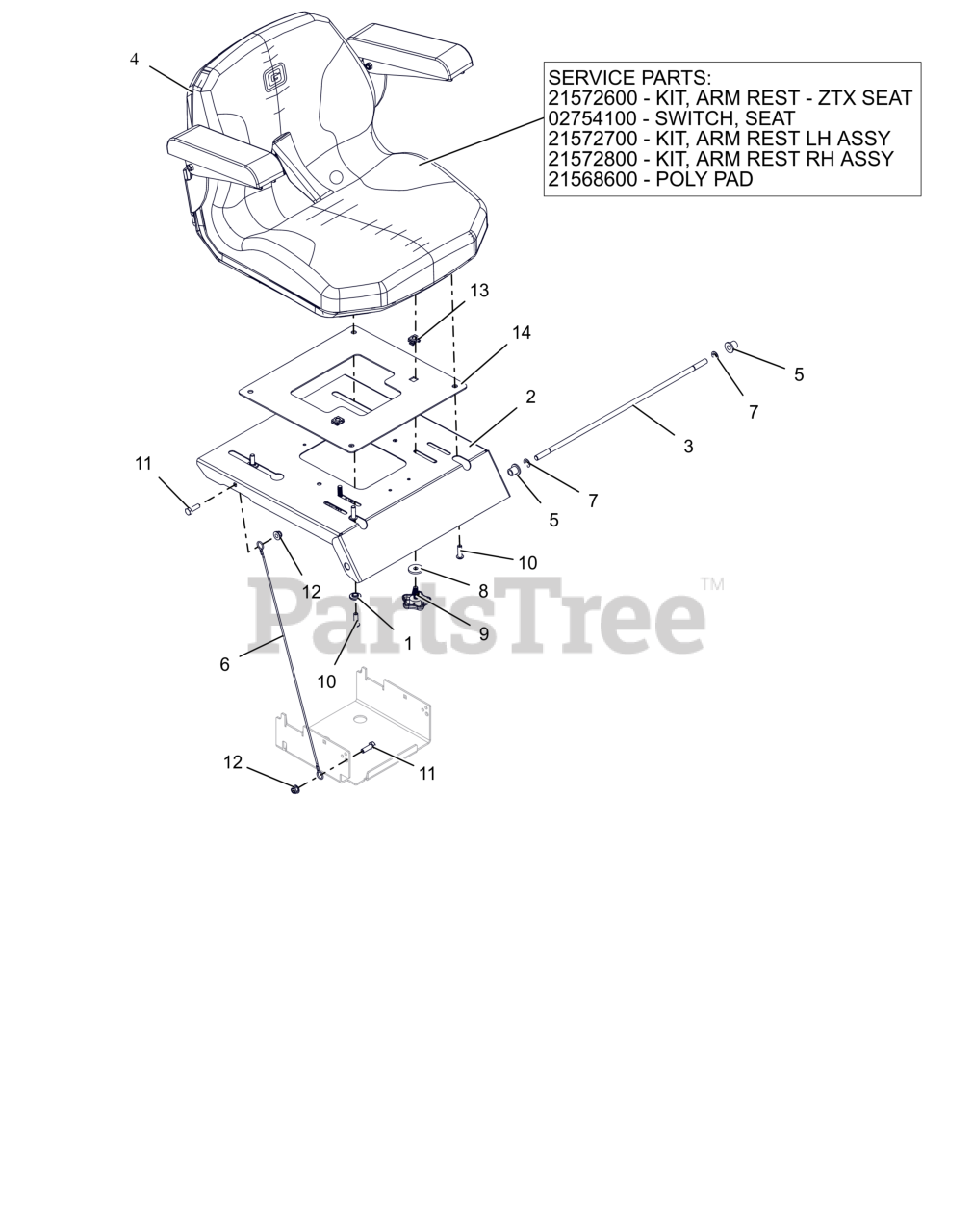

915248 (ZTX 42) - Gravely 42" Zero-Turn Mower, 22hp Kohler (SN: 085000 & Above) Seat Parts Diagram

42" Zero-Turn Mower, 22hp Kohler

Seat Parts Diagram

  • Title

1

Gravely 05501328

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 5

0

2

Gravely 05246953

PLATE, SEAT PLATE (SK100)

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 04816200

ROD, SEAT PIVOT
(Superseded to 09448000)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 05280100

SEAT, ZTX 2019-PADDED ARMS

$395.99

$

Usually ships in 4-12 days

0

4

Gravely 21572600

KIT, ARM REST-ZTX SEAT PADDED
(Superseded to 71508400)

Note: SERVICE PART

$65.99

$

In Stock, only 1 left!

0

4

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: SERVICE PART

$9.99

$

In Stock, Qty 20+

0

4

Gravely 21572700

KIT, ARM REST LH ASSY-PADDED

Note: SERVICE PART

$

$

Currently unavailable

4

Gravely 21572800

KIT, ARM REST RH ASSY-PADDED

Note: SERVICE PART

$

$

Currently unavailable

4

Gravely 21568600

POLY PAD - ZTX SEAT
(Superseded to 71508400)

Note: SERVICE PART

$65.99

$

In Stock, only 1 left!

0

5

Gravely 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

6

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$12.99

$

In Stock, only 3 left!

0

7

Gravely 05710600

RG-RTNG-EXT .375X.035 TYP E

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06401104

WSHR, FLT .340X1.125X.135 ZCC

$4.99

$

In Stock, Qty 15

0

9

Gravely 07500226

KNOB, WING STUDDED

$3.99

$

In Stock, Qty 20+

0

10

Gravely 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.99

$

In Stock, Qty 17

0

11

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

12

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07001827

NUT, RETNR .312-18

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 05250851

PLATE, SEAT ADAPTOR (BLACK)

$47.99

$

Usually ships in 4-12 days
