915251 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 002000 & Above) Front and Rear Wheels 34" Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

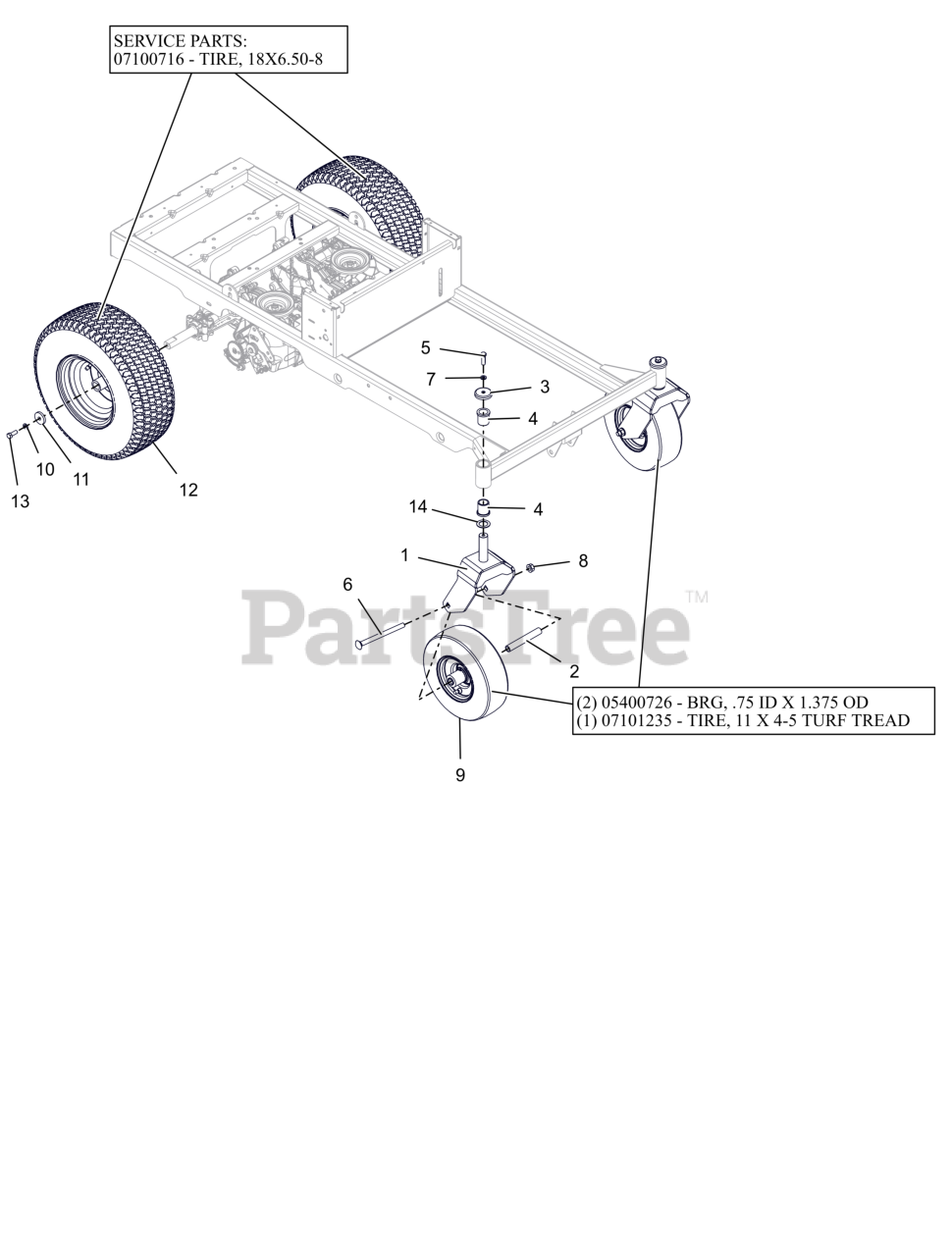

Front and Rear Wheels 34" Parts Diagram

  • Title

1

Ariens 05266159

WLDMT, CASTER FORK-X (ORANGE)

$82.99

$

Usually ships in 4-12 days

0

2

Ariens 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

3

Ariens 05290100

SHIELD, AXLE BEARING

$5.49

$

Usually ships in 4-12 days

0

4

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$7.99

$

In Stock, Qty 20+

0

5

Ariens 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.99

$

In Stock, Qty 16

0

6

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$13.99

$

In Stock, Qty 10

0

7

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 18

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$93.99

$

In Stock, Qty 20+

0

9

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Service Component Part

$

$

Not available

9

Ariens 07101235

TIRE, 11X4-5 TURF TREAD

Note: Service Component Part

$51.99

$

In Stock, Qty 13

0

9

Ariens 07108600

TUBE 11 X4.0-5

Note: Optional Service Component Part

$12.99

$

In Stock, Qty 8

0

10

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 18

0

11

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$4.99

$

In Stock, Qty 20+

0

12

Ariens 07101129

ASM, WHL/TIRE 18X6.50-8 DHUB

$150.99

$

Usually ships in 4-12 days

0

12

Ariens 07100716

TIRE, 18X6.5-8

Note: Service Component Part

$75.99

$

Usually ships in 4-12 days

0

13

Ariens 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$2.49

$

In Stock, Qty 20+

0

14

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0
