915278 (ZT XL 48) - Gravely 48" Zero-Turn Mower, 25hp Kohler Pro (SN: 030000 & Above) Deck, Belt, Blades and Spindles - 48" Parts Diagram

48" Zero-Turn Mower, 25hp Kohler Pro

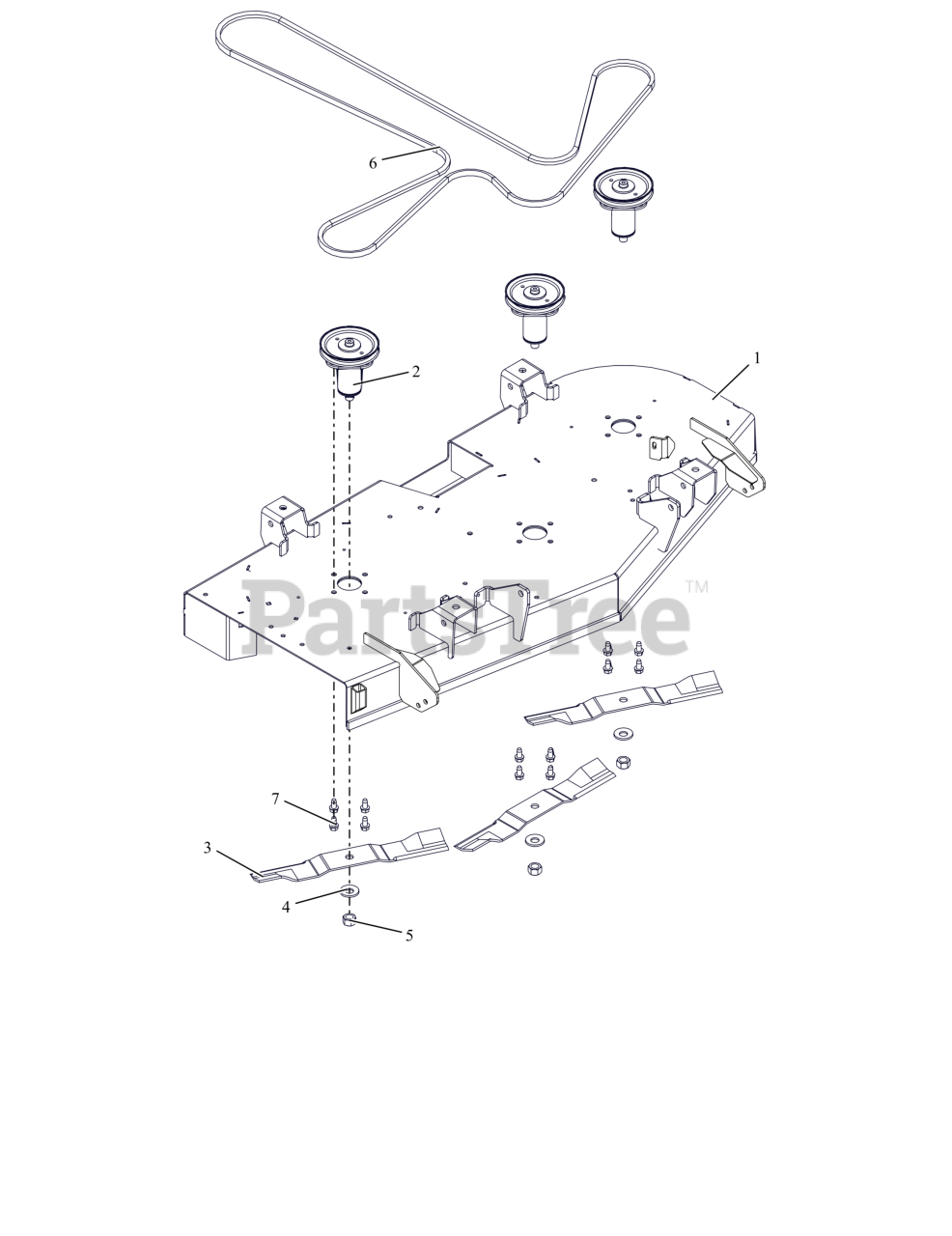

Deck, Belt, Blades and Spindles - 48" Parts Diagram

  • Title

1

Gravely 05280453

WLDMT, DECK 48"

$

$

Currently unavailable

2

Gravely 51534800

ASM, SPINDLE
(Superseded to 51537100)

$159.99

$

Usually ships in 4-12 days

0

3

Gravely 05284800

BLADE, MOWER - 16.19" LG

$26.99

$

In Stock, only 4 left!

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

5

Gravely 06500920

NUT-STD .625-18 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07241600

V-BELT, HA-WRAPPED

$87.99

$

In Stock, only 4 left!

0

7

Gravely 07400129

SCR,TAP .375-16X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0
