915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Controls Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

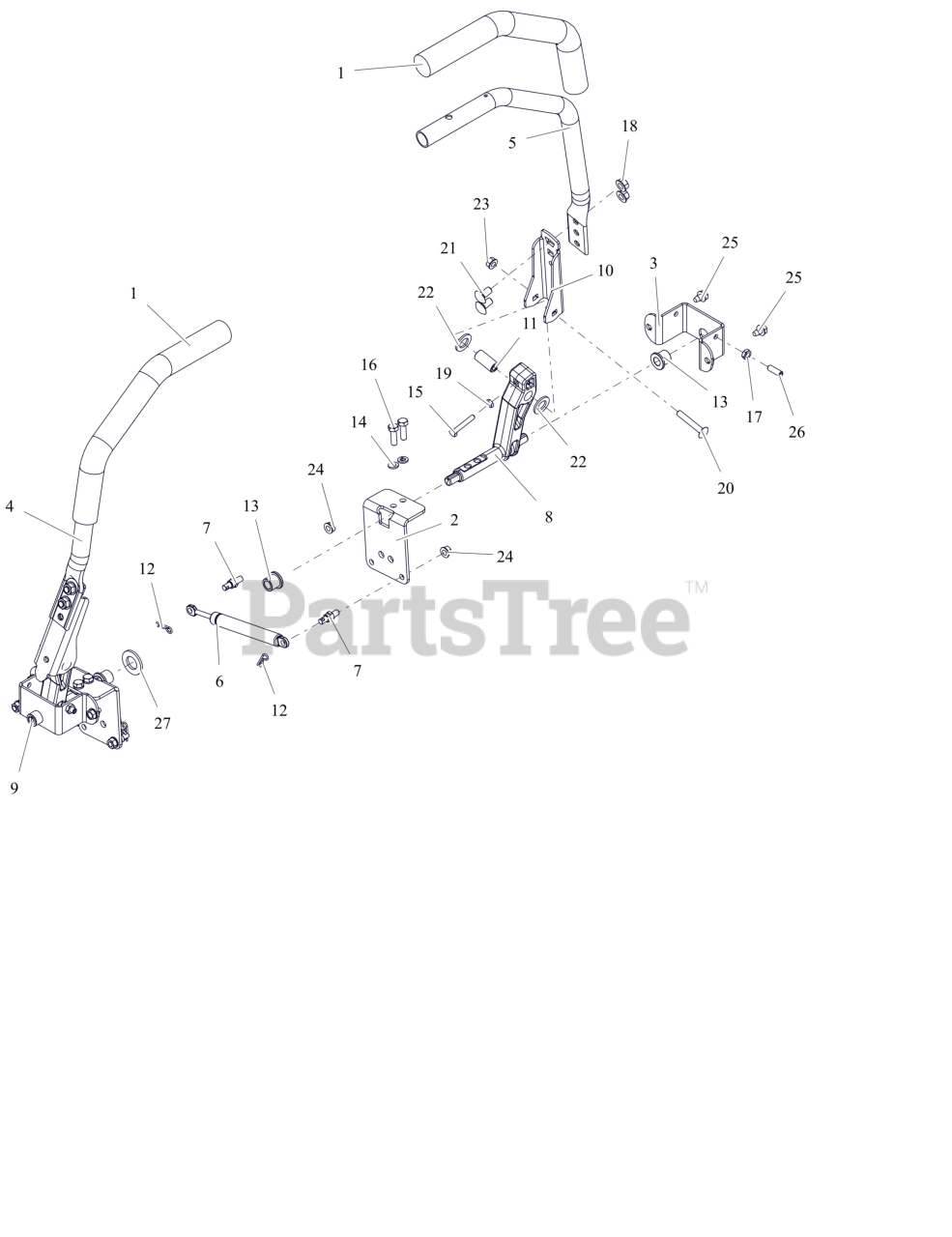

Controls Parts Diagram

  • Title

1

Ariens 04383600

GRIP, HANDLEBAR

$36.99

$

In Stock, Qty 6

0

2

Ariens 04764151

BRKT, STEEERING

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 04990951

BRKT, STEERING

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 05107041

HANDLE- STEERING-RH

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 05107141

HANDLE- STEERING-LH

$56.99

$

Usually ships in 4-12 days

0

6

Ariens 05160400

DAMPER, STRAIGHT MOUNT

$40.99

$

In Stock, Qty 15

0

7

Ariens 05171400

COUPLER, DAMPER MOUNT

$7.49

$

In Stock, only 2 left!

0

8

Ariens 09155500

ARM- STEERING-LH LOWER (MACH)

$41.99

$

In Stock, Qty 20+

0

9

Ariens 09155400

ARM- STEERING-RH LOWER (MACH)

$38.99

$

In Stock, Qty 17

0

10

Ariens 05179641

ARM- CONTROL UPPER

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 05501334

BSHG-SLV .342 X .627 X 1.331

$2.49

$

In Stock, Qty 11

0

12

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05501001

BHSG-FLG .500X.750X.750X.125

$5.49

$

In Stock, Qty 20+

0

14

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05902030

BLT, HEX .25-20X1.50F G5 ZCC

$

$

Not available

16

Ariens 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.99

$

In Stock, only 3 left!

0

17

Ariens 06500909

NUT-JAM .312-18 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06500908

NUT-JAM .250-20 G2 ZCC

$1.49

$

Usually ships in 4-12 days

0

20

Ariens 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$4.99

$

In Stock, only 1 left!

0

22

Ariens 06401130

WSHR, FRICTION

$5.49

$

In Stock, Qty 9

0

23

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

26

Ariens 06100240

SCR-SET, .312-18X1.000

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$1.99

$

In Stock, Qty 16

0
