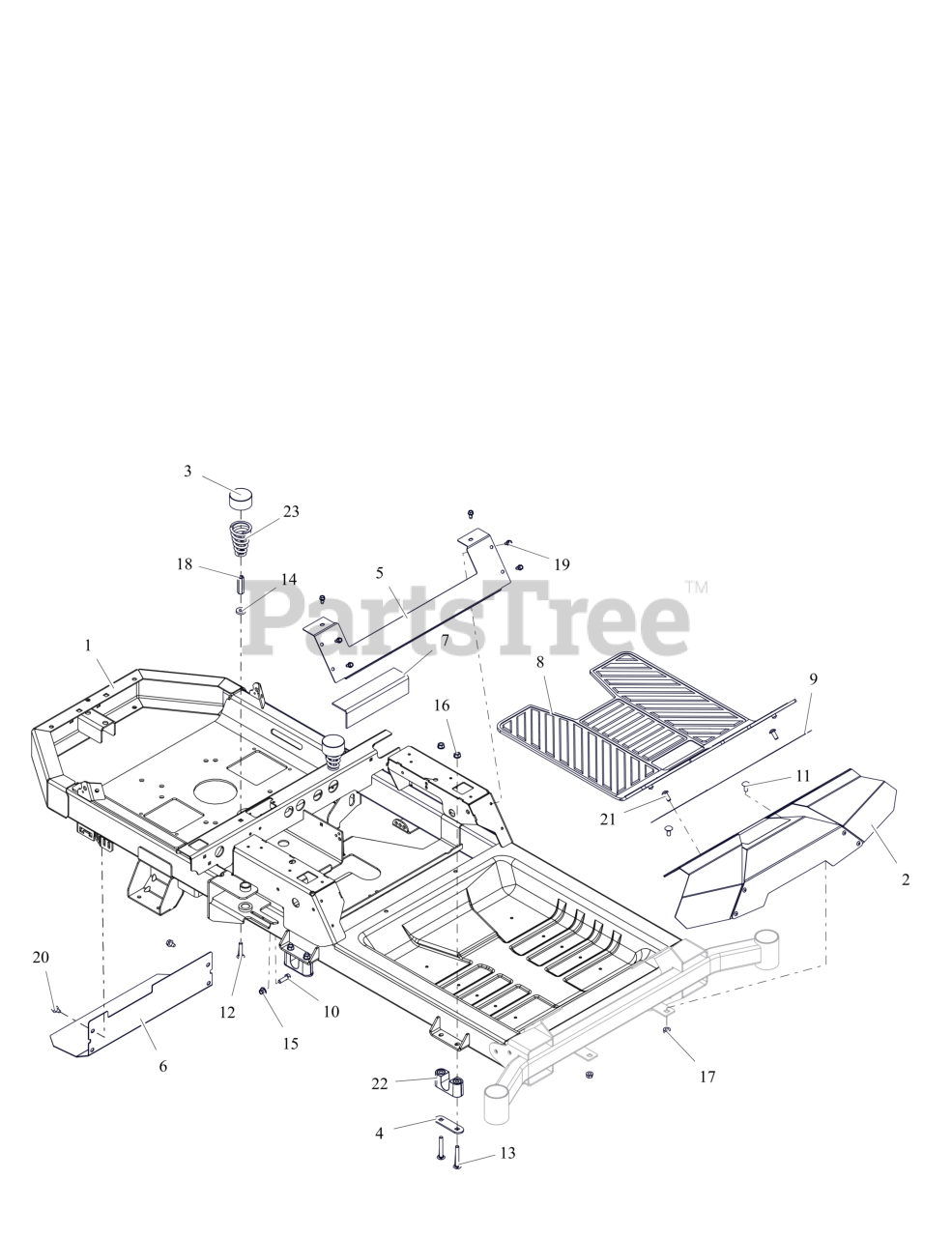

915279 - Ariens Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR (SN: 000101 & Above) Frame Parts Diagram

Ikon Limited 52" Zero-Turn Mower 23hp Kawasaki FR

Frame Parts Diagram

  • Title

1

Ariens 51535000

WLDMT, FRAME IKON XD/ZTX & XL (ORANGE)

$1151.99

$

Usually ships in 4-12 days

0

2

Ariens 51537800

KIT, IKON FOOTREST W/ DECAL

$211.99

$

Usually ships in 4-12 days

0

3

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

4

Ariens 04766551

PLATE, BEARING SUPPORT

$8.49

$

In Stock, Qty 9

0

5

Ariens 04772359

PLATE, SEAT KICK

$35.99

$

Usually ships in 4-12 days

0

6

Ariens 04807951

HEAT, SHIELD

$31.99

$

In Stock, Qty 5

0

7

Ariens 04864600

PAD, RUBBER-TANK

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 05084700

FLOOR MAT

$68.99

$

Usually ships in 4-12 days

0

9

Ariens 05112300

GRIP TAPE, FOOT PLATE

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, Qty 10

0

11

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

12

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.99

$

In Stock, Qty 11

0

13

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

14

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$4.99

$

In Stock, only 1 left!

0

19

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

21

Ariens 07400134

SCR-RDHDSKTAP .31-18X.75 ZCC

$2.99

$

Usually ships in 4-12 days

0

22

Ariens 07500327

BSHG, DECK LIFT PIVOT

$13.99

$

Usually ships in 4-12 days

0

23

Ariens 08300021

SPRING, SEAT

$21.99

$

Usually ships in 4-12 days

0
