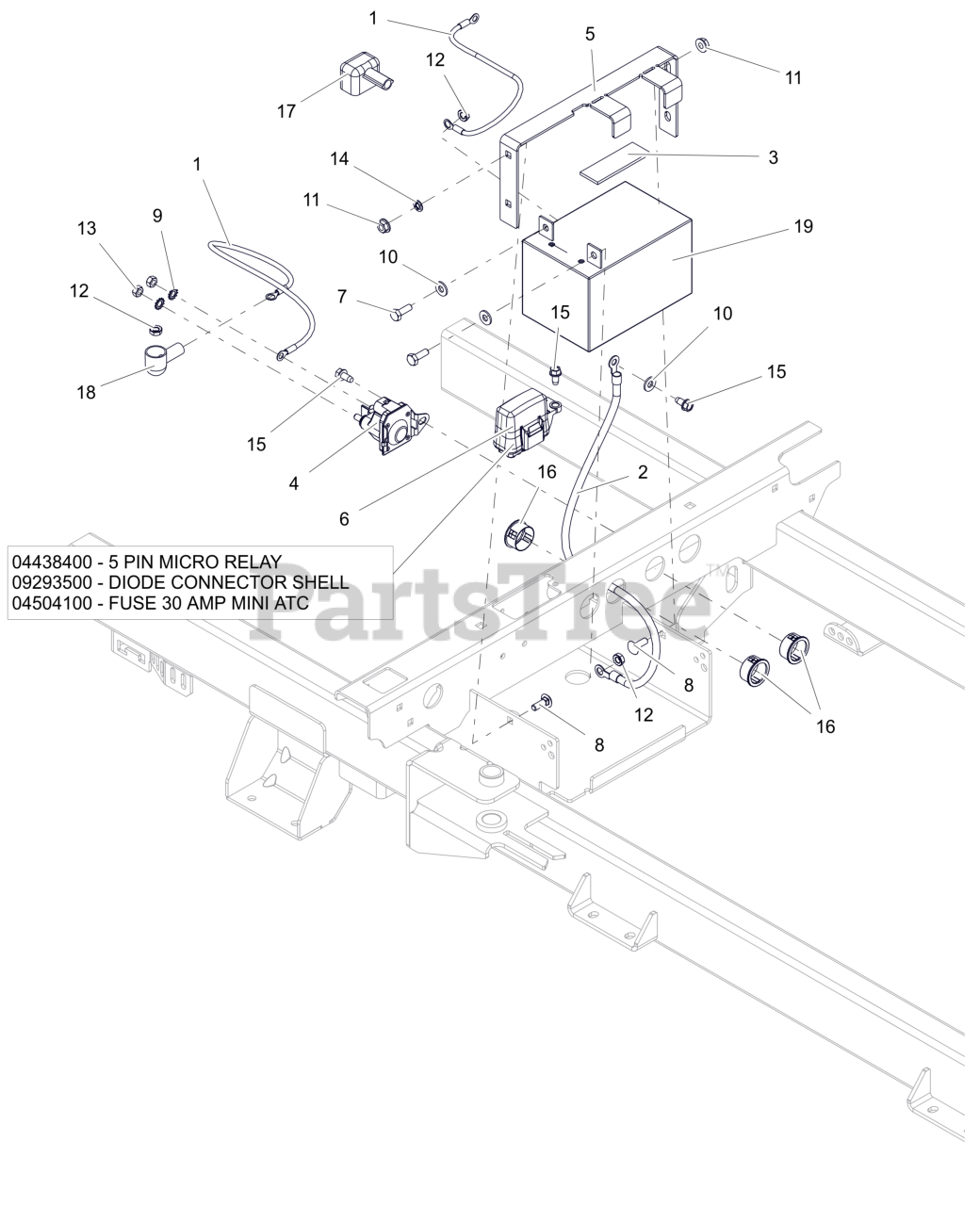

915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Electrical Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

Electrical Parts Diagram

  • Title

1

Gravely 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$20.99

$

In Stock, only 1 left!

0

3

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 05167200

SOLENOID, STARTER (SEALED)

$47.99

$

In Stock, Qty 12

0

5

Gravely 05266251

BRKT, BATTERY HOLD-DOWN (BLACK)
(Superseded to 05266200)

$29.99

$

Usually ships in 4-12 days

0

6

Gravely 05295600

HARNESS, WIRE

$142.99

$

In Stock, only 2 left!

0

1

Gravely 04438400

RELAY,MICRO5 TERML W/RESISTOR

Note: Component Service Part

$21.99

$

In Stock, only 1 left!

0

1

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$13.99

$

In Stock, only 1 left!

0

1

Gravely 04504100

FUSE,30 AMP MINI-ATC

Note: Component Service Part

$6.99

$

In Stock, only 2 left!

0

7

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 5

0

8

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

In Stock, Qty 18

0

9

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, only 4 left!

0

12

Gravely 06500921

NUT-KEPS .250-20 ZCC

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06500925

NUT-STD M6-1.0 ZCC

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, only 4 left!

0

15

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 17

0

16

Gravely 07500308

BSHG, PANEL SNAP .937X1.11X.56

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

18

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, only 2 left!

0

19

Gravely 09425500

BATTERY, 12V 12A -190CCA

$137.99

$

In Stock, only 2 left!

0
