915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Front Caster Wheels Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

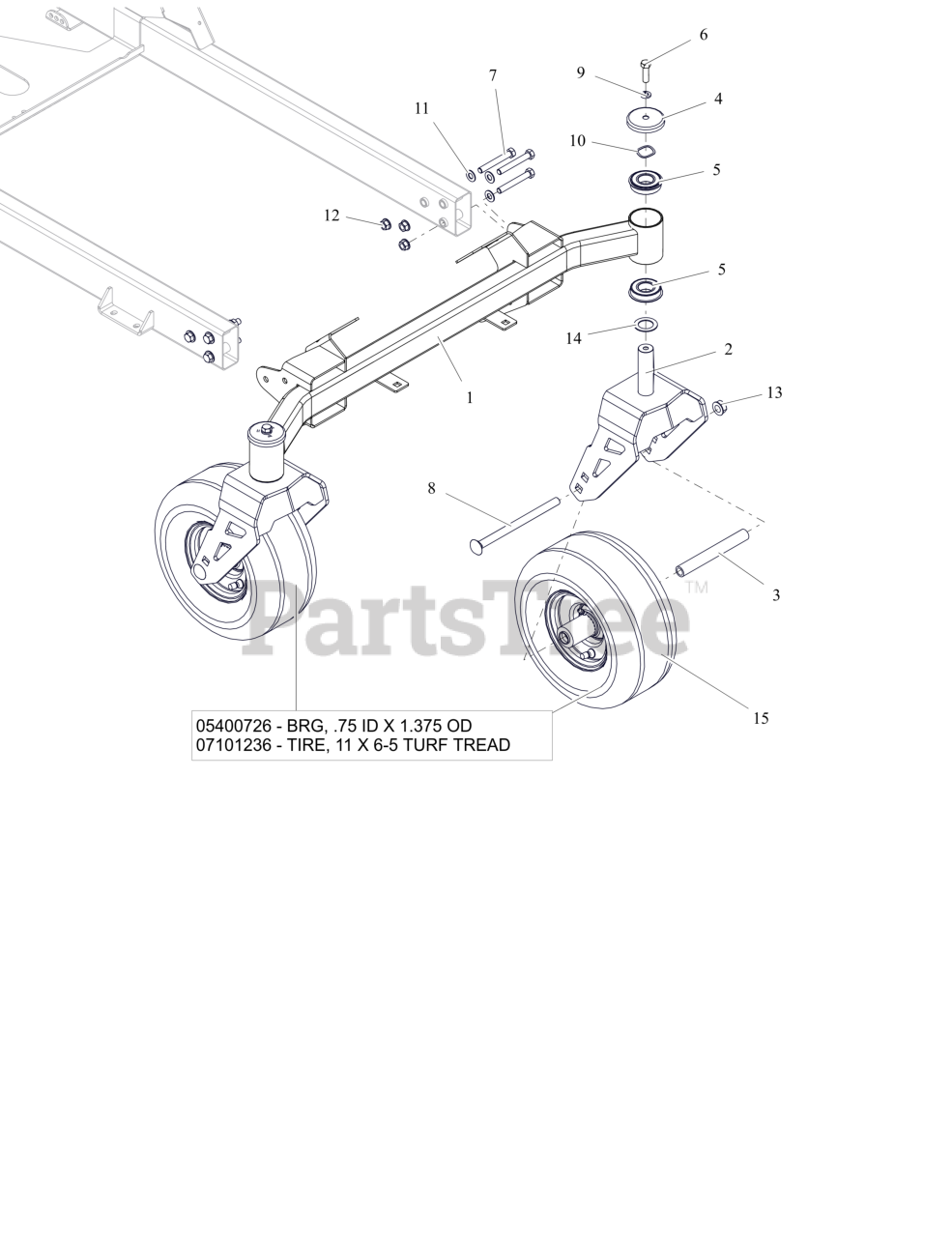

Front Caster Wheels Parts Diagram

  • Title

1

Gravely 05198151

WLDMT- FRONT AXLE

$227.99

$

Usually ships in 4-12 days

0

2

Gravely 05186542

WLDMT- CASTOR FORK

$113.99

$

Usually ships in 4-12 days

0

3

Gravely 00853400

SPACER, FRONT WHEEL (WIDE 6.0)

$13.99

$

In Stock, only 3 left!

0

4

Gravely 05198400

SHIELD, AXLE BEARING

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 10

0

7

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 10

0

8

Gravely 06200320

BLT, RHSN .50-13X7.50 G5 ZCC
(Superseded to 06200509)

$5.99

$

In Stock, only 1 left!

0

9

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 16

0

10

Gravely 06401030

WSHR-WAVE 1.0X1.25X.028 .145FH

$5.99

$

In Stock, Qty 12

0

11

Gravely 06401129

WSHR-FL-STL 0.406X0.812X0.055 HRD

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06500905

NUT-LK-TOP-FLG .375-16 GG ZCC

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06500907

NUT-LK-TOP-FLG .500-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 17

0

15

Gravely 07101423

TIRE/WHEEL ASSY 11X6-5
(Superseded to 07101505)

$79.99

$

In Stock, only 1 left!

0

15

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

15

Gravely 07101236

TIRE, 11X6-5 Smooth

Note: Component Service Part

$67.99

$

Usually ships in 4-12 days
