915281 - Ariens Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Engine - Briggs and Stratton EXI2200 Parts Diagram

Edge 34" Zero-Turn Mower, 20hp Briggs & Stratton

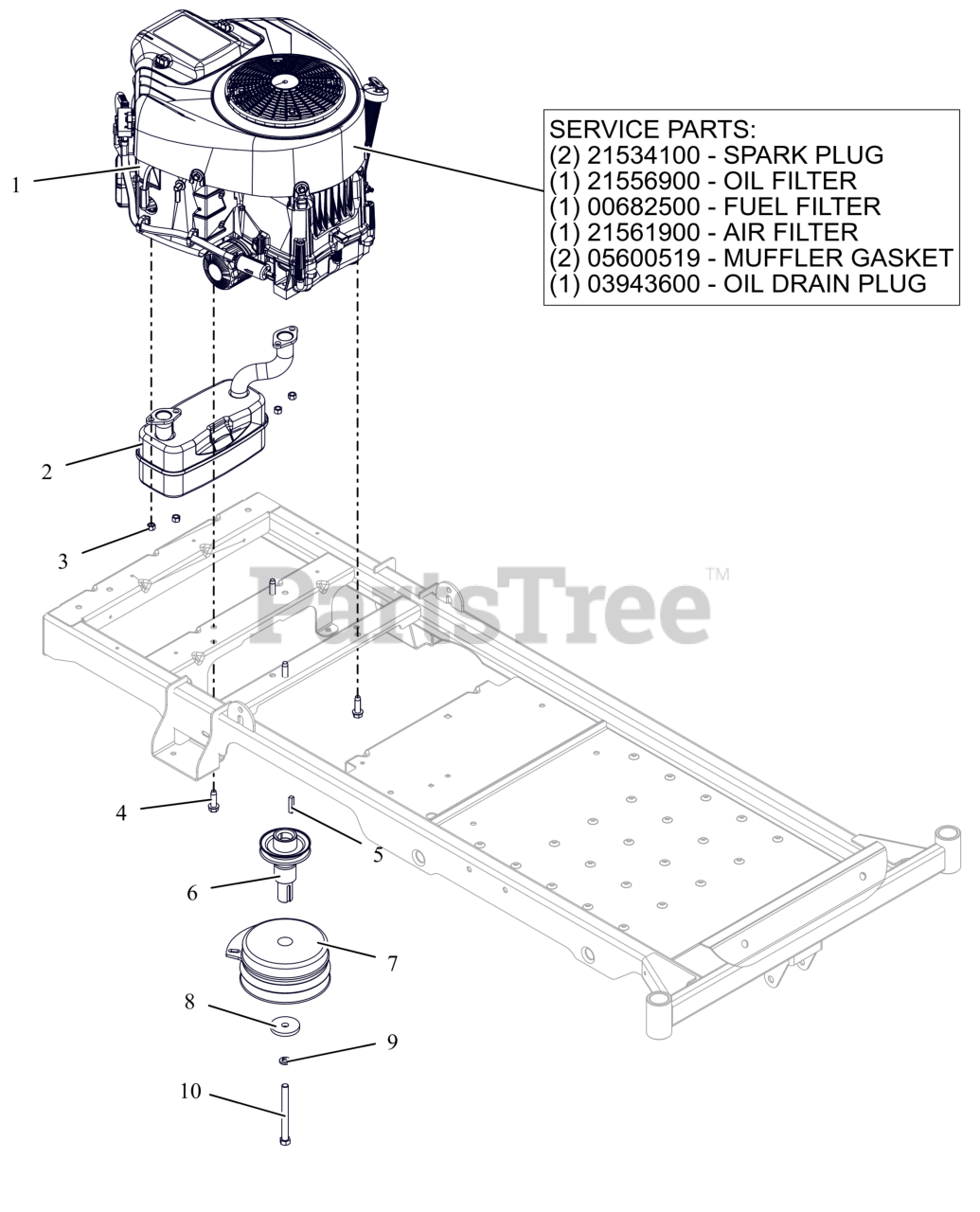

Engine - Briggs and Stratton EXI2200 Parts Diagram

  • Title

1

Ariens 08201407

ENGINE, BRIGGS 20 HP

$

$

Currently unavailable

1

Ariens 21534100

PLUG, SPARK

Note: Service Part Component

$3.99

$

Usually ships in 4-12 days

0

1

Ariens 21556900

OIL FILTER, BRIGGS

Note: Service Part Component

$12.99

$

In Stock, Qty 20+

0

1

Ariens 00682500

GASOLINE FILTER, BRIGGS

Note: Service Part Component

$15.99

$

Usually ships in 4-12 days

0

1

Ariens 21561900

AIR FILTER, BRIGGS

Note: Service Part Component

$24.99

$

Usually ships in 4-12 days

0

1

Ariens 05600519

GASKET, MUFFLER BRIGGS 690970

Note: Service Part Component

$8.49

$

Usually ships in 4-12 days

0

1

Ariens 03943600

DRAIN, OIL

Note: Service Part Component

$15.99

$

In Stock, only 1 left!

0

2

Ariens 09391900

MUFFLER, TWIN BRIGGS

$125.99

$

Usually ships in 4-12 days

0

3

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 5

0

4

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$3.49

$

In Stock, Qty 7

0

5

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 7

0

6

Ariens 07350500

WLDMT, CRANK SHAFT ADAPTER- BRIGGS

$83.99

$

Usually ships in 4-12 days

0

7

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$263.99

$

In Stock, only 4 left!

0

8

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$7.99

$

In Stock, Qty 20+

0

9

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, only 4 left!

0

10

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$6.49

$

Usually ships in 4-12 days

0
