915285 - Ariens Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 & Above) Engine - Kawasaki FR651V Parts Diagram

Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR

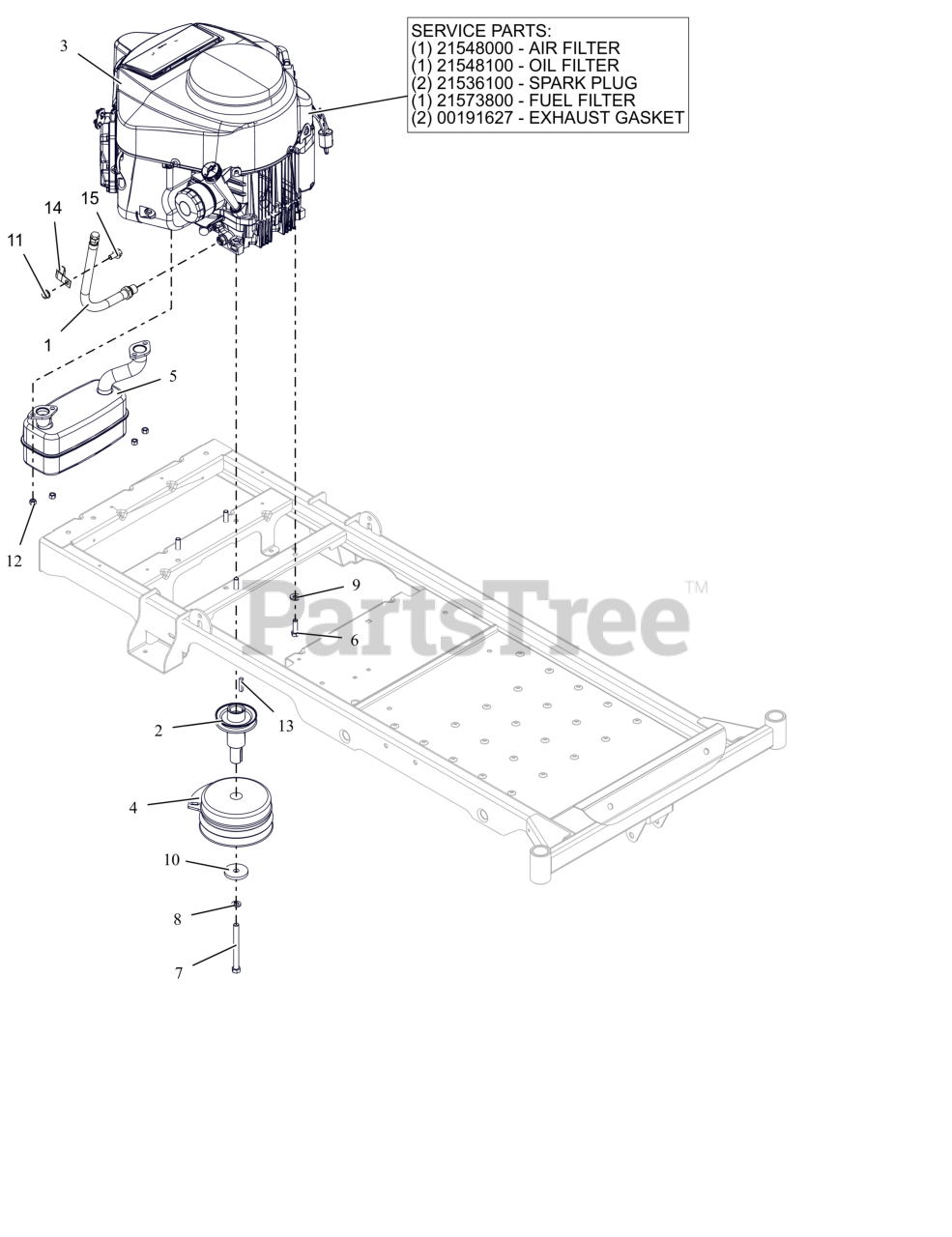

Engine - Kawasaki FR651V Parts Diagram

  • Title

1

Ariens 07001731

HOSE, OIL DRAIN

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 07338600

WLDMT, CRANKSHAFT EXTENSION

$87.99

$

Usually ships in 4-12 days

0

3

Ariens 08200631

ENGINE, KAWASAKI FR651V

$

$

Not available

3

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: Component Service Part

$17.99

$

In Stock, Qty 20+

0

3

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: Component Service Part

$18.99

$

Usually ships in 2-5 days

0

3

Ariens 21536100

PLUG, SPARK

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

3

Ariens 21573800

FUEL FILTER-KAWASAKI FR

Note: Component Service Part

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 00191627

GASKET, MUFFLER S/O

Note: Component Service Part

$8.49

$

In Stock, Qty 20+

0

4

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$263.99

$

In Stock, only 1 left!

0

5

Ariens 04749700

MUFFLER, KAWI TWIN

$55.99

$

In Stock, only 3 left!

0

6

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$2.49

$

In Stock, Qty 5

0

7

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, only 1 left!

0

9

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.99

$

In Stock, only 3 left!

0

10

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$7.99

$

In Stock, Qty 14

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, only 3 left!

0

13

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 2 left!

0

14

Ariens 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 07001824

BLT

$1.99

$

In Stock, Qty 20+

0
