915285 - Ariens Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: 000101 & Above) Front and Rear Wheels 52" Parts Diagram

Edge 52" Zero-Turn Mower, 21.5hp Kawasaki FR

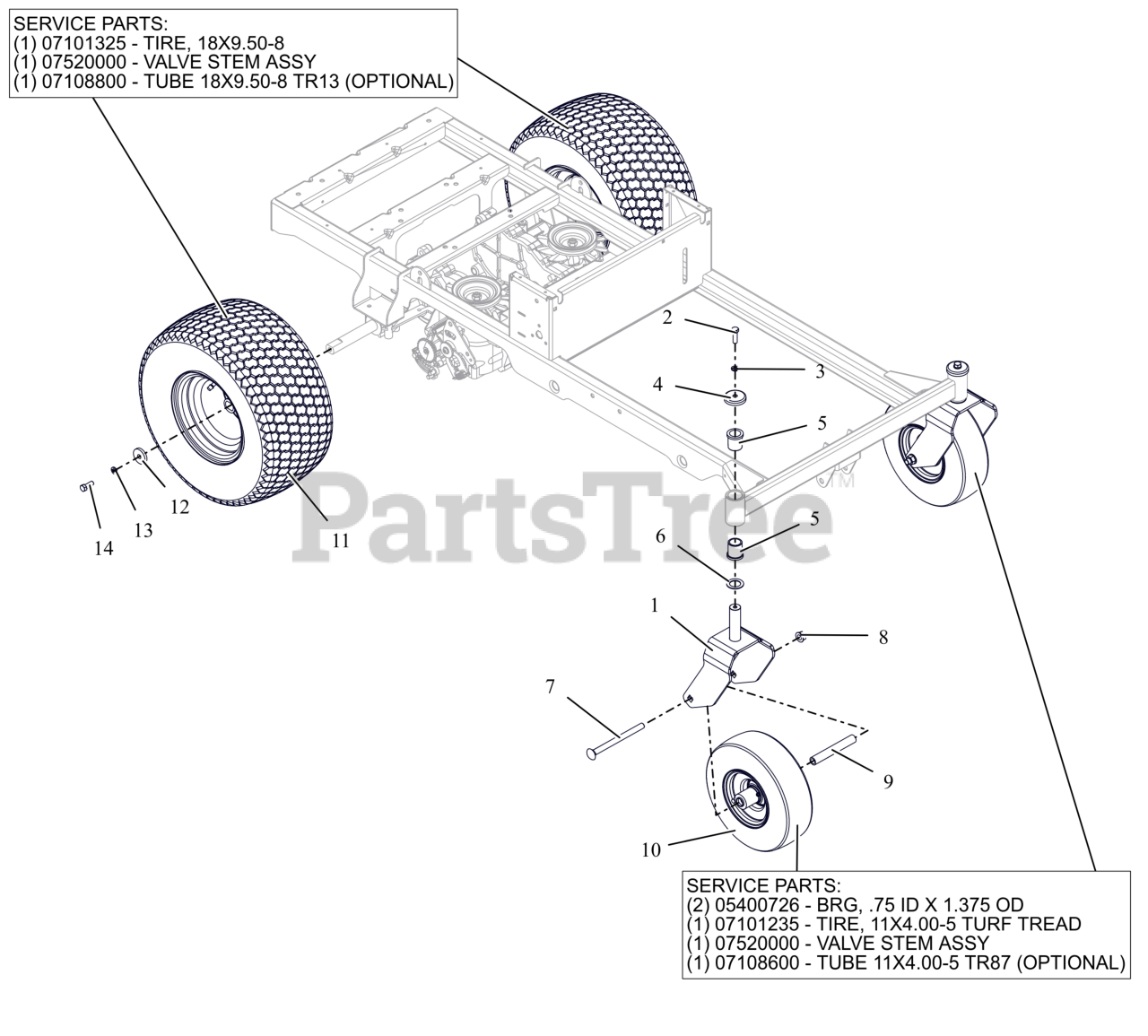

Front and Rear Wheels 52" Parts Diagram

  • Title

1

Ariens 09695159

WLDMT- CASTER FORK

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$2.99

$

Usually ships in 4-12 days

0

3

Ariens 06300130

WSHR-LK-REG .375X.094 ZB500

$1.49

$

Usually ships in 4-12 days

0

4

Ariens 30146400

SHIELD- AXLE BEARING BLK

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

6

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 15

0

7

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

Usually ships in 4-12 days

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 07101519

ASM- WHL/TIRE 11X4.00-5 LG BLK

$69.99

$

Usually ships in 4-12 days

0

10

Ariens 05400725

BRG-BALL 1.575X2.677X.590 2RLD

Note: Component Service Part

$39.99

$

Usually ships in 4-12 days

0

10

Ariens 07101235

LAWN TIRE FRONT, 11/4-5 TURF TREAD

Note: Component Service Part

$56.99

$

In Stock, only 4 left!

0

10

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, Qty 7

0

10

Ariens 07108600

TIRE TUBE, 11/4.0-5 4 PLY TR87 90 BENT VALVE

Note: Optional Component Service Part

$11.99

$

In Stock, only 2 left!

0

11

Ariens 07101518

ASM-WHL/TIRE 18 X 9.5-8 LG BLK

$153.99

$

Usually ships in 4-12 days

0

11

Ariens 07101325

TIRE, 18X9.50-8

Note: Component Service Part

$159.99

$

Usually ships in 4-12 days

0

11

Ariens 07510000

CABLE RETAINER

Note: Component Service Part

$

$

Not available

11

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Optional Component Service Part

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 16

0

14

Ariens 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 13

0
