915289 (ZT 42) - Gravely 42" Zero-Turn Mower, 18hp Kawasaki FR (SN: 000101 & Above) Deck Lift Parts Diagram

42" Zero-Turn Mower, 18hp Kawasaki FR

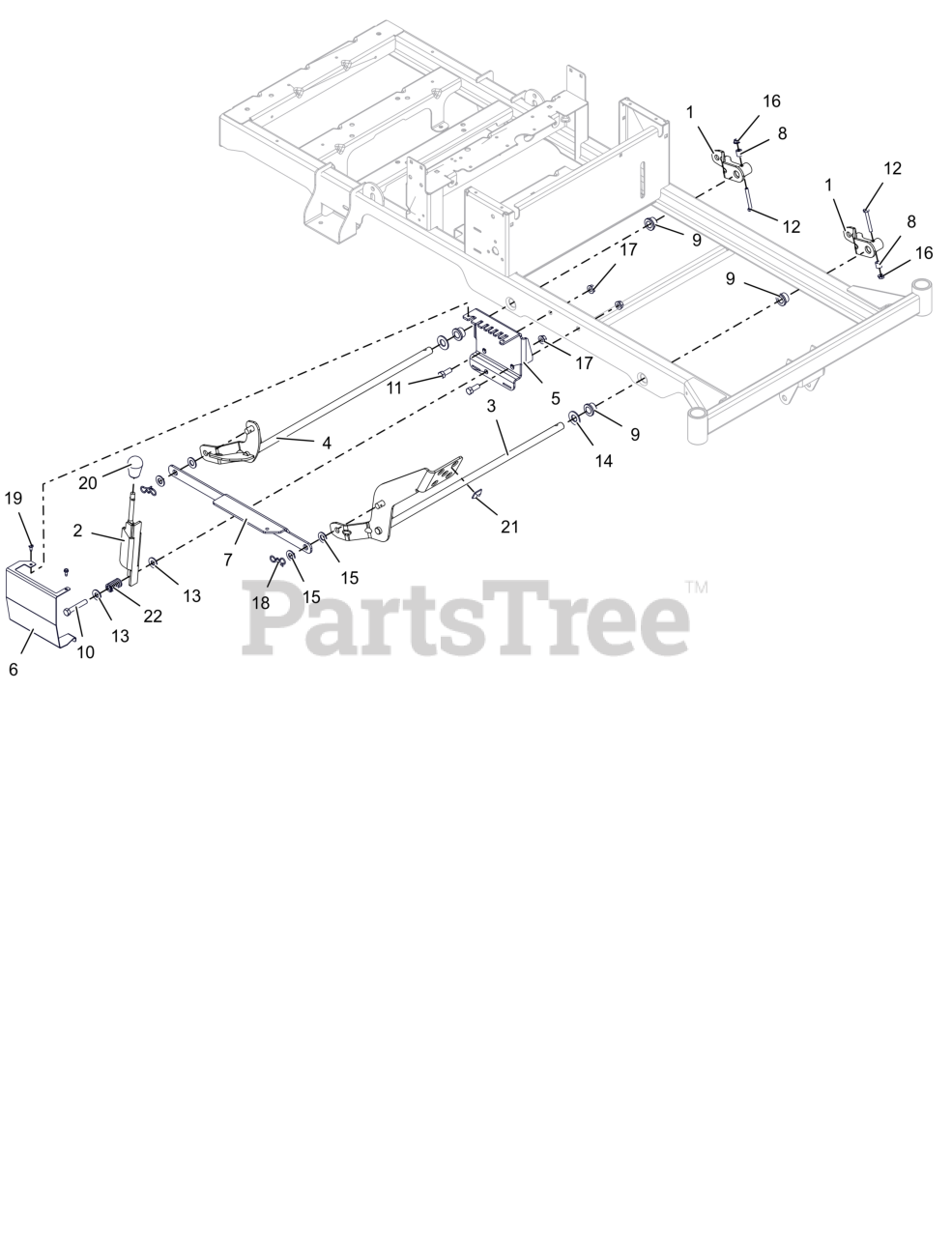

Deck Lift Parts Diagram

  • Title

1

Gravely 04434653

WLDMT, DECK LIFT ARM (RED)

$

$

Currently unavailable

2

Gravely 09178953

WLDMT, HEIGHT OF CUT (RED)

$

$

Currently unavailable

3

Gravely 09694553

WLDMT, PEDAL DECK LIFT (RED)

$46.99

$

Usually ships in 0 days

0

4

Gravely 09694653

WLDMT, REAR DECK LIFT (RED)

$

$

Currently unavailable

5

Gravely 04377953

PLATE, HEIGHT ADJUSTMENT (RED)

$

$

Currently unavailable

6

Gravely 04723753

GUARD, DECK HOC (RED)

$

$

Currently unavailable

7

Gravely 05292653

LINK, LIFT /HOC (RED)

$

$

Currently unavailable

8

Gravely 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05519100

BSHG-FLG .629X.879X.469X1.250

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

11

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

12

Gravely 05901740

BLT, HEX .25-20X2.00 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06401118

WSHR, FLT .656X1.313X.095 ZCC

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 9

0

17

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06700220

PIN, BOWTIE .091X1.875 ZCC

$2.99

$

In Stock, Qty 20+

0

19

Gravely 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 5

0

20

Gravely 07500224

KNOB,SOFT TEARDROP,PUSH-ON BLK

$10.99

$

Usually ships in 4-12 days

0

21

Gravely 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 08300631

SPRG, COMPRESSION

$9.99

$

Usually ships in 4-12 days

0
