915302 (EZR 1648) - Ariens 48" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Zero-Turn Mower, 16hp Briggs & Stratton

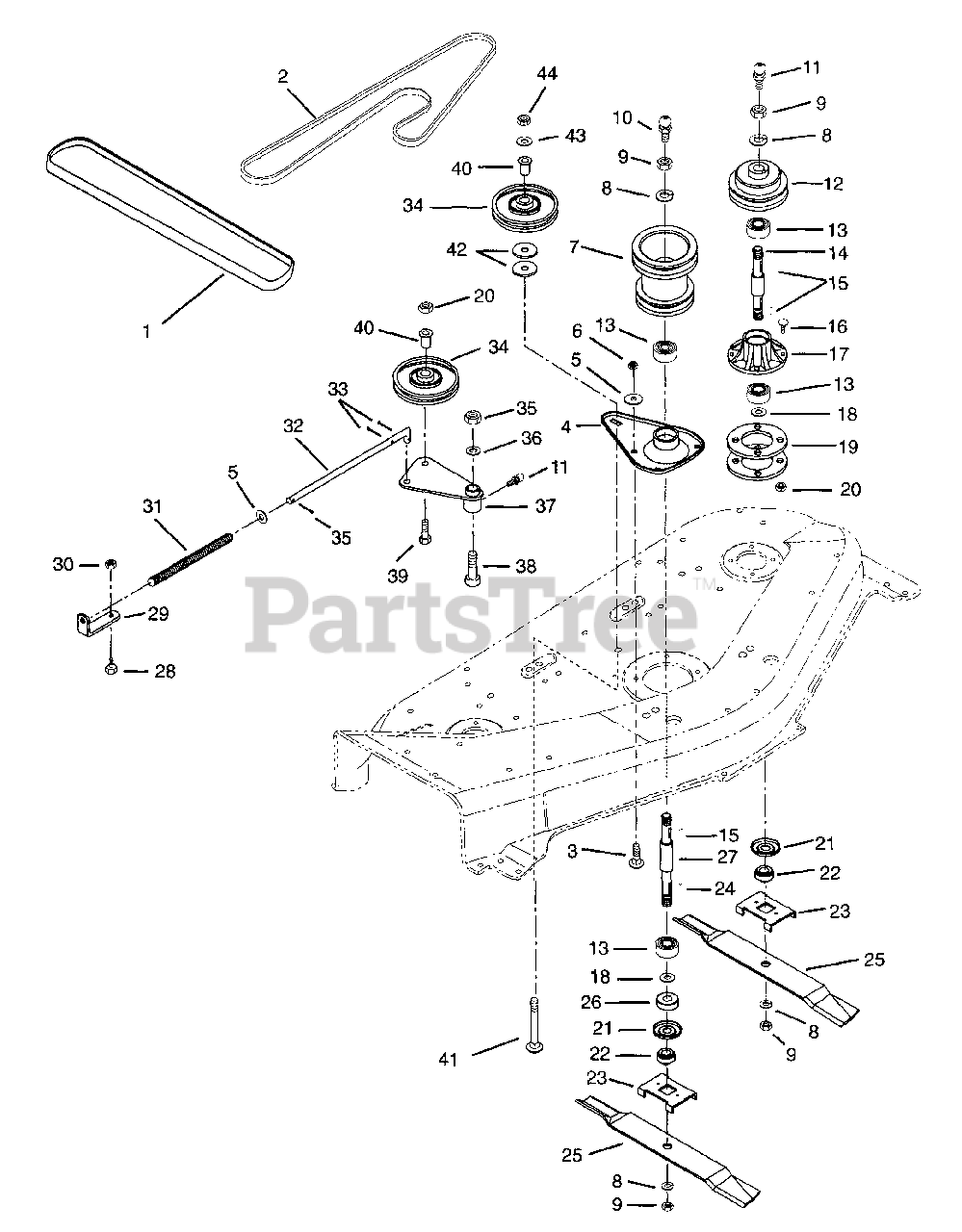

48" Mower Spindle Parts Diagram

  • Title

1

Ariens 07233200

BELT,HA 51.20 WRAPPED C-L2089
(Superseded to 07234300)

$39.99

$

In Stock, Qty 12

0

1

Ariens 07234500

V-BELT, HA-WRAPPED

Note: (515019)

$39.99

$

In Stock, Qty 6

0

2

Ariens 07208100

V-BELT, HA-WRAPPED

$54.99

$

Usually ships in 4-12 days

0

3

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

4

Ariens 03434900

HOUSING,SPINDLE

$

$

Not available

5

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03446800

SHEAVE

$523.99

$

Usually ships in 4-12 days

0

7

Ariens 01543300

SHEAVE, 48" DECK

Note: (515019)

$267.99

$

Usually ships in 4-12 days

0

8

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.99

$

In Stock, Qty 16

0

9

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 07012500

FTG,LUBE 1/8

$4.99

$

In Stock, only 2 left!

0

11

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

12

Ariens 03401800

SHEAVE

$191.99

$

Usually ships in 4-12 days

0

13

Ariens 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 15

0

14

Ariens 53115100

SPINDLE SHAFT W/ZERK

$75.99

$

Usually ships in 4-12 days

0

15

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.99

$

In Stock, only 4 left!

0

17

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

18

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

19

Ariens 03433600

SPACER, SPINDLE

$

$

Not available

20

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00341900

BEARING SLINGER

$23.99

$

In Stock, Qty 15

0

22

Ariens 03037500

RETAINER HUB

$73.99

$

In Stock, only 2 left!

0

23

Ariens 03485500

BLADE TRAY 48

$21.99

$

In Stock, only 1 left!

0

24

Ariens 06601700

KEY-SQ .188X.625X.188 SAE 61

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 03123759

BLADE
(Superseded to 03123700)

$23.99

$

In Stock, Qty 20+

0

26

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 53402400

SPINDLE SHAFT W/ZERK & KEY

$81.99

$

In Stock, Qty 5

0

28

Ariens 05916800

BLT-HEX .31-18X.50 GR5

$

$

Not available

29

Ariens 03418800

BRACKET
(Superseded to 03418851)

$79.99

$

Usually ships in 4-12 days

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 08301800

SG-COMP .106X.63X 12.0 WLD 62

$

$

Not available

32

Ariens 03433900

ROD-IDLER SPRING

$98.99

$

Usually ships in 4-12 days

0

33

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

34

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$38.99

$

In Stock, Qty 6

0

35

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$4.99

$

In Stock, Qty 16

0

36

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, Qty 20+

0

37

Ariens 53401000

IDLER ARM W/ZERK

$104.99

$

In Stock, Qty 6

0

38

Ariens 05901000

BLT-HEX .50-13X1.50 PL GR2
(Superseded to 05962000)

$4.99

$

In Stock, Qty 7

0

39

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$10.99

$

In Stock, only 2 left!

0

41

Ariens 06217900

BLT-RDHDSQNK .38-16X2.00
(Superseded to 06224300)

$3.99

$

In Stock, Qty 9

0

42

Ariens 06424800

WSHR-HDND-THR .390X1.50X.125PL

$9.99

$

Usually ships in 4-12 days

0

43

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

44

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0
