915306 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

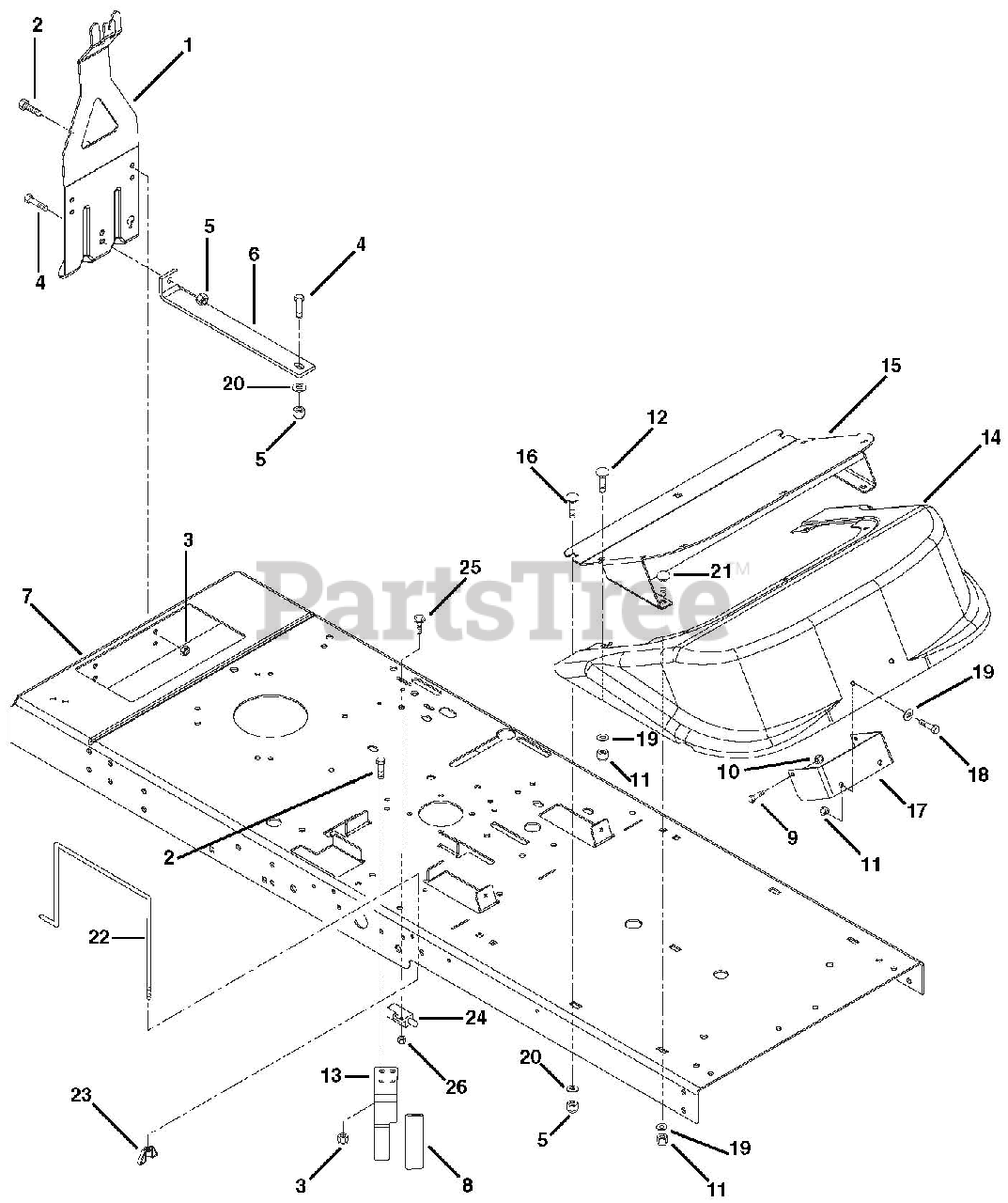

Frame Parts Diagram

  • Title

1

Ariens 01553559

HITCH, TRAILER
(Superseded to 01553551)

$

$

Not available

2

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01541200

BRACE

$

$

Not available

7

Ariens 01553759

FRAME

$148.99

$

Usually ships in 4-12 days

0

8

Ariens 07509400

GRIP

$

$

Not available

9

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

10

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

Note: (915014, 306, 307)

$5.49

$

In Stock, only 2 left!

0

10

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (915013)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (915014, 306, 307)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (915014, 306, 307)

$2.99

$

In Stock, Qty 20+

0

13

Ariens 01557851

STOP - CLUTCH

$

$

Not available

14

Ariens 01550059

SHROUD, FOOTREST

Note: (915014, 306, 307)

$82.99

$

Usually ships in 4-12 days

0

15

Ariens 01552851

FOOTREST, WLDM'T

Note: (915014, 306, 307)

$45.99

$

Usually ships in 4-12 days

0

15

Ariens 01538059

FOOTREST

Note: (915013)

$

$

Not available

16

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

17

Ariens 01554351

BRACKET, FOOTREST

Note: (915014, 306, 307)

$14.99

$

Usually ships in 4-12 days

0

17

Ariens 01526759

BRACKET - FOOTREST
(Superseded to 01526751)

Note: (915013)

$

$

Not available

18

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (915014, 306, 307)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (915013)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (915014, 306, 307)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: (915014, 306, 307)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

23

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

24

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 14

0

25

Ariens 07049200

BLT-HEX FWH #10X.750 YWZC

$

$

Not available

26

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0
