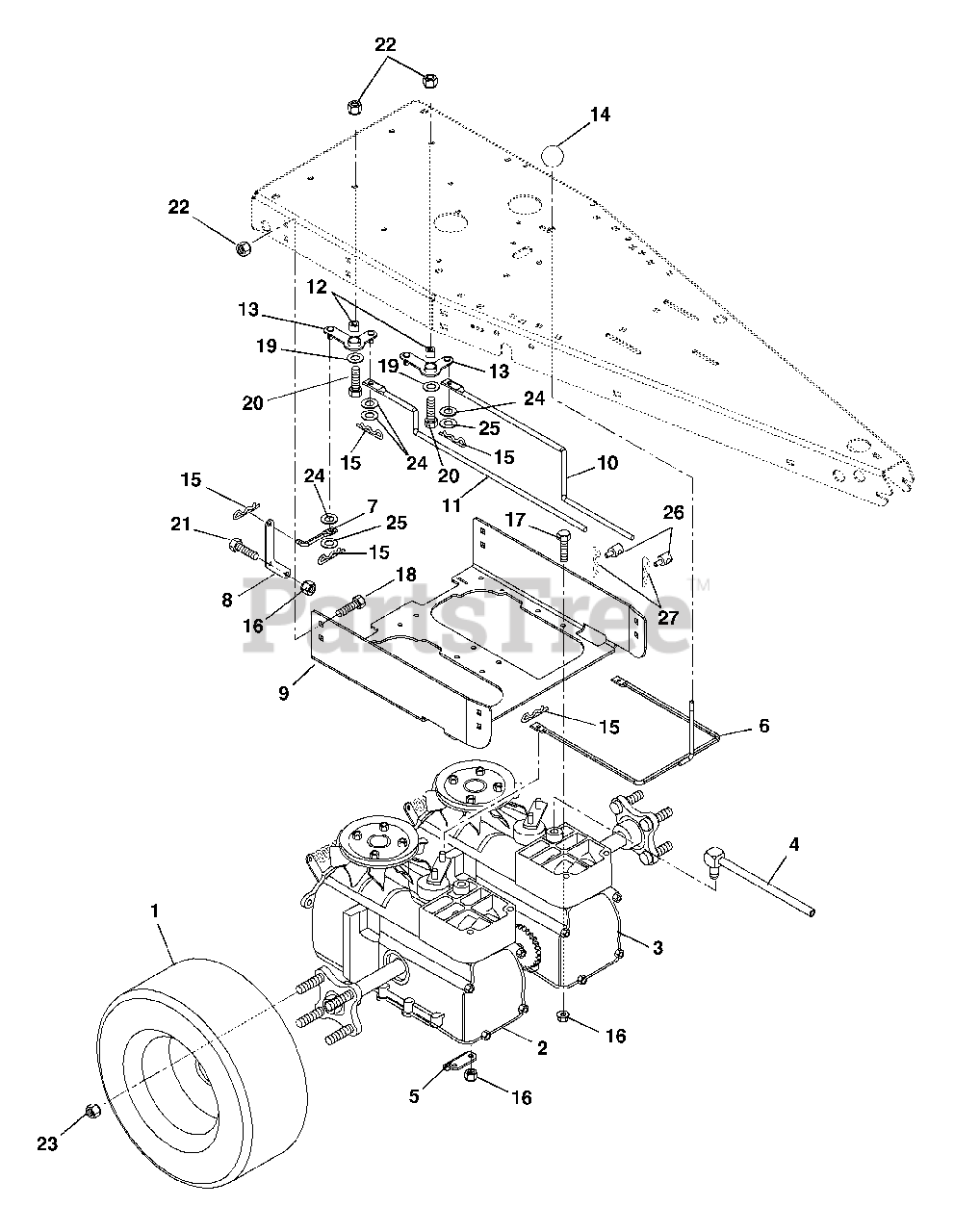

915309 (1232) - Ariens Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton (SN: 010000 & Above) Rear Wheel And Hydro Drive Parts Diagram

Sport Zoom 32" Zero-Turn Mower, 12hp Briggs & Stratton

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Ariens 07159600

T/WHL ASM 18X6.50-8 2 PLY

Note: (033)

$172.99

$

In Stock, only 1 left!

0

Ariens 07159800

T/WHL ASM 18X6.50-8 2 PLY
(Superseded to 07100310)

Note: (031, 309)

$116.99

$

Usually ships in 4-12 days

0

2

Ariens 01597800

TRANSAXLE, HYDRO-GEAR

$

$

Not available

3

Ariens 01597900

TRANSAXLE, HYDRO-GEAR

$

$

Not available

4

Ariens 01598200

IZT, BREATHER ASSEMBLY

$

$

Not available

5

Ariens 01598051

BRACKET-AXLE SUPPORT

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 01598100

DUMP ROD WLDM'T

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 01594600

ROD-BELL CRANK

$

$

Not available

8

Ariens 01595900

BRACKET

$5.99

$

Usually ships in 4-12 days

0

9

Ariens 01595851

CRADLE, IZT

$131.99

$

Usually ships in 4-12 days

0

10

Ariens 01594500

ROD-STEERING LH

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 01594400

ROD-STEERING RH

$22.99

$

Usually ships in 4-12 days

0

12

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

13

Ariens 01595500

WLDM'T-BELL CRANK

$54.99

$

Usually ships in 4-12 days

0

14

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$22.99

$

In Stock, only 2 left!

0

15

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, only 1 left!

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 7

0

21

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

25

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, Qty 8

0

26

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$52.99

$

Usually ships in 4-12 days

0

27

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0
