915316 (1434) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 019999) Engine, Exhaust, Belts And Idlers Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kawasaki

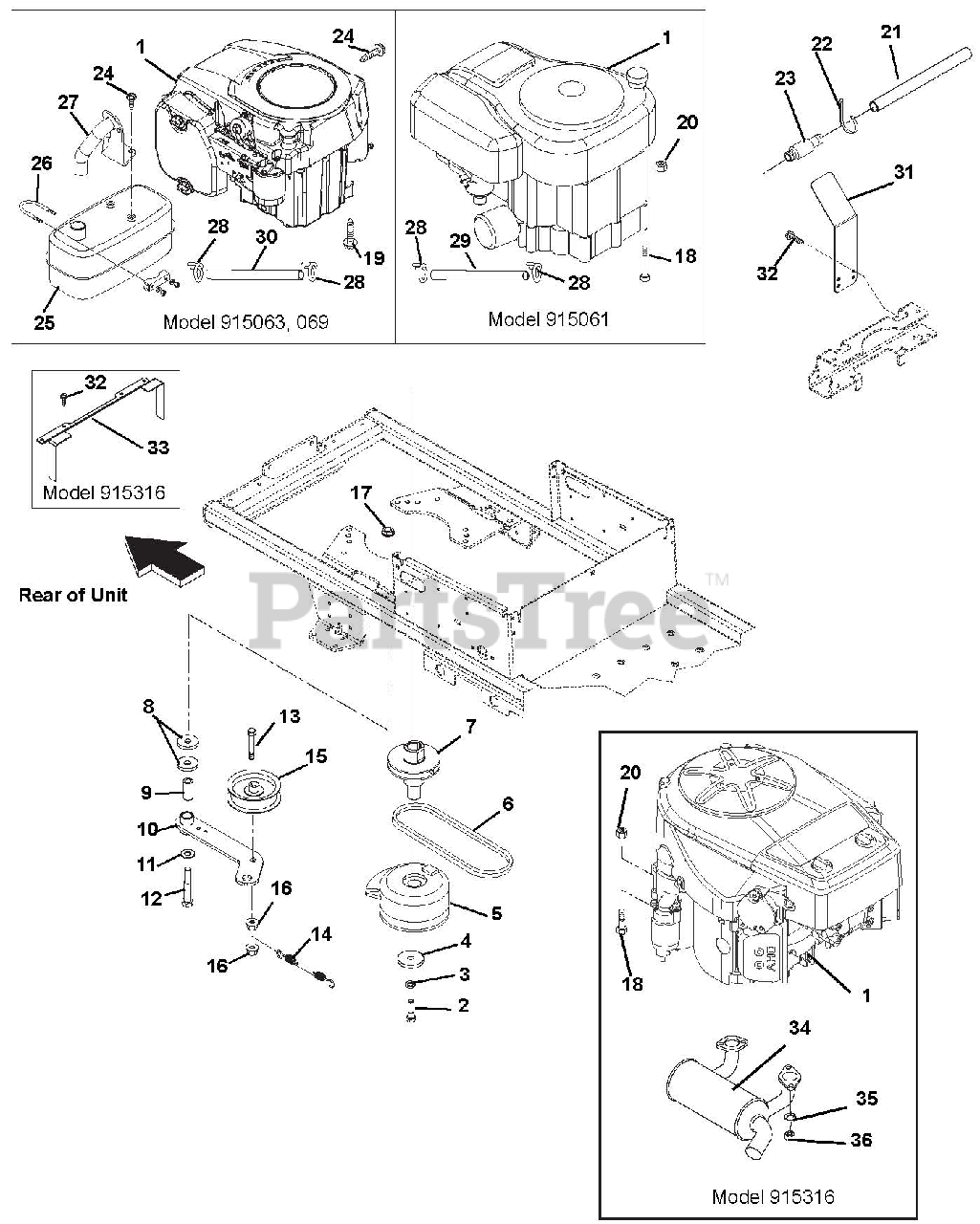

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 08200004

ENGINE, 15HP KOLHER

Note: (915063, 069)

$

$

Not available

1

Ariens 08200022

ENGINE,28 CI B&S I/C

Note: (915061)

$

$

Not available

1

Ariens 08200013

ENGINE, 15HP KAW FH451V

Note: (915316)

$

$

Not available

2

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.49

$

In Stock, only 3 left!

0

3

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

4

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

5

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

$302.99

$

Usually ships in 4-12 days

0

6

Ariens 07229000

V-BELT, HA-RAW EDGE

$46.99

$

In Stock, Qty 6

0

7

Ariens 00365000

CRANKSHAFT EXTENSION

$

$

Not available

8

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

9

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

10

Ariens 00375600

WMT,IDLER
(Superseded to 51516000)

$168.99

$

Usually ships in 4-12 days

0

11

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

12

Ariens 05960000

@BLT-HEX .50-13X3.25 GR5 YWZC
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

13

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

15

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$40.99

$

In Stock, Qty 17

0

16

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (915061, 316)

$3.49

$

In Stock, Qty 5

0

19

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (915063, 069)

$3.99

$

In Stock, Qty 16

0

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (915061, 316)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 00191400

TUBE, OIL DRAIN

$9.99

$

Usually ships in 4-12 days

0

22

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

23

Ariens 07067800

VALVE, OIL DRAIN

Note: (915061, 063, 069)

$40.99

$

Usually ships in 4-12 days

0

24

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (915063, 069)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 00182400

MUFFLER, KOHLER COURAGE SINGLE
(Superseded to 51515900)

Note: (915063, 069)

$140.99

$

In Stock, only 2 left!

0

26

Ariens 00255400

MUFFLER CLAMP

Note: (915063, 069)

$6.99

$

In Stock, only 4 left!

0

27

Ariens 00368000

WMT, MANIFOLD

Note: (915063, 069)

$263.99

$

Usually ships in 4-12 days

0

28

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

29

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (915061, 316)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 00382051

HEAT SHIELD,MINI-Z

Note: (915061, 063, 069)

$

$

Not available

32

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (915061, 063, 069)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (915316)

$1.99

$

In Stock, Qty 20+

0

33

Ariens 00396251

HEAT SHIELD

Note: (915316)

$

$

Not available

34

Ariens 09298000

MUFFLER, KAW. (COMPACT-Z)

Note: (915316)

$260.99

$

Usually ships in 4-12 days

0

35

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (915316)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (915316)

$2.49

$

Usually ships in 4-12 days

0
