915316 (1434) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 019999) Mower Deck Lift Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kawasaki

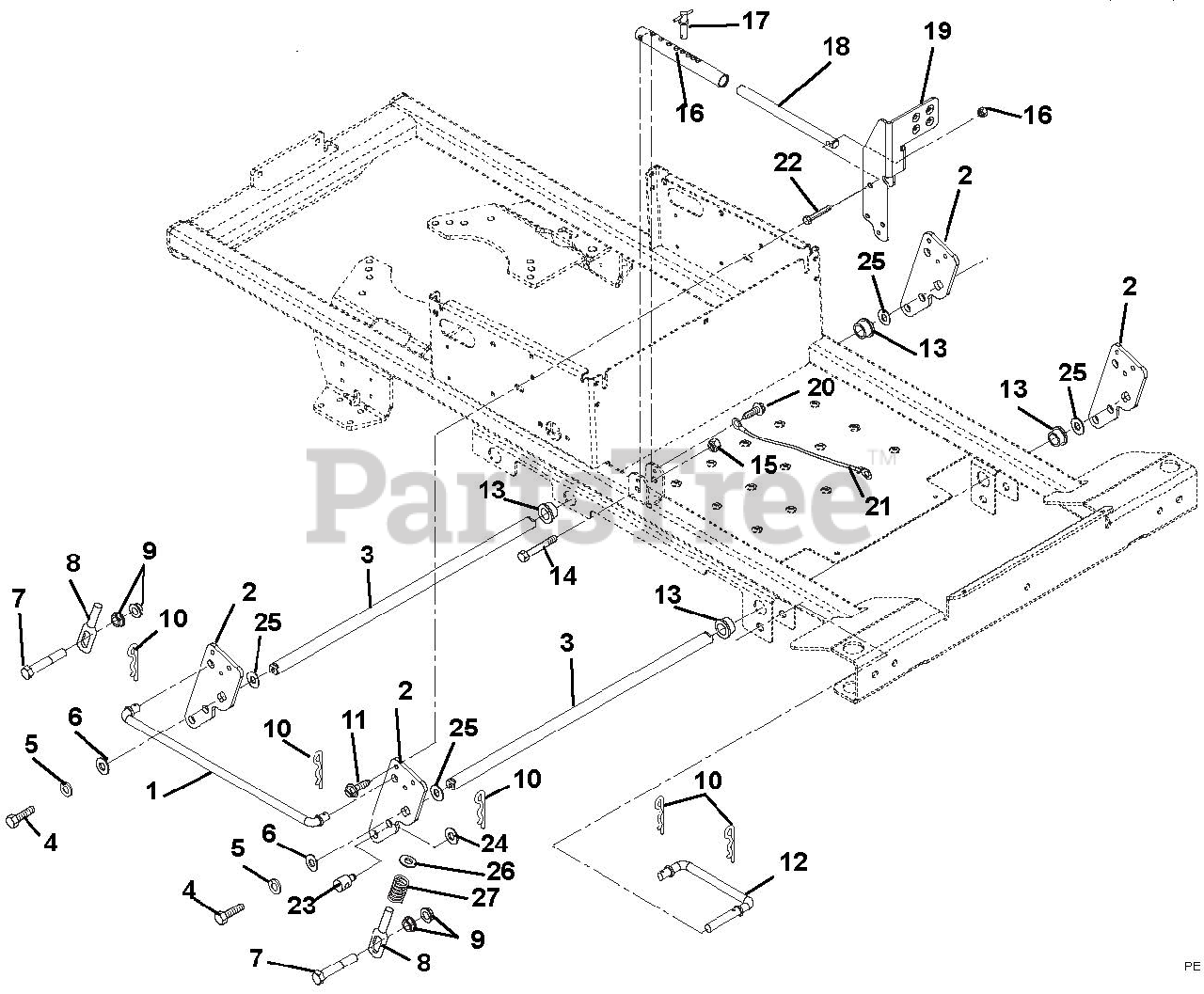

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 00279900

ROD,LIFT

$42.99

$

Usually ships in 4-12 days

0

2

Ariens 00279800

LIFT ARM

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 00280000

SHAFT,LIFT

$87.99

$

In Stock, only 2 left!

0

4

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

5

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

6

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 15

0

7

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 8

0

8

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$40.99

$

In Stock, Qty 9

0

9

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 10

0

11

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 00288300

LINK,DRAG

$48.99

$

In Stock, only 2 left!

0

13

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, only 2 left!

0

14

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

15

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 00347800

TUBE,LIFT STOP

$

$

Not available

17

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$6.49

$

In Stock, Qty 12

0

18

Ariens 00347700

ROD,LIFT

$46.99

$

Usually ships in 4-12 days

0

19

Ariens 00279551

PEDAL,FOOT LIFT

$21.99

$

Usually ships in 4-12 days

0

20

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06927100

CBL,HOOD

$15.99

$

In Stock, only 2 left!

0

22

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 01590400

TRUNNION-.50

$59.99

$

In Stock, Qty 9

0

24

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

25

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

26

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

27

Ariens 08300010

SG-COMP .105X1.35X2.00

$

$

Not available
