915319 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above)

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

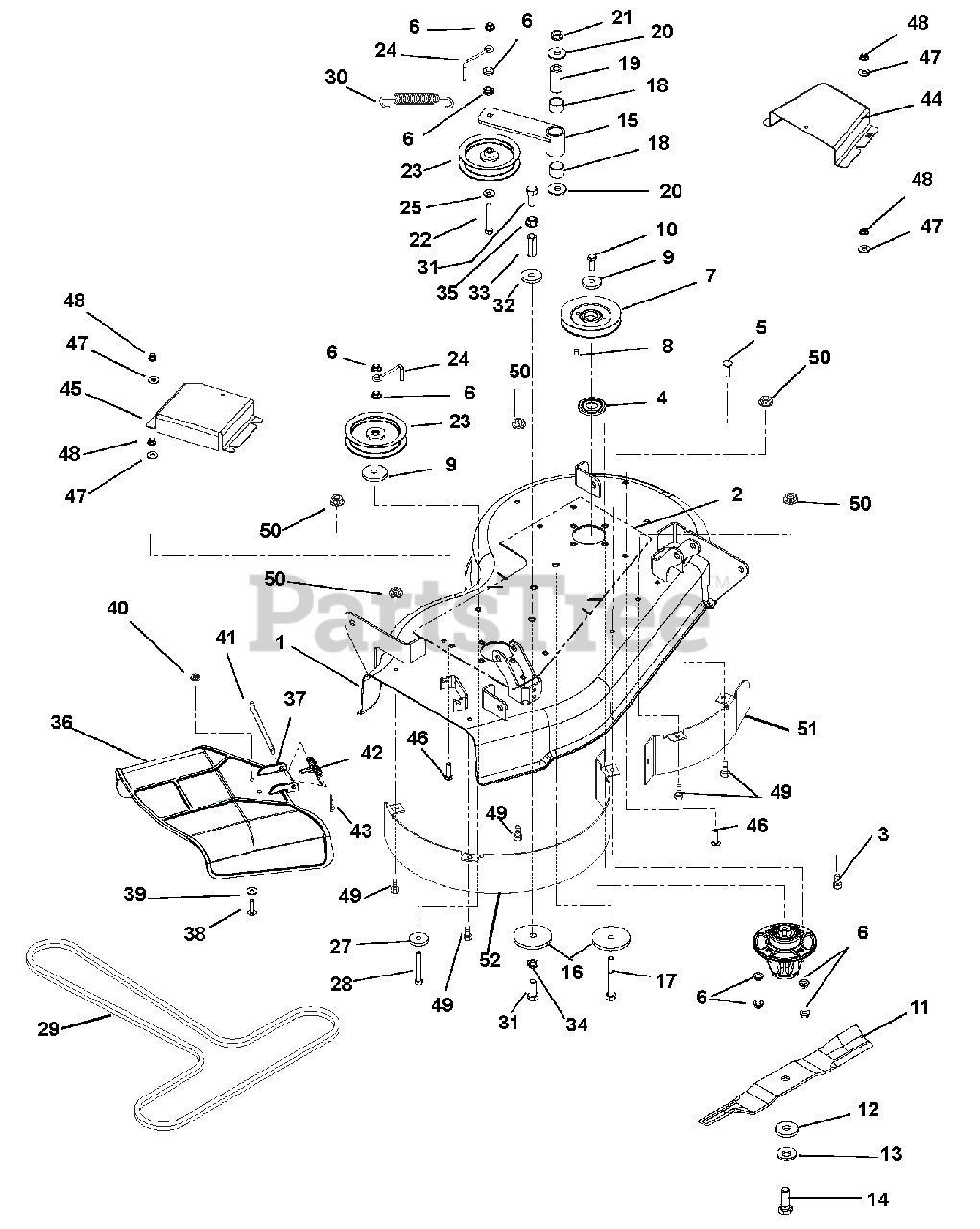

915319 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > 34" Mower Deck, Belt, Idlers And Blades

  • Title
00609851

1

34" DECK, STAMPED

Part# 00609851 (Superseded to 51529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $465.66

00619851

2

DOUBLER PLATE, 34" DECK

Part# 00619851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $94.64

61543800

3

SPINDLE ASSEMBLY

Part# 61543800 (Superseded to 51510000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $145.28

00587400

4

DUST CAP

Part# 00587400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.32

06224100

5

@BLT-RDHDSQNK .38-16X1.25 G5YZ

Part# 06224100 (Superseded to 06200415)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06545500

6

@NUT-LK-NYL-FLG .38-16 YWZC

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01610300

7

SHEAVE, 4.75 DIA A-SECTION

Part# 01610300 (Superseded to 07330267)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

06611100

8

KEY, SQ .25 X .38 X .25

Part# 06611100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06400006

9

WSHR,FLT STL.406X1.50X.245YWZC

Part# 06400006

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05900013

10

BLT-HEX .38-16X1.0 GR8 YZ EP30

Part# 05900013

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00869100

11

BLADE,17.38 LG MULCH

Part# 00869100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $26.78

06435200

12

WSHR-FLT .640X1.75X.250 YWZC

Part# 06435200 (Superseded to 06400829)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06445700

13

WSHR-BLVL .669X1.535X.138

Part# 06445700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05978900

14

BLT-HEX .62-18X1.75 GR8 YWZC

Part# 05978900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

00652600

15

WELDMENT, IDLER ARM

Part# 00652600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $40.19

06445000

16

WSHR-FL-STL .515X1.625X.250 YZ

Part# 06445000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05965800

17

@BLT-HEX .50-13X3.50 GR5 YWZC

Part# 05965800

OEM Warranty Repair Part for Ariens

Not available

05435800

18

BRG, 1.00 X 1.12 X .75

Part# 05435800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

01581700

19

BSHG, SPCR .502X.997X2.03 PM

Part# 01581700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06436400

20

WSHR-FL-STL.511X1.441X.125 YWZ

Part# 06436400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06543600

21

@NUT-LK-TOP-FLG .50-13 YWZC

Part# 06543600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05958400

22

@BLT-HEX .38-16X2.50 GR5 YWZC

Part# 05958400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07300006

23

IDLER, FLAT .38X4.00X1.06

Part# 07300006 (Superseded to 07300039)

OEM Warranty Repair Part for Ariens

Not available

00391900

24

BELT FINGER

Part# 00391900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $10.68

05515800

25

BSHG-FLG .406X.88X.270X.140

Part# 05515800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06400006

26

WSHR,FLT STL.406X1.50X.245YWZC

Part# 06400006

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06443600

27

WSHR-FL-STL .469X2.00X.25 YWZC

Part# 06443600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.65

05961400

28

@BLT-HEX .38-16X2.75 GR5 YWZC

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07200116

29

V-BELT, HA-WRAPPED

Part# 07200116

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $45.73

08300020

30

EXTENSION SPRING

Part# 08300020

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

05958900

31

@BLT-HEX .50-13X1.25 GR5 YWZC

Part# 05958900

OEM Warranty Repair Part for Ariens

Not available

06445000

32

WSHR-FL-STL .515X1.625X.250 YZ

Part# 06445000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06500013

33

NUT, COUPLING 1/2-13X1.75 YWZC

Part# 06500013

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06307300

34

@WSHR-LK .50X.125 REG YWZC

Part# 06307300 (Superseded to 06300115)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06543300

35

NUT-SPNLK-FLG .50-13 YWZC

Part# 06543300

OEM Warranty Repair Part for Ariens

Not available

00499900

36

MOLDED CHUTE, ZOOM

Part# 00499900 (Superseded to 03994300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $46.90

00662651

37

CHUTE REINFORCEMENT

Part# 00662651

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.48

05920900

38

SCR-SKH .31-18X.75 BTNHD YWZC

Part# 05920900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06435700

39

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

40

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

06800002

41

PIN, 5/16 X 3.88"

Part# 06800002

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

01258100

42

SPRING, TORSION

Part# 01258100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06713500

43

PIN-HAIR INT .08X.18X1.18 YWZC

Part# 06713500

OEM Warranty Repair Part for Ariens

Not available

00655851

44

BELT COVER, 34" LEFT

Part# 00655851

Note: (Serial# 101-250)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.21

04190059

44

WMT, LH CE BELT COVER (34")

Part# 04190059

Note: (Serial# 251-)

OEM Warranty Repair Part for Ariens

Not available

00655951

45

BELT COVER, 34" RIGHT

Part# 00655951

Note: (Serial# 101-250)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.92

04180659

45

BELT COVER, RIGHT

Part# 04180659

Note: (Serial# 251-)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06200008

46

@BLT-RHDSHSQNK.31-18X1.25 G5YZ

Part# 06200008

OEM Warranty Repair Part for Ariens

Not available

06435700

47

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06545400

48

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

Note: (Serial# 101-250)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06536100

48

NUT- JAM .312-18 YWZC

Part# 06536100

Note: (Serial# 251-)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05947000

49

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06530400

50

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

00671151

51

MULCH BAFFLE, 34" STAMPED

Part# 00671151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.89

00671251

52

DISCHARGE BAFFLE, 34" STAMPED

Part# 00671251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $59.48
