915319 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above)

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

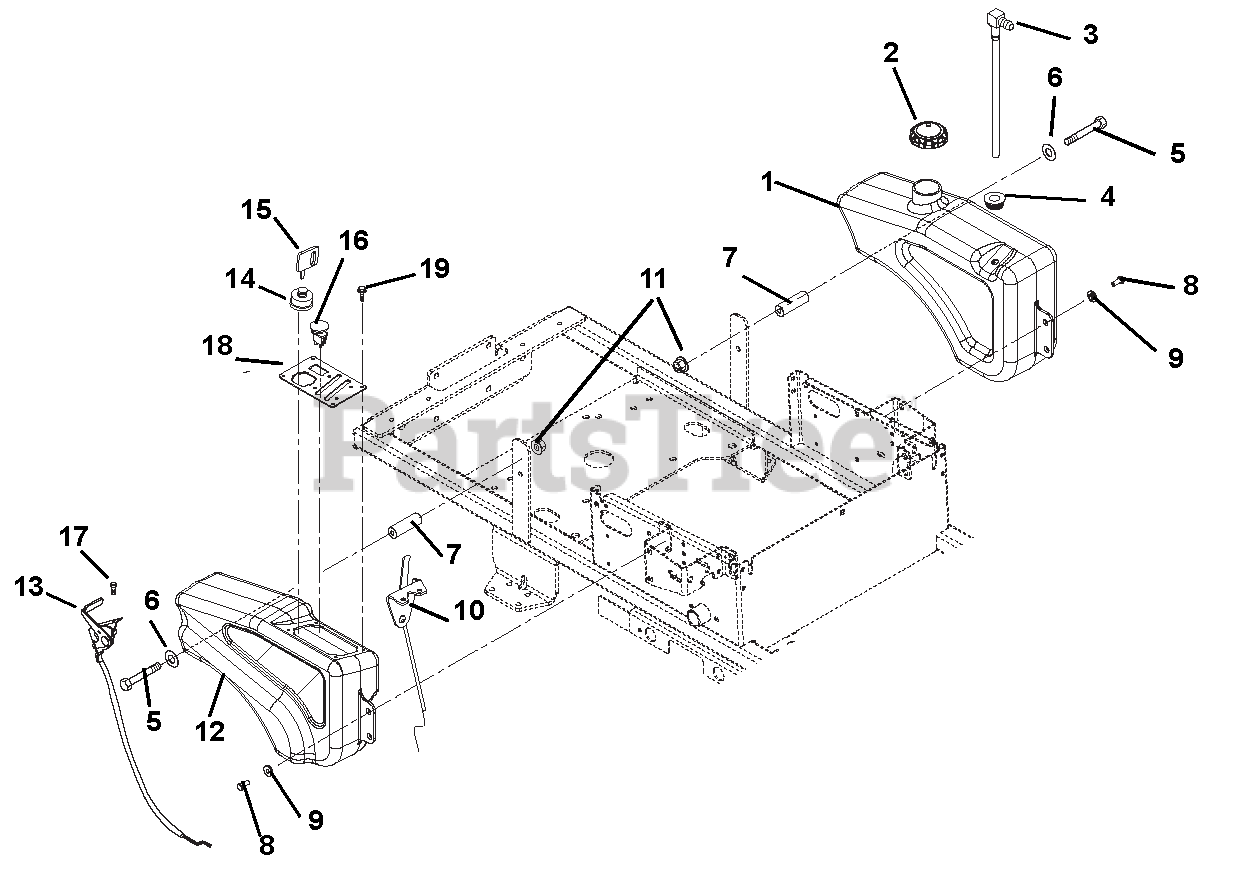

915319 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Fuel Tank

  • Title
00479500

1

GAS TANK, ZOOM

Part# 00479500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $102.82

01538400

2

FUEL CAP

Part# 01538400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.03

09112300

3

FITTING, TANK

Part# 09112300 (Superseded to 03875300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

07511400

4

BSHG-FLG .375 X 1.062 X .625 R

Part# 07511400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05948000

5

@BLT-HEX .31-18X3.50 GR5 YWZC

Part# 05948000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06435700

6

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00480900

7

SPCR, FLG .32X.49X.15X2.64

Part# 00480900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

05947000

8

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01305900

9

BSHG, FLG .325X.499X.26X.88

Part# 01305900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

00605100

10

CABLE, CHOKE

Part# 00605100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

06545400

11

@NUT-LK-NYL-FLG .31-18 YWZC

Part# 06545400 (Superseded to 06500809)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00479600

12

FENDER, ZOOM

Part# 00479600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $81.56

00605000

13

CABLE, THROTTLE

Part# 00605000

OEM Warranty Repair Part for Ariens

Not available

01588300

14

KEY SWITCH

Part# 01588300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.03

02460700

15

KEY -W/CAP

Part# 02460700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.77

01545600

16

SWITCH, CLUTCH

Part# 01545600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $41.03

07415800

17

@SCR-TAP 10-24X.50 HWH TR YWZC

Part# 07415800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00479351

18

PANEL, ZOOM CONTROL

Part# 00479351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

06830000

19

RIVET, PLASTIC .195 DIA.

Part# 06830000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85
