915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 010000 - 019999) Fuel Tank Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

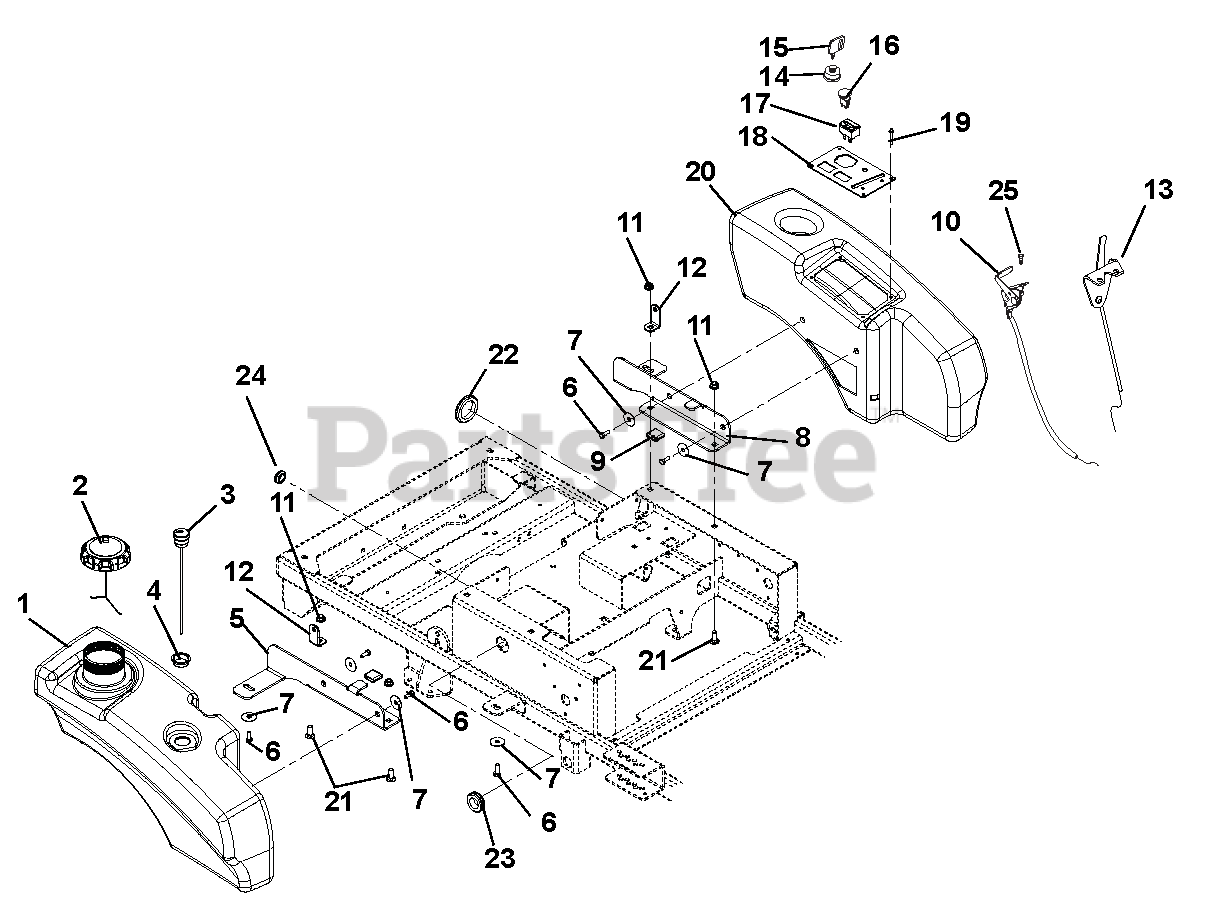

Fuel Tank Parts Diagram

  • Title

1

Ariens 02967300

TANK, XL
(Superseded to 04430400)

$424.99

$

In Stock, only 1 left!

0

2

Ariens 07500030

CAP, FUEL
(Superseded to 03859100)

$29.99

$

In Stock, only 4 left!

0

3

Ariens 07500029

GAUGE, REMOTE FUEL 10.0"
(Superseded to 07500309)

$

$

Not available

4

Ariens 07500034

GROMMET, FUEL GAGE

$6.99

$

In Stock, Qty 20+

0

5

Ariens 02973351

BRKT, RH REAR TANK MOUNT

$40.99

$

Usually ships in 4-12 days

0

6

Ariens 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.99

$

In Stock, Qty 10

0

8

Ariens 02973451

BRKT, LH REAR TANK MOUNT

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 07500037

GRIP, RUBBER (1.0X1.0X.187)BLK

$

$

Not available

10

Ariens 06900315

CABLE-THROTTLE

$

$

Not available

11

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 03200051

BRKT, HOOD PIVOT

$37.99

$

Usually ships in 4-12 days

0

13

Ariens 00605100

CABLE, CHOKE

$41.99

$

Usually ships in 4-12 days

0

14

Ariens 01588300

KEY SWITCH

$33.99

$

In Stock, Qty 20+

0

15

Ariens 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

16

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

17

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, only 3 left!

0

18

Ariens 03887051

CONTROL PANEL

$32.99

$

Usually ships in 4-12 days

0

19

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0

20

Ariens 02967400

FENDER, XL

$153.99

$

Usually ships in 4-12 days

0

21

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

22

Ariens 07500017

GROMMET 1.70ID X 2.0OD

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 07500031

GROMMET,RUBBER 5/8 ID/1.13 OD

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0
