915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 010000 - 019999) Parking Brake Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

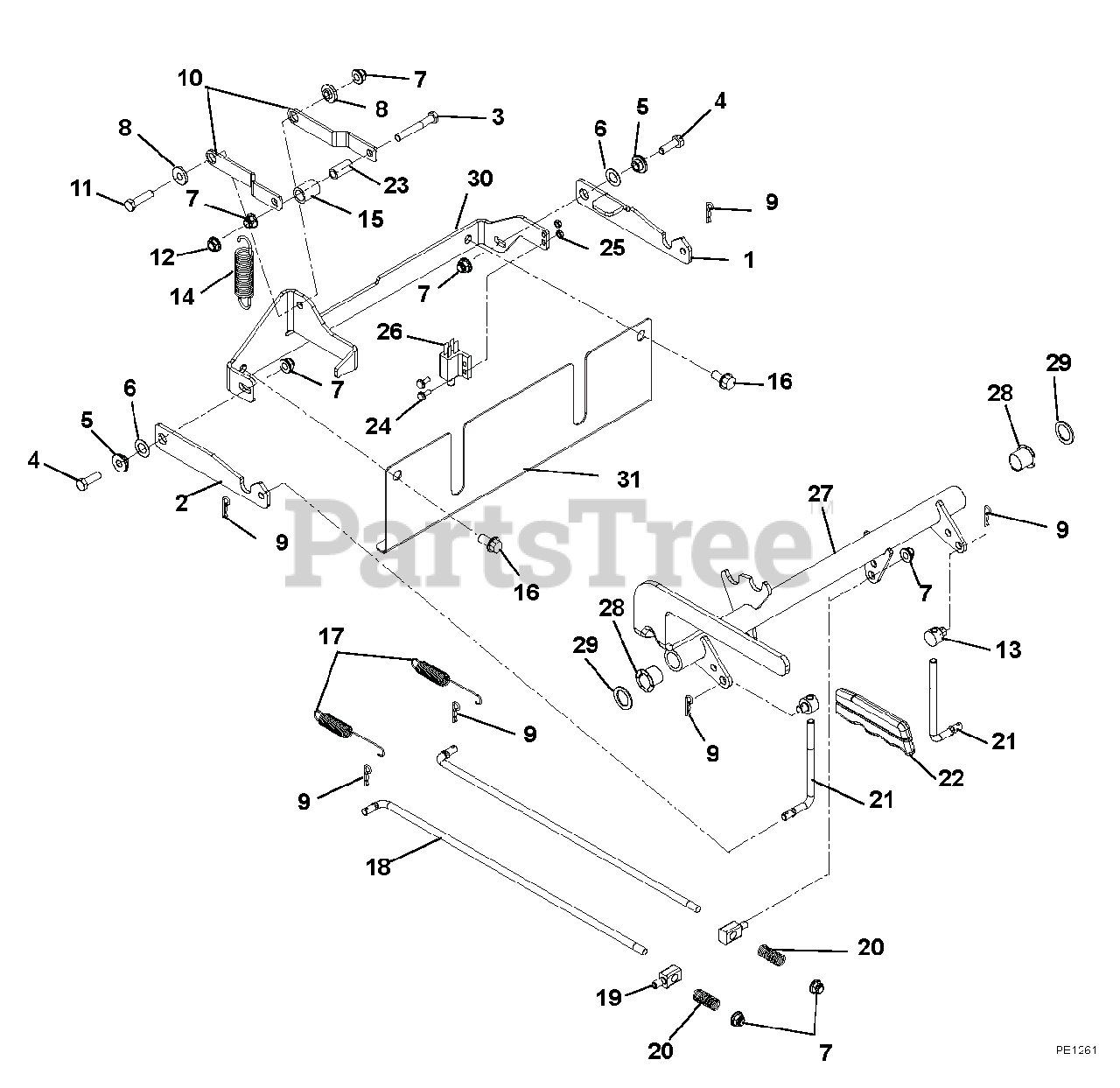

Parking Brake Parts Diagram

  • Title

1

Ariens 00952100

LINK, BRAKE INTERLOCK

$35.99

$

Usually ships in 4-12 days

0

2

Ariens 00952000

INTERLOCK, BRAKE
(Superseded to 00952067)

$26.99

$

Usually ships in 4-12 days

0

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.99

$

In Stock, Qty 20+

0

4

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

5

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06436000

WSHR-FL-STL .505X.875X.024 YWZ

$2.99

$

In Stock, only 4 left!

0

7

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00952200

ARM, BRAKE CAM

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$52.99

$

Usually ships in 4-12 days

0

14

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.49

$

In Stock, only 4 left!

0

15

Ariens 02973100

ROLLER, CAM LOCK

$19.99

$

In Stock, only 1 left!

0

16

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 08300017

SG-TENS .056X.60X4.40

$6.49

$

In Stock, Qty 13

0

18

Ariens 01959400

ROD, PARK BRAKE

$18.99

$

Usually ships in 4-12 days

0

19

Ariens 09267300

PIN, PIVOT/TRUNNION

$7.49

$

In Stock, only 2 left!

0

20

Ariens 08300028

SPRING, COMPRESSION

$5.49

$

In Stock, Qty 15

0

21

Ariens 01921600

LINK, INTERLOCK BRAKE

$79.99

$

Usually ships in 4-12 days

0

22

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$4.99

$

In Stock, only 2 left!

0

23

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$7.49

$

In Stock, only 1 left!

0

24

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

27

Ariens 00826400

SHAFT, BRAKE

$122.99

$

Usually ships in 4-12 days

0

28

Ariens 05500822

BUSHING, IGLIDE CLIP

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

30

Ariens 01959300

BRKT, BRAKE MTG
(Superseded to 01959367)

$59.99

$

Usually ships in 4-12 days

0

31

Ariens 04189851

BRKT, LOWER FINGER GUARD - XL

$13.99

$

Usually ships in 4-12 days

0
