915321 (1842) - Ariens Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 021000 - 029999) Engine, Exhaust, Belts and Idlers Parts Diagram

Zoom XL 42" Zero-Turn Mower, 18hp Briggs & Stratton

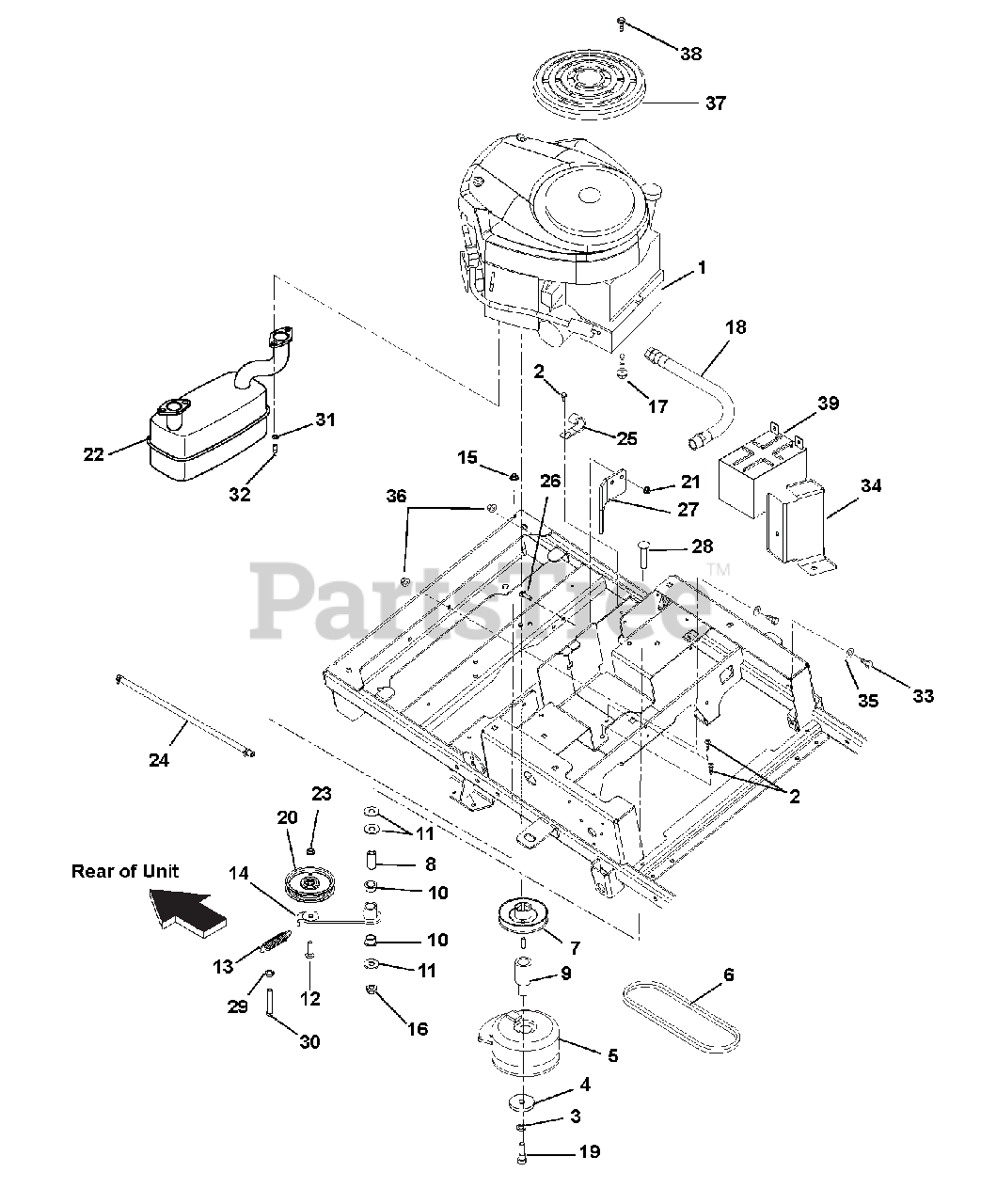

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Ariens 08200340

ENGINE, 18HP V-TWIN CE

$

$

Not available

2

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

4

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

5

Ariens 03370600

CLUTCH, MS WITH BRAKE

$372.99

$

Usually ships in 4-12 days

0

6

Ariens 07242200

V-BELT, HA-WRAPPED

$52.99

$

In Stock, Qty 8

0

7

Ariens 07300432

PLY-V 4.5X1.5 AB SECTION W/KEY
(Superseded to 07336567)

$117.99

$

Usually ships in 4-12 days

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.99

$

In Stock, only 2 left!

0

9

Ariens 02996000

EXT-CRANKSHAFT LOWER

$96.99

$

Usually ships in 4-12 days

0

10

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$8.49

$

In Stock, Qty 20+

0

11

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

12

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$5.49

$

In Stock, Qty 20+

0

13

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$9.99

$

In Stock, Qty 10

0

14

Ariens 02003800

WMT, GROUND DRIVE IDLER ARM

$71.99

$

Usually ships in 4-12 days

0

15

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$4.99

$

In Stock, Qty 18

0

18

Ariens 00588700

HOSE, HYD .38-11-0K M6N0-F6J0

$53.99

$

Usually ships in 4-12 days

0

19

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$7.99

$

In Stock, Qty 9

0

20

Ariens 07300101

ASM, 4" IDLER (.75 WIDE)

$67.99

$

In Stock, Qty 19

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 02997300

MUFFLER - TWIN BRIGGS
(Superseded to 09391900)

$136.99

$

Usually ships in 4-12 days

0

23

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 02974300

HOSE, FUEL(CARB APPROVED)

$

$

Not available

25

Ariens 06916000

J-CLAMP

$3.49

$

Usually ships in 4-12 days

0

26

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 03260051

CLUTCH STOP

$21.99

$

In Stock, only 3 left!

0

28

Ariens 06225500

@BLT-RDHDSQNK .50-13X2.50 G5YZ

$6.99

$

Usually ships in 4-12 days

0

29

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

31

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

32

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$3.49

$

In Stock, Qty 20+

0

33

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

34

Ariens 03949551

BRKT, BATTERY HOLD DOWN

$41.99

$

Usually ships in 4-12 days

0

35

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 03275500

GUARD, BRIGGS ENGINE

$33.99

$

Usually ships in 4-12 days

0

38

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

$4.99

$

Usually ships in 4-12 days

0

39

Ariens 04591900

BATTERY, 12V; 215 CCA GEP
(Superseded to 04738800)

$148.99

$

In Stock, Qty 20+

0

40

Ariens 03278800

CLAMP, FUEL LINE

$1.99

$

In Stock, Qty 20+

0
