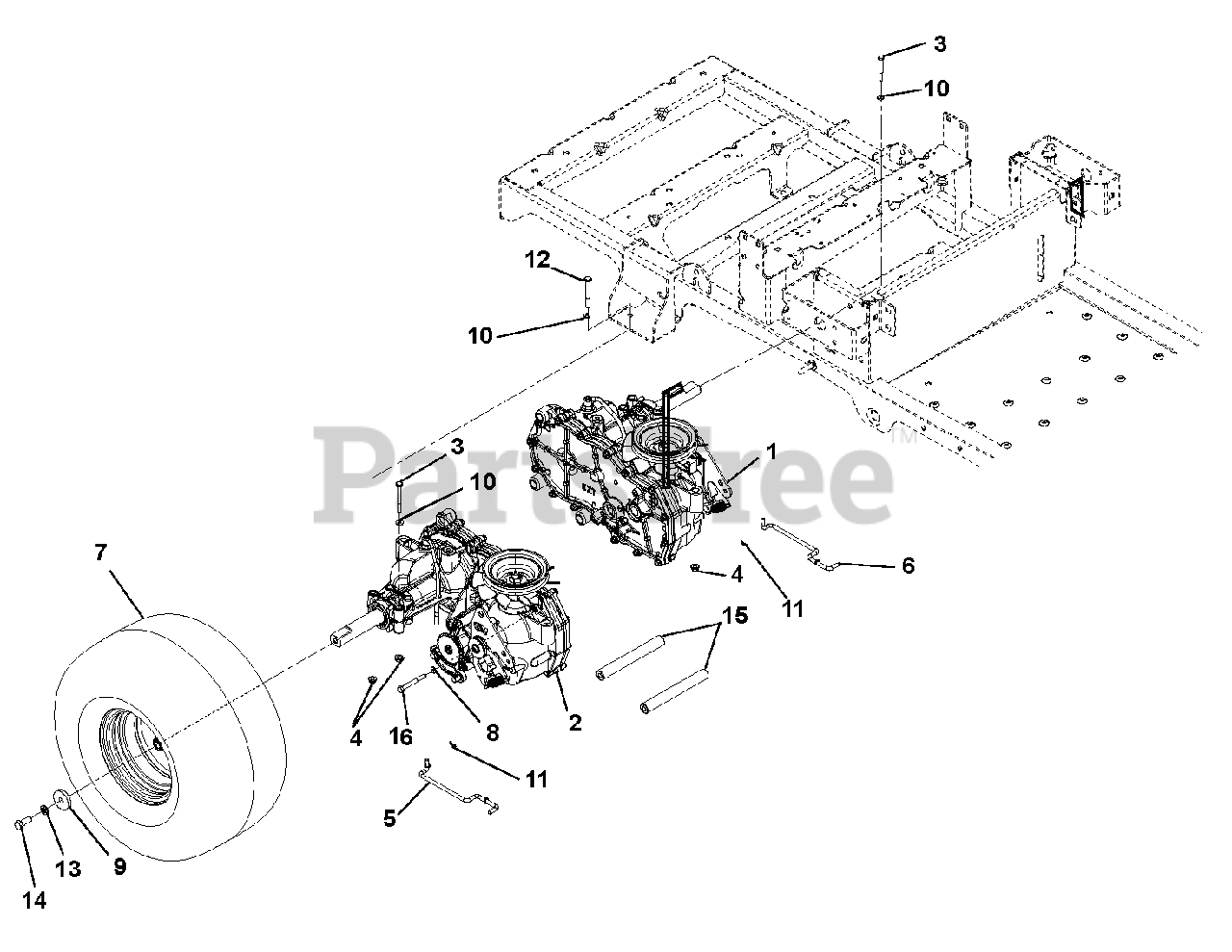

915322 - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 010000 - 029999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title

1

Ariens 03872300

TRANSAXLE, LH EZT D-SHAFT
(Superseded to 09160551)

Note: (915157, 169, 322)

$8.49

$

Usually ships in 4-12 days

0

1

Ariens 04382300

TRANSAXLE, LH EZT D-SHAFT LONG

Note: (915159, 161, 171, 323)

$964.99

$

Usually ships in 4-12 days

0

2

Ariens 03872400

TRANSAXLE, RH EZT D-SHAFT
(Superseded to 09160551)

Note: (915157, 169, 322)

$8.49

$

Usually ships in 4-12 days

0

2

Ariens 04382400

TRANSAXLE, RH EZT D-SHAFT LONG

Note: (915159, 161, 171, 323)

$964.99

$

Usually ships in 4-12 days

0

3

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$2.99

$

In Stock, Qty 9

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03762700

DUMPVALVE, RH LCZ

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 03762800

DUMPVALVE, LH LCZ

$30.99

$

Usually ships in 4-12 days

0

7

Ariens 07100809

TIRE-ASM 18X6.5-8 4 PLY DSHAFT

Note: (915157, 169, 322)

$142.99

$

Usually ships in 4-12 days

0

7

Ariens 07100928

TIRE/WHEEL ASSY,18X8.50-8 DHUB
(Superseded to 07101130)

Note: (915159, 171, 323)

$183.99

$

In Stock, Qty 5

0

7

Ariens 07100929

TIRE/WHEEL ASSY,18X9.50-8 DHUB

Note: (915161)

$196.99

$

Usually ships in 4-12 days

0

8

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$5.49

$

In Stock, Qty 20+

0

10

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.49

$

In Stock, Qty 7

0

12

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$3.49

$

In Stock, Qty 6

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 03762067

SHAFT, TRANSAXLE BRACE
(Superseded to 03762000)

$51.99

$

In Stock, Qty 7

0

16

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0
