915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 000101 - 009999) Mower Deck Belt and Idlers 2 Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

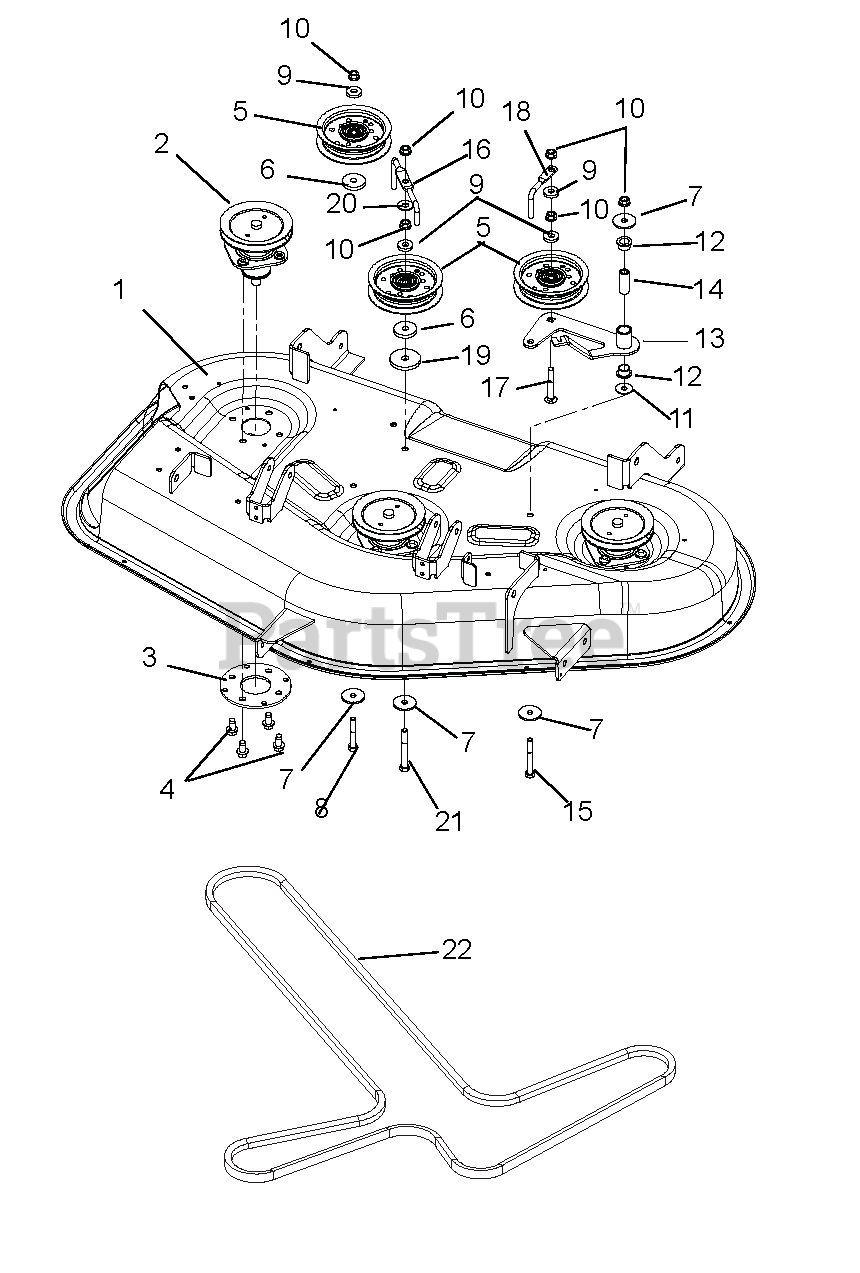

Mower Deck Belt and Idlers 2 Parts Diagram

  • Title

1

Ariens 04283559

WMT, 42" ZOOM DECK - CE

$

$

Not available

2

Ariens 51520900

KIT, DECK SPINDLE ASM (42)

$148.99

$

In Stock, only 2 left!

0

3

Ariens 03839059

PLATE-REINF, SPINDLE

$25.99

$

In Stock, only 2 left!

0

4

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

6

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

7

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 18

0

8

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 19

0

10

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 4 left!

0

12

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 12

0

13

Ariens 04072900

WMT, IDLER ARM

$62.99

$

In Stock, only 1 left!

0

14

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 14

0

15

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, Qty 18

0

16

Ariens 03974159

WIREFORM, BELT FINGER
(Superseded to 03974100)

$10.99

$

In Stock, Qty 8

0

17

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 03828859

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

Usually ships in 4-12 days

0

19

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, Qty 19

0

20

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

21

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 07200523

V-BELT, 4L-WRAPPED

$68.99

$

In Stock, Qty 11

0
