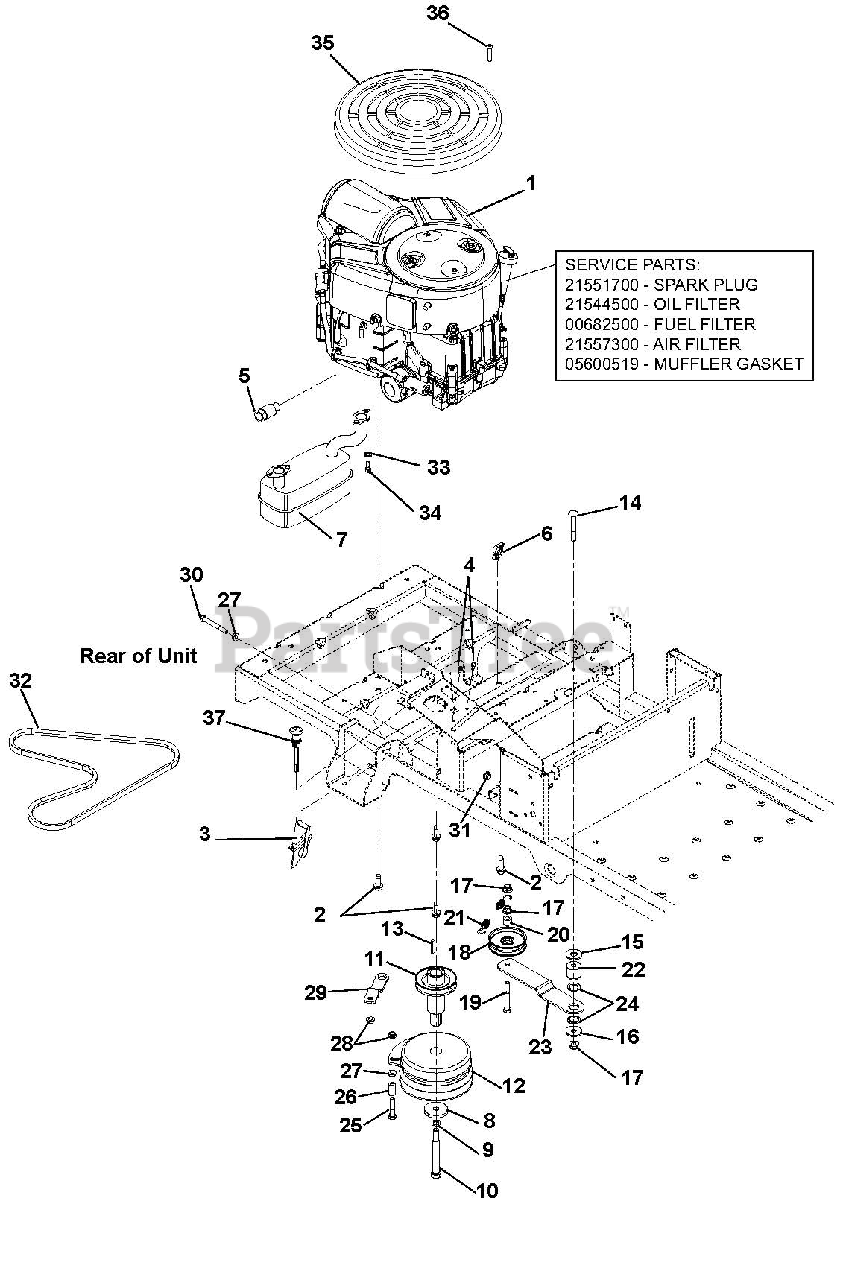

915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Engine, Exhaust, Belts and Idlers Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Ariens 08201014

ENGINE, 18HP V-TWIN CE

$

$

Not available

1

Ariens 21551700

PLUG, BRIGGS SPARK

Note: SERVICE PART

$11.99

$

Usually ships in 4-12 days

0

1

Ariens 21544500

FILTER, OIL

Note: SERVICE PART

$13.99

$

In Stock, Qty 20+

0

1

Ariens 00682500

GASOLINE FILTER, BRIGGS

Note: SERVICE PART

$13.99

$

Usually ships in 4-12 days

0

1

Ariens 21557300

AIR CLEANER
(Superseded to 21561900)

Note: SERVICE PART

$22.99

$

In Stock, only 1 left!

0

1

Ariens 05600519

GASKET, MUFFLER BRIGGS 690970

Note: SERVICE PART

$7.99

$

Usually ships in 4-12 days

0

2

Ariens 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, only 2 left!

0

3

Ariens 06900416

CABLE, THROTTLE

$34.99

$

In Stock, only 4 left!

0

4

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 6

0

5

Ariens 03943600

DRAIN, OIL

$9.99

$

In Stock, Qty 10

0

6

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 02997300

MUFFLER - TWIN BRIGGS
(Superseded to 09391900)

$113.99

$

Usually ships in 4-12 days

0

8

Ariens 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 19

0

9

Ariens 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, only 1 left!

0

10

Ariens 05901821

BLT, HEX .44-20X4.50 G8 ZCC

$6.99

$

In Stock, Qty 10

0

11

Ariens 07338600

WLDMT, CRANKSHAFT EXTENSION

$85.99

$

Usually ships in 4-12 days

0

12

Ariens 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

In Stock, only 1 left!

0

13

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, only 1 left!

0

14

Ariens 06200316

BLT, RHSN .38-16X2.75 G5 ZCC

$3.99

$

In Stock, only 1 left!

0

15

Ariens 06401012

WSHR,FLT .563X1.375X.109 ZCC

$3.49

$

In Stock, Qty 15

0

16

Ariens 06401121

WSHR,FLT .406X1.375X.135 ZCC

$5.99

$

In Stock, Qty 5

0

17

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07300221

PULLEY, ENGINE CLUTCH 03608

$30.99

$

In Stock, only 1 left!

0

19

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 16

0

20

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 14

0

21

Ariens 08300512

SPRING, EXTENSION

$15.99

$

In Stock, Qty 18

0

22

Ariens 03961100

SPACER, GROUND DRIVE IDLER

$5.99

$

In Stock, only 1 left!

0

23

Ariens 03961067

IDLER ARM, GROUND DRIVE

$

$

Not available

24

Ariens 03960700

BUSHING, IDLER ARM

$5.99

$

In Stock, only 2 left!

0

25

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 12

0

26

Ariens 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, only 1 left!

0

27

Ariens 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

28

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03956751

BRKT, CLUTCH STOP

$11.99

$

Usually ships in 4-12 days

0

30

Ariens 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 10

0

32

Ariens 07200010

V-BELT, HA-RAW EDGE

$35.99

$

In Stock, Qty 18

0

33

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

34

Ariens 05901839

SCR-CAP .31-18X.88 S/HD G8 ZCC

$2.99

$

Usually ships in 4-12 days

0

35

Ariens 03275500

GUARD, BRIGGS ENGINE

$29.99

$

Usually ships in 4-12 days

0

36

Ariens 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 06900408

CABLE, CHOKE (SNAP IN)

$39.99

$

Usually ships in 4-12 days

0
