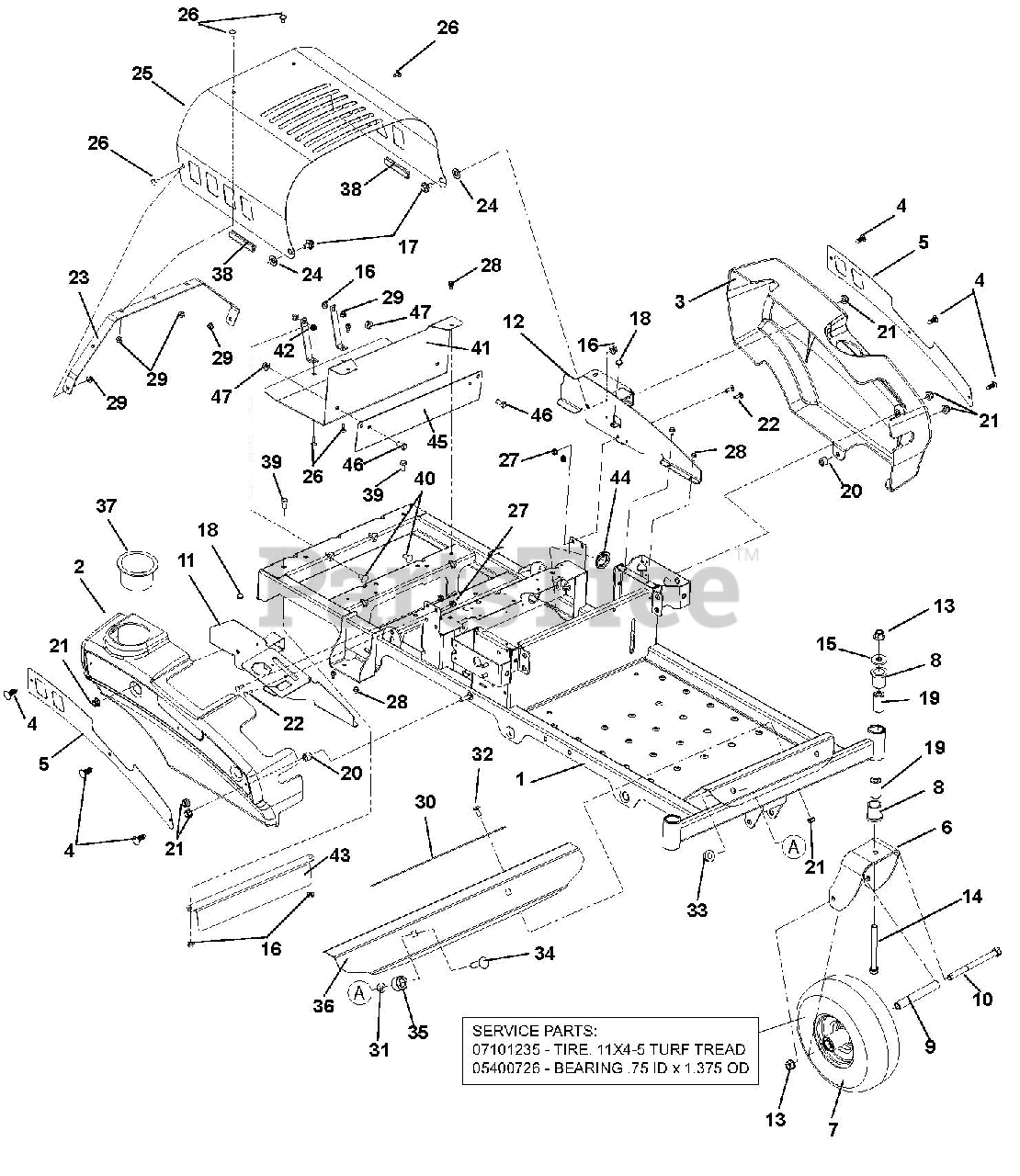

915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Frame, Hood, Fenders, Casters and Tires Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

Frame, Hood, Fenders, Casters and Tires Parts Diagram

  • Title

1

Ariens 51525900

KIT, ZOOM/ZT FRAME W/ DECALS

$610.99

$

Usually ships in 4-12 days

0

2

Ariens 03768600

FENDER, RH

$79.99

$

In Stock, only 1 left!

0

3

Ariens 51534400

KIT, LH FENDER W/ DECAL ZOOM

$96.99

$

Usually ships in 4-12 days

0

4

Ariens 07500125

RIVET, .25 NYLON PANEL

$2.49

$

In Stock, Qty 20+

0

5

Ariens 03769059

PLATE, FENDER

$39.99

$

Usually ships in 4-12 days

0

6

Ariens 03368559

WMT, CASTER FORK

$72.99

$

In Stock, only 2 left!

0

7

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

7

Ariens 07101235

TIRE, 11X4-5 TURF TREAD

Note: SERVICE PART

$56.99

$

In Stock, only 4 left!

0

7

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: SERVICE PART

$

$

Not available

8

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 05901907

BLT, HEX .50-13X6.50 GR5 ZCC

$7.99

$

In Stock, Qty 18

0

11

Ariens 04821059

WLDMT, RH FENDER MOUNT

$78.99

$

Usually ships in 4-12 days

0

12

Ariens 04240759

WLDMT, LH FENDER MOUNT

$95.99

$

Usually ships in 4-12 days

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05901905

BLT, HEX .50-13X5.00 GR5 ZCC

$4.99

$

In Stock, Qty 18

0

15

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 11

0

16

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

17

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

18

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 2 left!

0

19

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$5.99

$

In Stock, Qty 20+

0

20

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 15

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

22

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

23

Ariens 04085759

BRACE, HOOD

$34.99

$

Usually ships in 4-12 days

0

24

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 7

0

25

Ariens 04411859

HOOD, ZOOM

$142.99

$

In Stock, only 1 left!

0

26

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

27

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

28

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

30

Ariens 03833800

GRIP, ADHESIVE (1" X 16" BLK)

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06500705

NUT-PUSH, .50

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

33

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

34

Ariens 06224800

@BLT-RDHDSQNK .50-13X1.75 G5YZ
(Superseded to 06200330)

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 04192951

WMT, UPPER CONTROL ARM

$49.99

$

In Stock, only 4 left!

0

36

Ariens 04188359

FOOTREST

$68.99

$

Usually ships in 4-12 days

0

37

Ariens 04192700

CUPHOLDER, SNAP-IN 3.75OD

$21.99

$

Usually ships in 4-12 days

0

38

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

39

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

41

Ariens 04739351

GUARD, HEAT SHIELD (ZOOM/ZT)

$54.99

$

Usually ships in 4-12 days

0

42

Ariens 04739451

STRAP, HEAT SHIELD (ZOOM/ZT)

$14.99

$

Usually ships in 4-12 days

0

43

Ariens 04739551

GUARD, HOT SURFACE (ZOOM/ZT)

$25.99

$

Usually ships in 4-12 days

0

44

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

45

Ariens 05091151

GUARD, REAR CLUTCH

$

$

Currently unavailable

46

Ariens 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.49

$

In Stock, Qty 15

0

47

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
