915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Mower Deck Lift Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

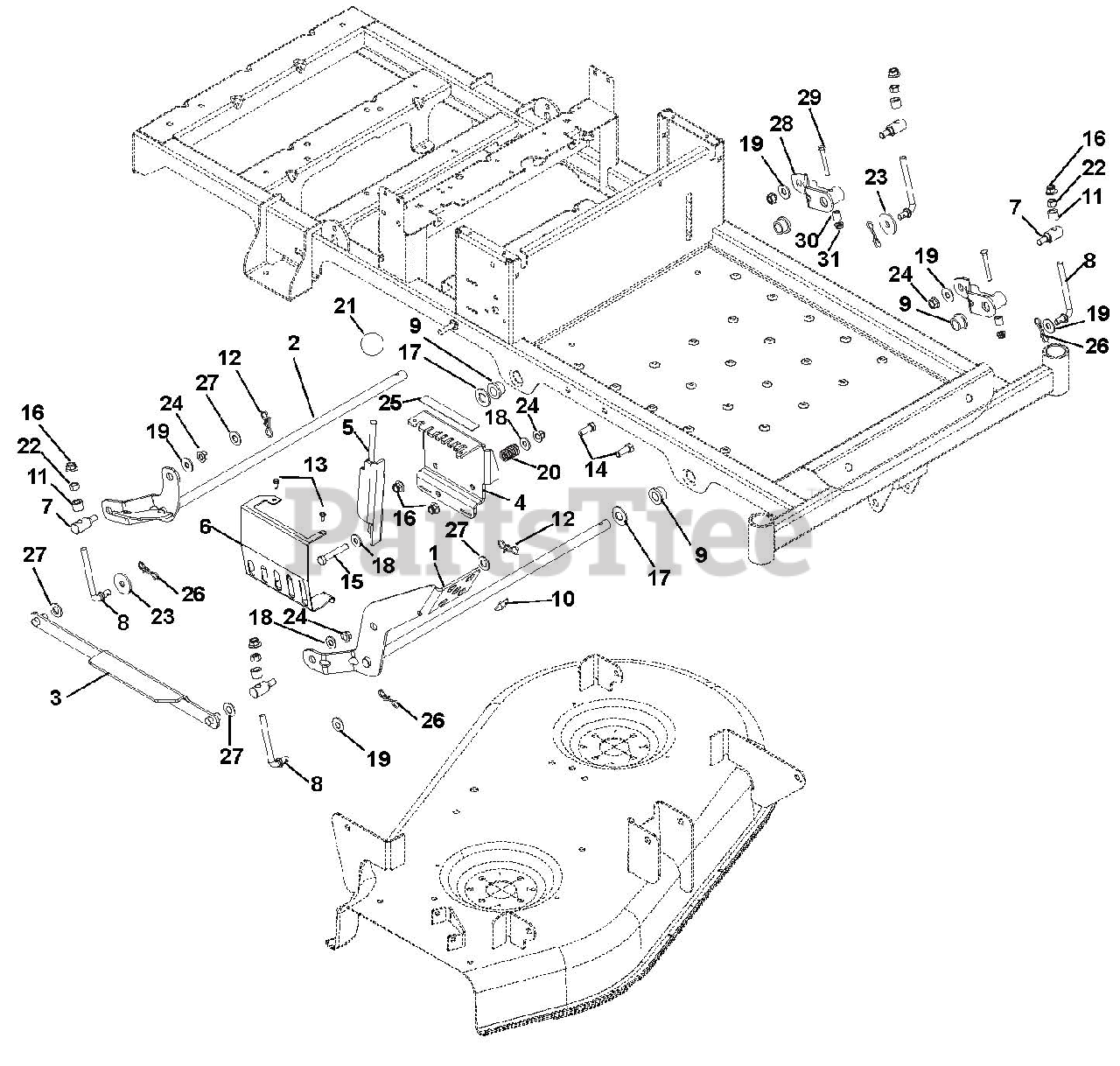

Mower Deck Lift Parts Diagram

  • Title

1

Ariens 04434567

WLDMT, FOOTPEDAL

$37.99

$

Usually ships in 4-12 days

0

2

Ariens 04434467

WLDMT, REAR DECK LIFT

$60.99

$

Usually ships in 4-12 days

0

3

Ariens 04377367

WMT, LIFT/HOC LINK

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 04377951

BRKT, HOC

$42.99

$

Usually ships in 4-12 days

0

5

Ariens 04391567

WMT, HOC LEVER

$258.99

$

Usually ships in 4-12 days

0

6

Ariens 04723751

GUARD, DECK HOC

$22.99

$

Usually ships in 4-12 days

0

7

Ariens 04377867

TRUNNION, DECK ADJUSTER
(Superseded to 04377800)

$23.99

$

In Stock, only 3 left!

0

8

Ariens 04377767

WIREFORM, DECK ADJUSTMENT
(Superseded to 04377700)

$17.99

$

In Stock, Qty 6

0

9

Ariens 05519100

BSHG-FLG .629X.879X.469X1.250

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 07525100

STOP

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 14

0

12

Ariens 06700225

PIN

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 6

0

14

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

16

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06401118

WSHR, FLT .656X1.313X.095 ZCC

$2.49

$

In Stock, Qty 15

0

18

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

20

Ariens 08300631

SPRG, COMPRESSION

$9.49

$

Usually ships in 4-12 days

0

21

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$9.99

$

In Stock, only 4 left!

0

22

Ariens 06500917

NUT-STD .375-16 G2 ZCC

$0.99

$

In Stock, Qty 7

0

23

Ariens 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 18

0

24

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07800334

DECAL, HEIGHT OF CUT

$10.99

$

Usually ships in 4-12 days

0

26

Ariens 06700220

PIN, BOWTIE .091X1.875 ZCC

$1.99

$

In Stock, Qty 20+

0

27

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, only 4 left!

0

28

Ariens 04434667

WLDMT, DECK LIFT ARM

$37.99

$

Usually ships in 4-12 days

0

29

Ariens 05901740

BLT, HEX .25-20X2.00 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

30

Ariens 05501112

BSHG-SLV .265X.500X.500

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0
