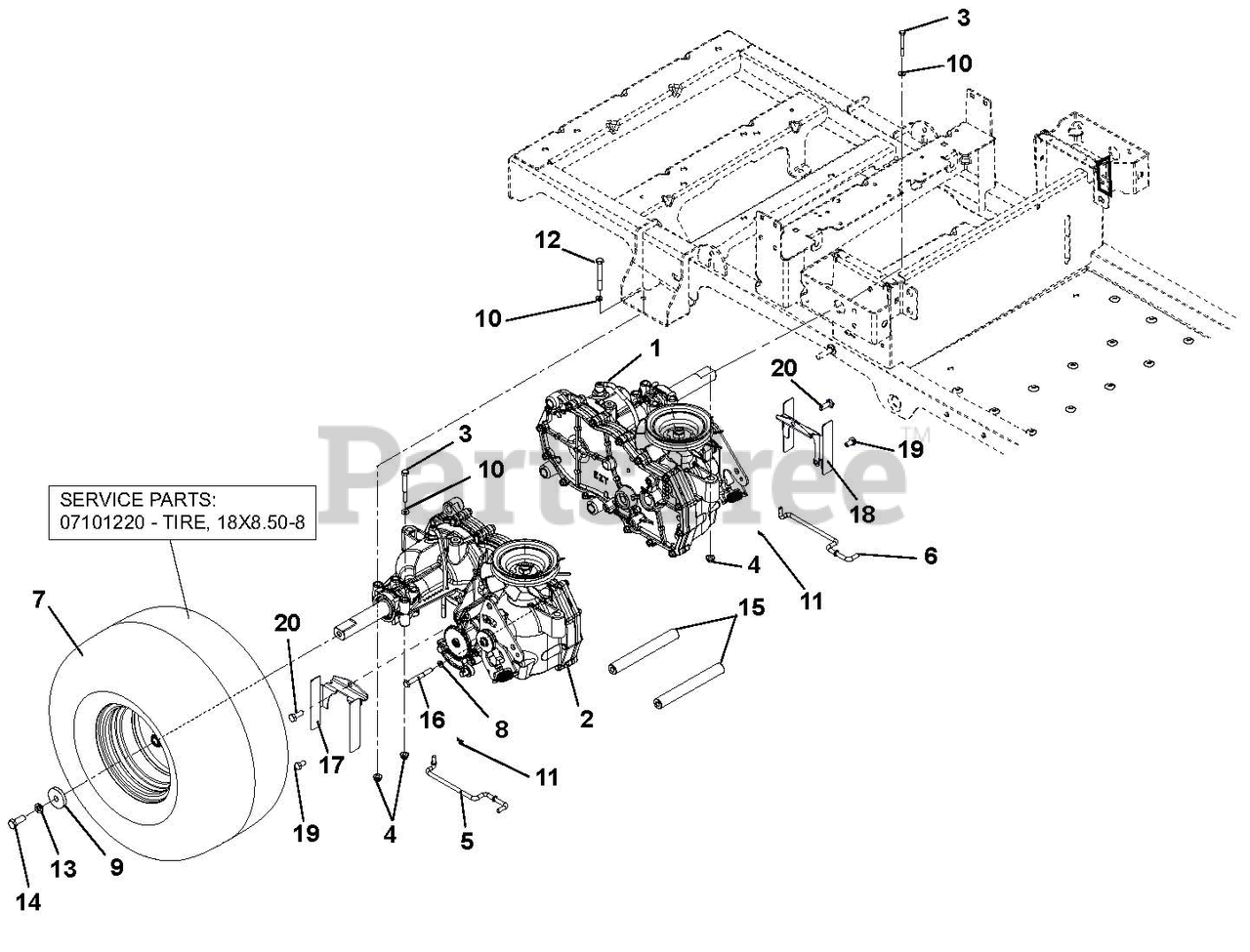

915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Transaxle, Dump Valves and Rear Wheels Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

Transaxle, Dump Valves and Rear Wheels Parts Diagram

  • Title

1

Ariens 04382300

TRANSAXLE, LH EZT D-SHAFT LONG

$923.99

$

Usually ships in 4-12 days

0

2

Ariens 04382400

TRANSAXLE, RH EZT D-SHAFT LONG

$923.99

$

In Stock, only 1 left!

0

3

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

4

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.99

$

In Stock, Qty 20+

0

5

Ariens 03762700

DUMPVALVE, RH LCZ

$22.99

$

Usually ships in 4-12 days

0

6

Ariens 03762800

DUMPVALVE, LH LCZ

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 07101130

ASM, WHL/TIRE 18X8.50-8 DHUB

$175.99

$

In Stock, only 2 left!

0

7

Ariens 07101220

TIRE, 18X8.50-8

Note: SERVICE PART

$125.99

$

Usually ships in 4-12 days

0

8

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

9

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, Qty 5

0

12

Ariens 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.99

$

In Stock, only 2 left!

0

13

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 17

0

14

Ariens 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$2.49

$

In Stock, Qty 20+

0

15

Ariens 03762067

SHAFT, TRANSAXLE BRACE
(Superseded to 03762000)

$48.99

$

In Stock, Qty 6

0

16

Ariens 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

17

Ariens 05097851

GUARD, CE RH PARKING BRAKE

$

$

Not available

18

Ariens 05097751

GUARD, CE LH PARKING BRAKE

$

$

Not available

19

Ariens 05901722

BLT, HEX .25-20X.625 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 05934000

BLT-HEX .25-20X.875

$2.49

$

Usually ships in 4-12 days

0
