915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 020000 - 029999) Frame, Hood, Footrest, Casters and Tires Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

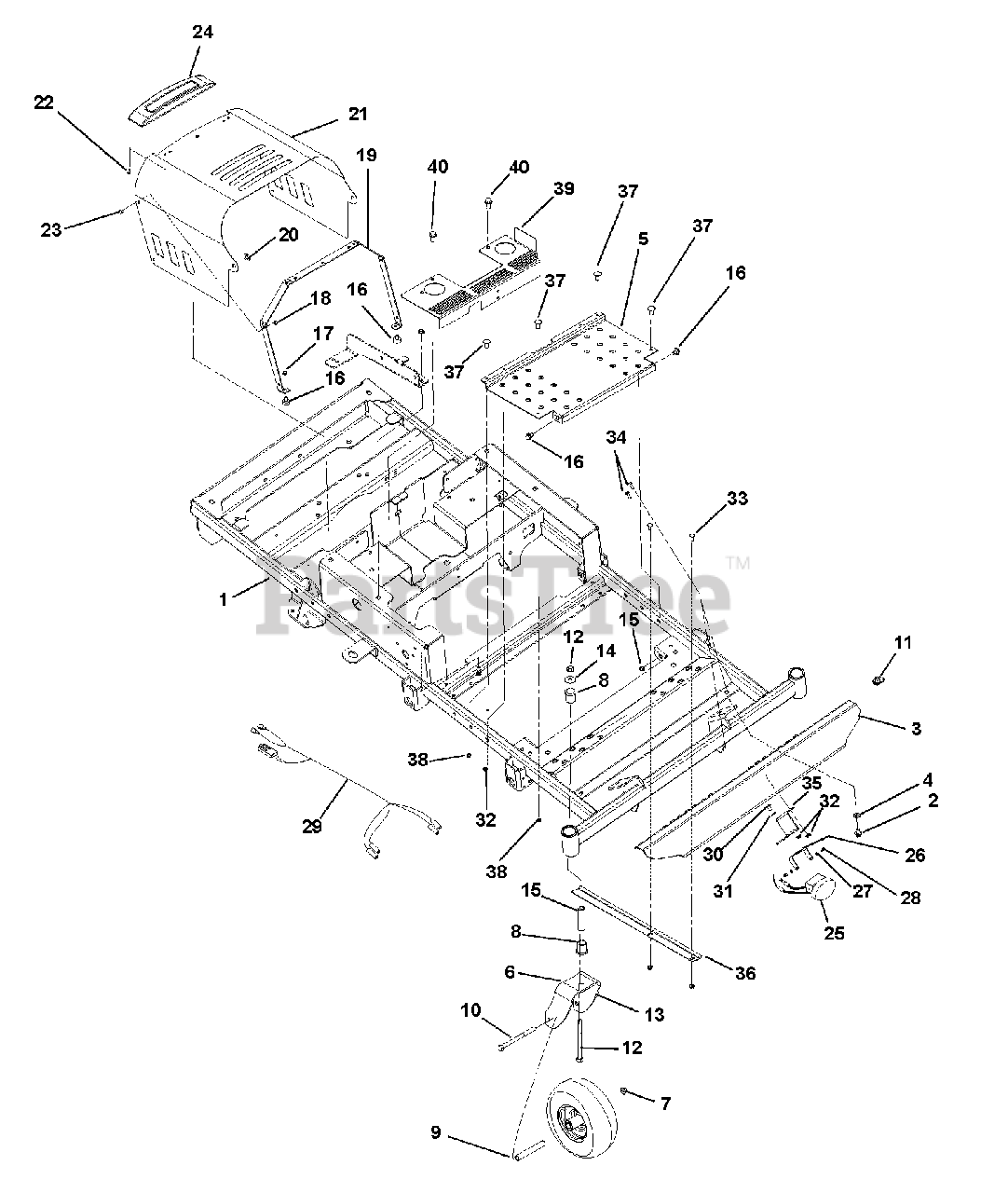

Frame, Hood, Footrest, Casters and Tires Parts Diagram

  • Title

1

Gravely 04559151

Weldment, Frame XL

$1739.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01922953

Weldment, Footrest

$170.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

5

Gravely 04186451

Deck Access Panel

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

Fork, Caster

$72.99

$

In Stock, only 4 left!

0

7

Gravely 07100124

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0, Monitor

$74.99

$

Usually ships in 4-12 days

0

8

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

11

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 4 left!

0

12

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

15

Gravely 03262200

Spacer, Caster Fork
(Superseded to 00363100)

$5.99

$

In Stock, Qty 17

0

16

Gravely 07533600

Bumper, Rubber

$14.99

$

In Stock, only 4 left!

0

17

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

19

Gravely 02985453

Bracket, Hood Brace

$46.99

$

Usually ships in 4-12 days

0

20

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 19

0

21

Gravely 04045253

Hood, ZT XL

$140.99

$

Usually ships in 4-12 days

0

22

Gravely 07400032

Screw, .25 x .50 PN Head

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

24

Gravely 02970500

Trim, ZT XL Hood

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 71513600

Kit, Zoom/ZT XL Light

$245.99

$

Usually ships in 4-12 days

0

26

Gravely 01603100

Bracket, Light

$41.99

$

Usually ships in 4-12 days

0

27

Gravely 06311200

Washer, Locking 4MM x 1MM Regular Cone Lock

$

$

Not available

28

Gravely 05980400

Screw, M4 x .07 x 8 Socket Head Cap

$1.99

$

In Stock, only 2 left!

0

29

Gravely 00379201

Harness, Mini-Z Headlight

$39.99

$

In Stock, only 1 left!

0

30

Gravely 07008100

Screw, Cap Button Head .31-18 x .50 Grade 5

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06500012

Nut, .25-20 Nyloc Flange (Serial Number 6059 +)
(Superseded to 06500813)

Note: (Serial Number 6059 +)

$1.49

$

In Stock, Qty 12

0

33

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

35

Gravely 03382451

Bracket, Light Mount

$8.99

$

Usually ships in 4-12 days

0

36

Gravely 03382551

Bracket, Light Harness

$17.99

$

Usually ships in 4-12 days

0

37

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

38

Gravely 06545400

Nut, Locking-Nylon-Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04168351

Bracket, XL CE Fan Guard

$

$

Not available

40

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0
