915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 030000 - 034999) 42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

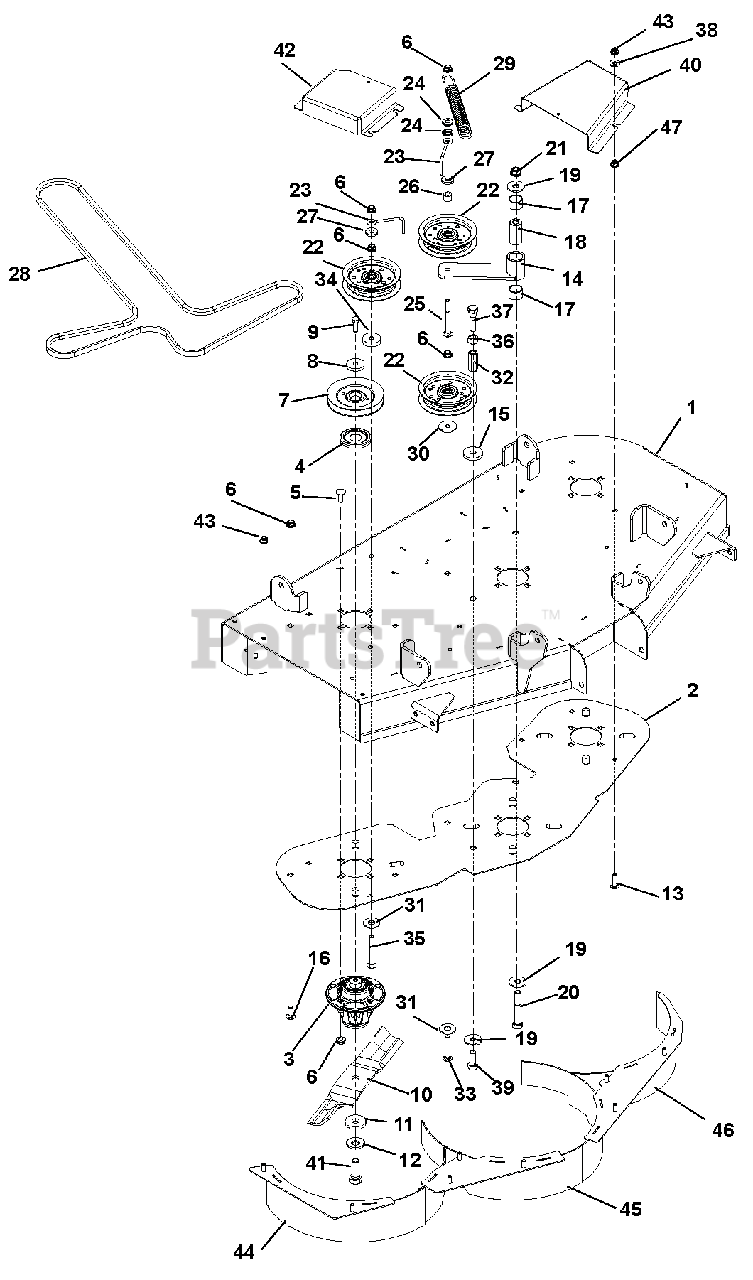

42" CE Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Gravely 51526000

XL-42 DECK KIT WITH DECALS

$

$

Not available

2

Gravely 03273053

DOUBLER PLATE, 42 XL

$

$

Not available

3

Gravely 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

4

Gravely 00587400

DUST CAP

$8.49

$

In Stock, Qty 12

0

5

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

Gravely 06224200

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07330267

PULLEY, SPINDLE

$53.99

$

In Stock, Qty 16

0

8

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 03288600

BLADE, MULCH 14.50"

$26.99

$

In Stock, only 1 left!

0

11

Gravely 06400829

WSHR-FLT .640X1.75X.250

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

13

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 00652600

WELDMENT, IDLER ARM

$47.99

$

In Stock, only 2 left!

0

15

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

16

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

18

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

19

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

20

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

23

Gravely 00391900

BELT FINGER

$21.99

$

In Stock, Qty 8

0

24

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 8

0

25

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

26

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$6.49

$

In Stock, Qty 20+

0

27

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 07219600

V-BELT, HA-WRAPPED

$83.99

$

In Stock, Qty 20+

0

29

Gravely 08300020

EXTENSION SPRING

$26.99

$

In Stock, Qty 15

0

30

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

31

Gravely 04334053

PLATE,IDLER MNT REINFORCEMENT

$24.99

$

Usually ships in 4-12 days

0

32

Gravely 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 9

0

34

Gravely 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, Qty 13

0

35

Gravely 06222400

BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.99

$

In Stock, Qty 9

0

36

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

38

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

39

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

40

Gravely 04180553

BELT COVER, LEFT

$

$

Not available

41

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

42

Gravely 04180653

BELT COVER, RIGHT

$

$

Not available

43

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 03374853

WMT, 42 MULCH BAFFLE (RH)

$

$

Not available

45

Gravely 03374953

WMT, 42 MULCH BAFFLE (CTR)

Note: (CTR)

$

$

Not available

46

Gravely 03375053

WMT, 42 MULCH BAFFLE (LH)

$

$

Not available

47

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

Note: (Serial Number 6059 +)

$1.49

$

In Stock, Qty 16

0
