915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 030000 - 034999) Mower Deck Lift Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

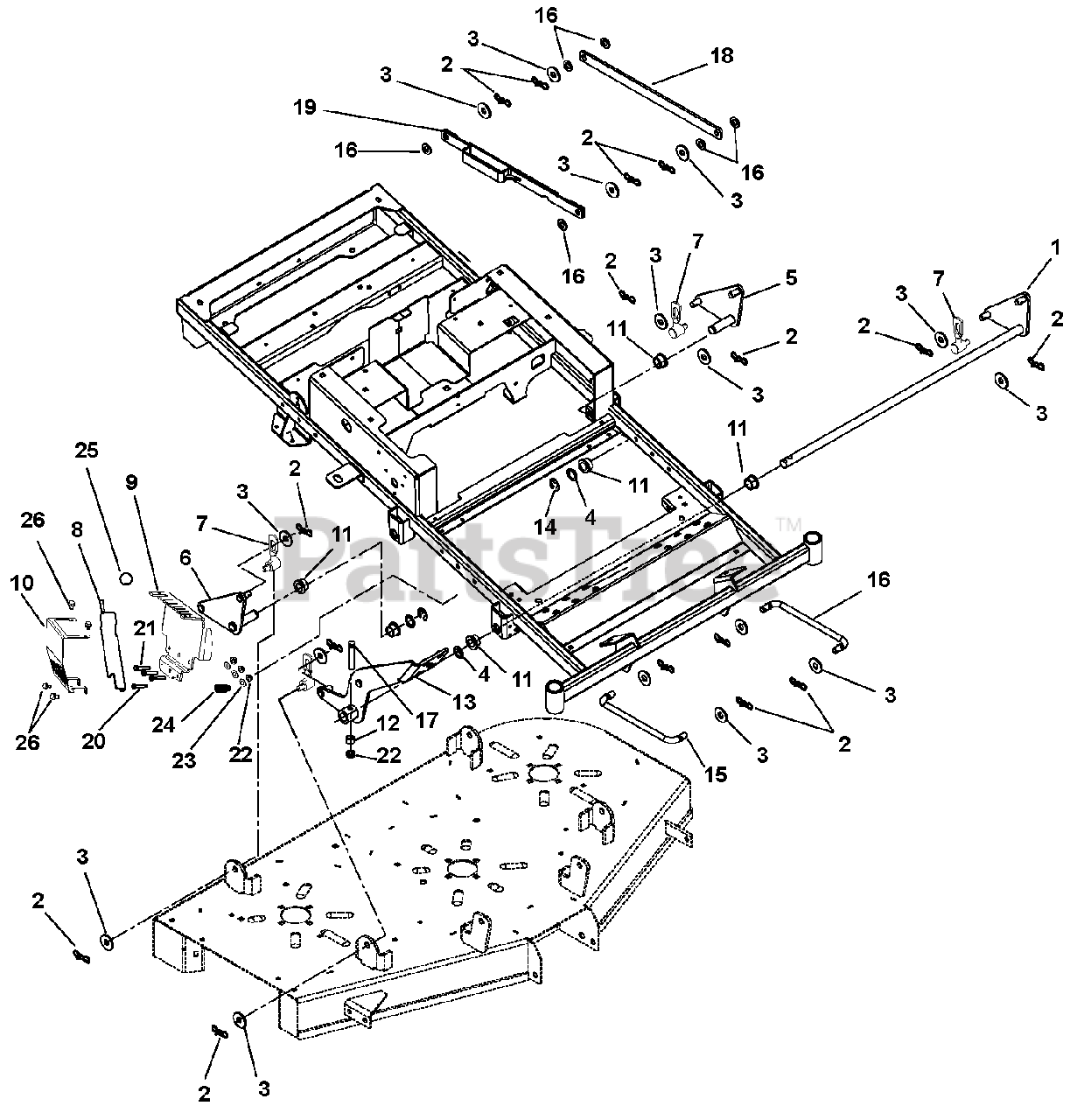

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 02969200

Weldment, Deck Pivot

$104.99

$

In Stock, only 1 left!

0

2

Gravely 06700201

Pin, Bow Tie Locking Cotter .091 x 1.875
(Superseded to 06700220)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06436400

Washer, Flat Steel.511 x 1.441 x .125
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 06441400

Washer, Flat Steel .754 x 1.125 x .062
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

5

Gravely 02969400

Weldment, Deck Pivot ZTXL Rear Left Hand

$158.99

$

Usually ships in 4-12 days

0

6

Gravely 02969300

Weldment, Deck Pivot ZTXL Rear Right Hand

$100.99

$

Usually ships in 4-12 days

0

7

Gravely 03272700

Assembly, Deck Link

$105.99

$

In Stock, only 4 left!

0

8

Gravely 04555567

Lever, Weldment

$

$

Not available

9

Gravely 04650251

Bracket, HOC XL

$56.99

$

Usually ships in 4-12 days

0

10

Gravely 04650351

Guard, Plate Styled HOC

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 05503900

Bushing, Flange .750 x 1.000 x .625 x 1.250

$13.99

$

In Stock, only 2 left!

0

12

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52

$6.49

$

In Stock, Qty 19

0

13

Gravely 02969151

Weldment, ZTXL Foot Pedal

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 05707400

Ring, Retaining-External .750 x .050

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 02004500

Link, Drag

$19.99

$

In Stock, Qty 5

0

16

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

18

Gravely 02973051

Link, Lift

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 04567300

HOC, Link Retaining XL

$

$

Not available

20

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

22

Gravely 06545500

Nut .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 08337500

Spring

$

$

Not available

25

Gravely 07533500

Knob

$10.99

$

In Stock, only 1 left!

0

26

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50 YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
