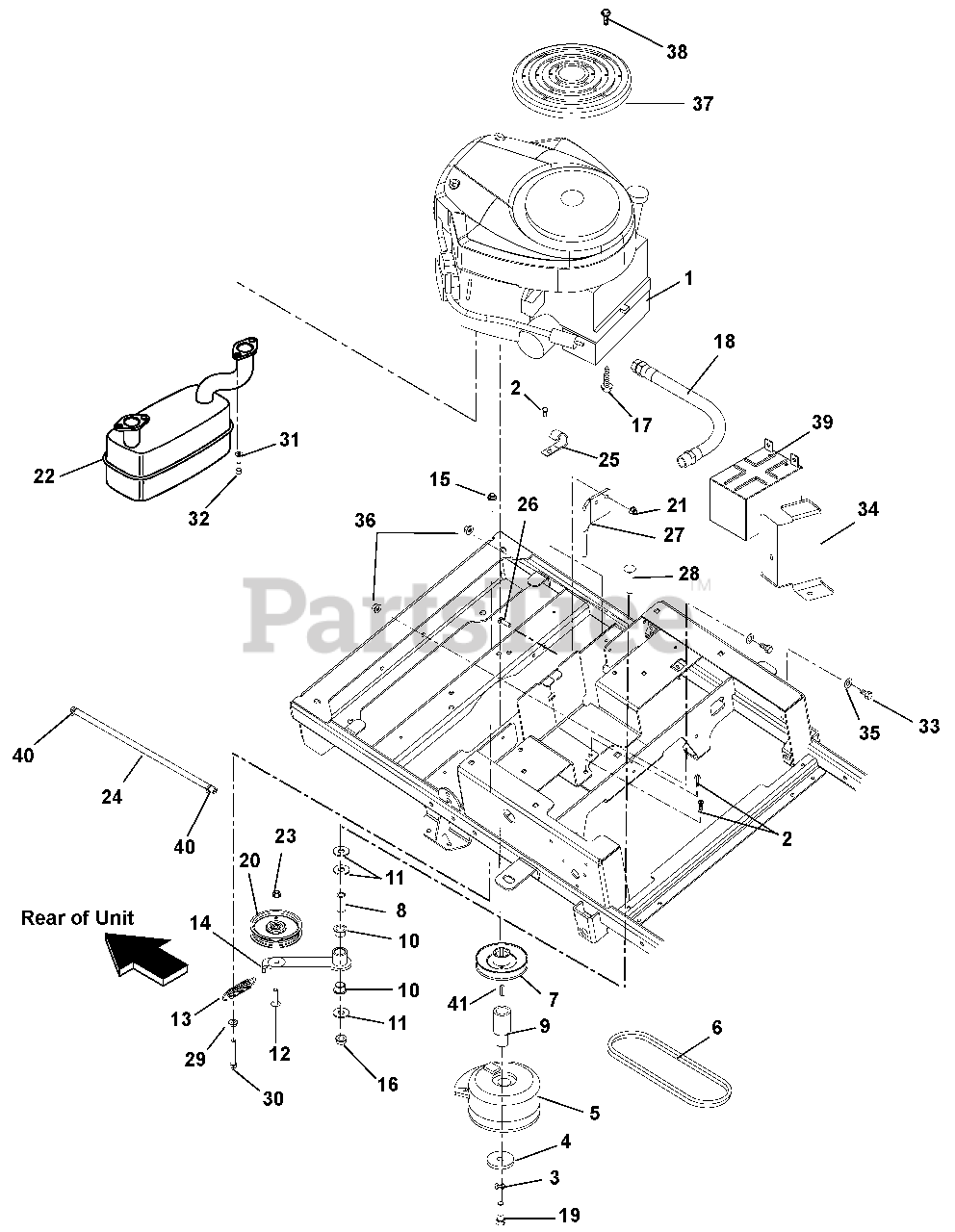

915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 040000 - 044999) > Parts Diagrams (17) > Engine, Exhaust, Belts And Idlers

  • Title
08201014

1

Engine, 18HP V-Twin CE

Part# 08201014

OEM Warranty Repair Part for Gravely

Not available

07411600

2

Screw, Tapping .250-20 x .37 Hex Washer Head

Part# 07411600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06309300

3

Washer, Locking .44 x .109 Regular

Part# 06309300

OEM Warranty Repair Part for Gravely

Not available

06443600

4

Washer, Flat Steel .469 x 2.00 x .25

Part# 06443600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

04678300

5

Clutch, XL

Part# 04678300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $318.76

07242200

6

Belt, HA 62.50 Wrapped

Part# 07242200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $37.51

07336500

7

Pulley, V 4.5 x 1.5 AB Section with Key

Part# 07336500 (Superseded to 07336567)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $50.25

05516400

8

Bushing, Sleave .500 x .750 x .1.560

Part# 05516400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

02996000

9

External, Crankshaft Lower

Part# 02996000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $48.69

05500039

10

Bushing, Flange 0.75 x 0.875 x .625 x 1.125

Part# 05500039

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.99

06442000

11

Washer, Flat Steel .563 x 1.38 x .109

Part# 06442000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06224200

12

Bolt, Round Head Square Neck .38-16 x 1.50 Grade 5

Part# 06224200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08311700

13

Spring, Tension .105 x .812 x 3.88

Part# 08311700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

02003800

14

Weldment, Ground Drive Idler Arm

Part# 02003800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $64.84

06545500

15

Nut, 3/8-16 Flange Nyloc

Part# 06545500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543600

16

Nut, Locking Top Flange .50-13

Part# 06543600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

07414100

17

Screw, Tapping .38-16 x 1.00 Hex Washer Head

Part# 07414100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00588700

18

Hose Assembly, Oil Drive .38 x 11.5 OAL

Part# 00588700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $49.19

05966700

19

Bolt, Hex .44-20 x 4.50 Grade 8

Part# 05966700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07300101

20

Assembly, 4" Idler

Part# 07300101

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.84

06545400

21

Nut, .31-18 Nyloc Flange

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

02997300

22

Muffler, Briggs & Stratton Twin

Part# 02997300

OEM Warranty Repair Part for Gravely

Not available

06542000

23

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

02974300

24

Fuel Hose

Part# 02974300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

06916000

25

J-Clamp

Part# 06916000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05946900

26

Bolt, Hex .31-18 x 1.00 Grade 5

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

03260051

27

Clutch Stop

Part# 03260051

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $30.69

06225500

28

Bolt, Round Head Square Neck .50-13 x 2.50 Grade 5

Part# 06225500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06534900

29

Nut, Flange .375-16

Part# 06534900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05958400

30

Bolt, Hex .38-16 x 2.50 Grade 5

Part# 05958400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06308600

31

Washer, Locking .31 x .078 Regular

Part# 06308600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05933100

32

Screw, Cap .31-18 x .75

Part# 05933100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05946800

33

Bolt, Hex .25-20 x .75

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

03949551

34

Bracket, Battery Hold Down

Part# 03949551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.32

06437300

35

Washer, Flat Steel .281 x .62 x .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.84

06509200

36

Nut, KEPS .250-20

Part# 06509200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03275500

37

Guard, Briggs & Stratton Engine

Part# 03275500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.29

06100206

38

Screw, 8-16 x .87

Part# 06100206

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

04591900

39

Battery, 12V, 215 CCA, GEP

Part# 04591900 (Superseded to 04738800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $64.73

03278800

40

Clamp, Fuel Line

Part# 03278800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06220210

41

Key, Straight .25 x 2.0 x .25

Part# 06220210

Not available
