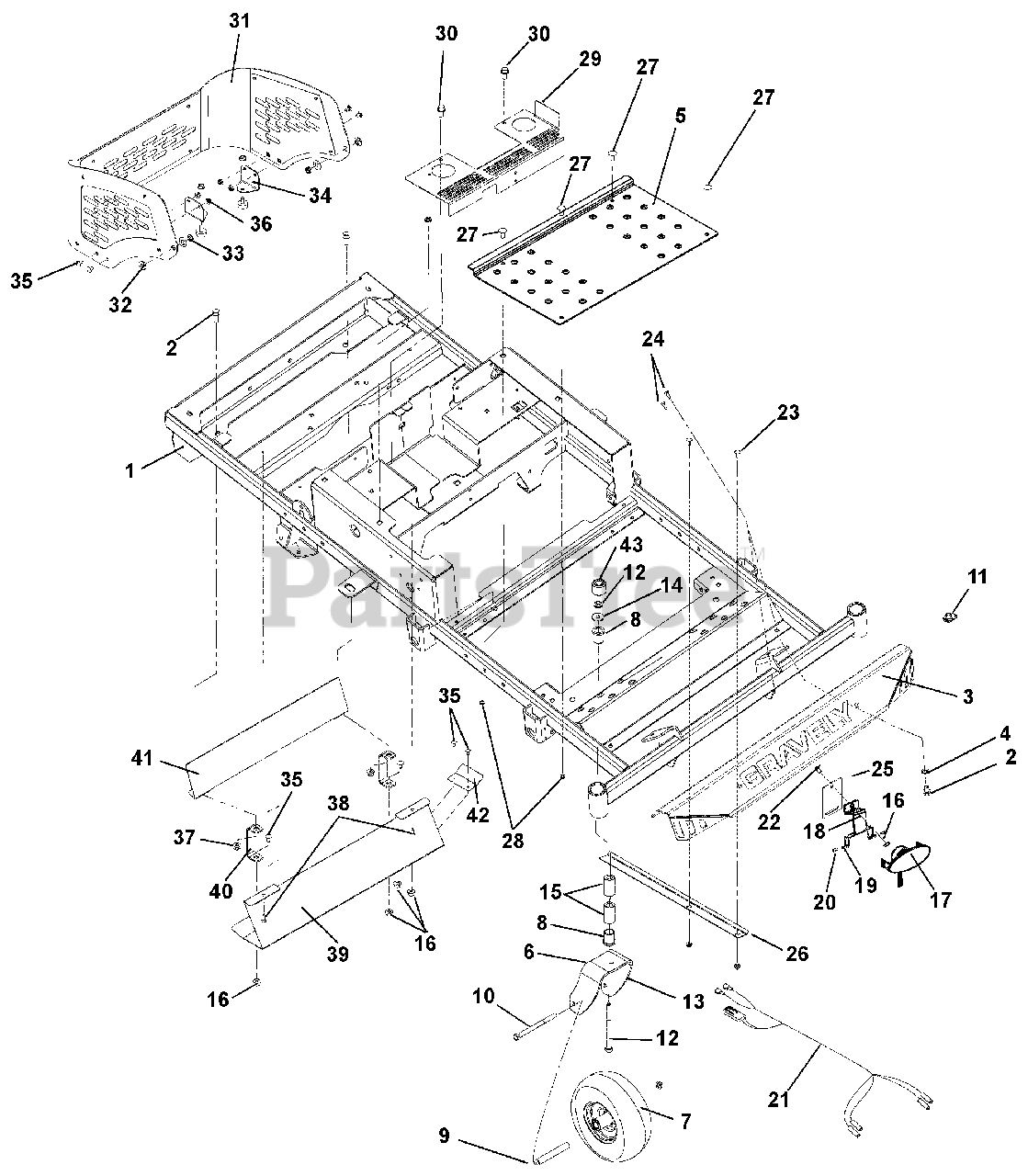

915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 040000 - 044999) > Parts Diagrams (17) > Frame, Hood, Footrest, Casters And Tires

  • Title
04559151

1

Weldment, Frame XL

Part# 04559151

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1305.00

05948700

2

Bolt, Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

04718253

3

Weldment, Footrest

Part# 04718253

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.32

06308800

4

Washer, Locking .38 x .094 Regular

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04186451

5

Deck Access Panel

Part# 04186451

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

03368553

6

Fork, Caster

Part# 03368553

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.77

07100124

7

Wheel/Tire Assembly, 11.0 x 4.0 x 5.0

Part# 07100124

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $84.61

05533600

8

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50

Part# 05533600 (Superseded to 05500934)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

00278500

9

Spacer, Rolled Wheel

Part# 00278500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

05964400

10

Bolt, Hex .50-13 x 6.50 Grade 5

Part# 05964400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

07053300

11

Nut, Retainer .375-16 x .37

Part# 07053300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06543600

12

Nut, Locking Top Flange .50-13

Part# 06543600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

05962200

13

Bolt, Hex .50-13 x 5.00 Grade 5

Part# 05962200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06436400

14

Washer, Flat Steel .511 x 1.441 x .125

Part# 06436400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

00363100

15

Spacer, Caster

Part# 00363100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

06543500

16

Nut, Locking Top Flange .25-20

Part# 06543500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

04815800

17

Assembly, Light

Part# 04815800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $77.42

04814851

18

Bracket, Light

Part# 04814851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06536000

19

Nut-Locking-Nylon 10-24 with Insert

Part# 06536000

OEM Warranty Repair Part for Gravely

Not available

06116700

20

Screw-Machine 10-24 x .5 Hex Washer Head

Part# 06116700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

04730600

21

Harness, Mini-Z Headlight

Part# 04730600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06219900

22

Bolt, Round Head Square Neck .25-20 x .75 Grade 5

Part# 06219900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06215700

23

Bolt, Round Head Square Neck .31-18 x .75 Grade 5

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05946800

24

Bolt, Hex .25-20 x .75 Grade 5

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

04728351

25

Bracket, Light Mount

Part# 04728351

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

03382551

26

Bracket, Light Harness

Part# 03382551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

05946900

27

Bolt, Hex .31-18 x 1.00 Grade 5

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06545400

28

Nut, Locking-Nylon-Flange .31-18

Part# 06545400

OEM Warranty Repair Part for Gravely

Not available

04168351

29

Bracket, XL CE Fan Guard

Part# 04168351

OEM Warranty Repair Part for Gravely

Not available

07412900

30

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling

Part# 07412900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

51526700

31

Assembly, Engine Wrap XL

Part# 51526700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

05501127

32

Bushing, Flange .325 x .499 x .3 x .875

Part# 05501127

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06528700

33

Nut, Locking Center Flange .31-18

Part# 06528700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04717951

34

Bracket, XL Engine Wrap Foot

Part# 04717951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.81

06220600

35

Bolt, Round Head Square Neck .25-20 x .50

Part# 06220600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06500710

36

Nut, Locking Center Flange .25-20

Part# 06500710 (Superseded to 06500821)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06542000

37

Nut, Locking Top Flange .38-16

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07400034

38

Screw, Tapping .25-20 x .50 Hex Washer Head Thread Rolling YWZ (Lubricated or Waxed)

Part# 07400034

Note: (Lubricated or Waxed)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

04744751

39

Guard, Muffler Heat

Part# 04744751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $66.91

04744851

40

Strap, Muffler Guard

Part# 04744851

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.14

04744951

41

Shield, Hot Surface

Part# 04744951

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

04752651

42

Deflector, Heat Shield

Part# 04752651

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

07500233

43

Cap, Dust

Part# 07500233

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89
