915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 040000 - 044999) Transaxle - Right Hand Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

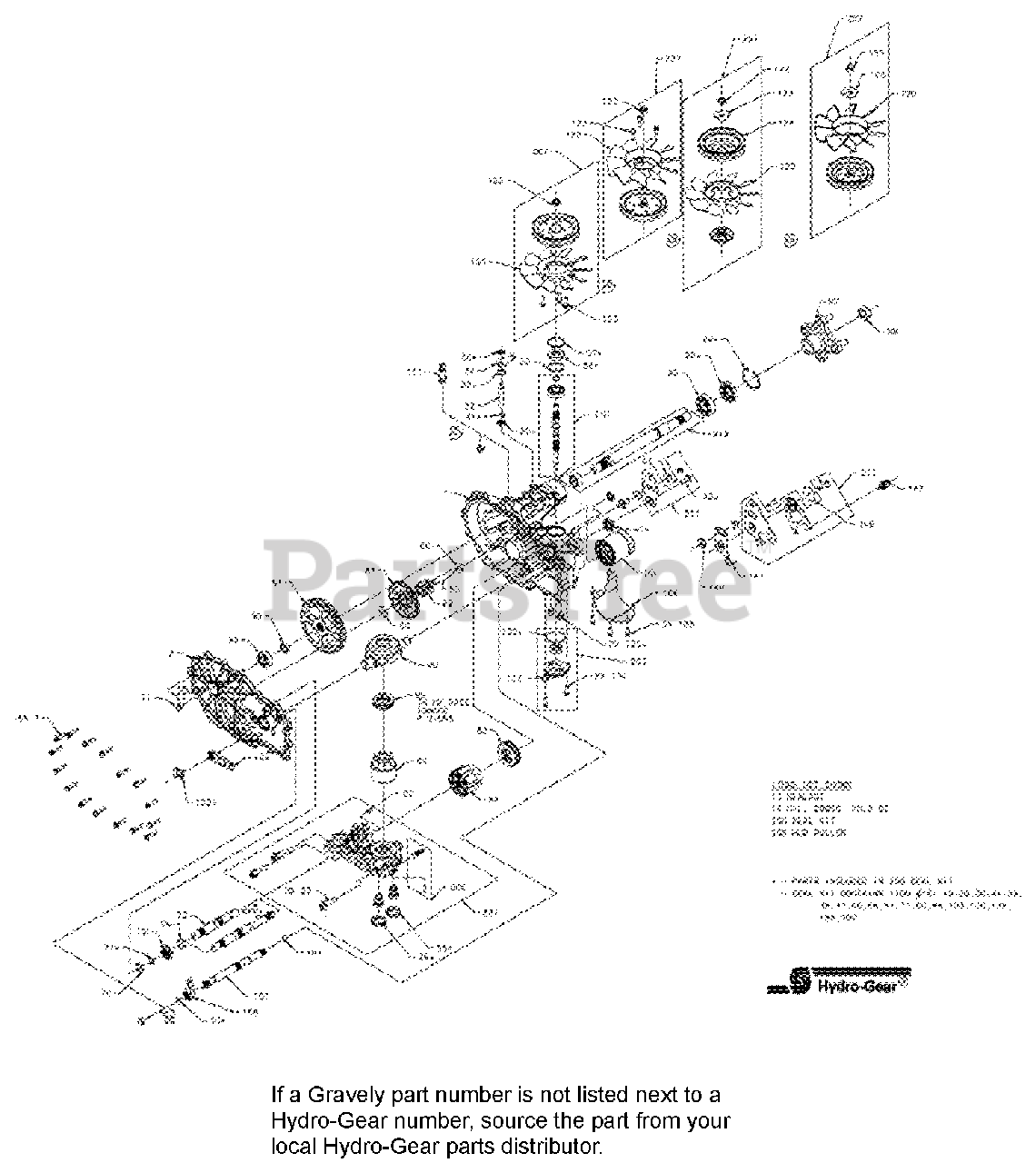

Transaxle - Right Hand Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH, CHRG, CNTL

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: Hydro-Gear P/N 71413

$

$

Not available

2

KIT, COVER, SIDE, RH

KIT, COVER, SIDE, RH

Note: Hydro-Gear P/N 71572

$

$

Not available

7

Gravely 27105900

HFHCS 1/4-20 x 1.125"

Note: Hydro-Gear P/N 53246

$2.99

$

In Stock, only 3 left!

0

10

O-RING - 111 .103 x .424

O-RING - 111 .103 x .424

Note: Hydro-Gear P/N 51804

$

$

Not available

11

Gravely 08613700

PLUG 9/16-18 (METAL)

Note: Hydro-Gear P/N 9005110-5600

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT

Note: Hydro-Gear P/N 50928

$171.99

$

In Stock, only 1 left!

0

14

OIL, 20W50

OIL, 20W50

$

$

Not available

22

Gravely 21543839

PLATE, BYPASS

Note: Hydro-Gear P/N 51448

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 21544900

FILTER, OIL
(Superseded to 21545100)

Note: Hydro-Gear P/N 52114

$42.99

$

Usually ships in 4-12 days

0

26

Gravely 21544047

SEAL, PLUG 1.250 x .250

Note: Hydro-Gear P/N 52162

$7.99

$

Usually ships in 4-12 days

0

27

HFHCS 3/8-16 x 1.5 (PATCH)

HFHCS 3/8-16 x 1.5 (PATCH)

Note: Hydro-Gear P/N 52137

$

$

Not available

30

Gravely 21543845

SEAL, LIP .375 x .75 x .25

Note: Hydro-Gear P/N 51626

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 08622500

RING, RET .375 EXTRNL

Note: Hydro-Gear P/N 51628

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS

ROD, BYPASS

Note: Hydro-Gear P/N 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750 INTRNL

Note: Hydro-Gear P/N 51627

$

$

Not available

34

Gravely 21544046

ARM, BYPASS

Note: Hydro-Gear P/N 51910

$16.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .375 EXT

Note: Hydro-Gear P/N 51630

$4.49

$

In Stock, only 2 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

Note: Hydro-Gear P/N 51048

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 12 x 32 x 7

Note: Hydro-Gear P/N 51140

$9.99

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER .34 x .88 x .06

Note: Hydro-Gear P/N 44130

$4.49

$

Usually ships in 4-12 days

0

46

Gravely 21543854

TWHCS 5/16-24 x 1.00 (PATCH)

Note: Hydro-Gear P/N 51812

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23 x 1.56 x .04

Note: Hydro-Gear P/N 50951

$6.49

$

In Stock, only 2 left!

0

56

Gravely 21543816

SEAL, LIP 17 x 40 x 7

Note: Hydro-Gear P/N 51161

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RETAINING

Note: Hydro-Gear P/N 50329

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

BEARING, THRUST

Note: Hydro-Gear P/N 51462

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

ASS'Y, CYLINDER BLOCK, 16cc

Note: Hydro-Gear P/N 71579

$78.99

$

In Stock, only 2 left!

0

65

Gravely 08609100

BRG, THRUST BALL 30 x 52 x 13

Note: Hydro-Gear P/N 50551

$19.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASS'Y, BLOCK 7 PISTON

Note: Hydro-Gear P/N 70723

$145.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63 x 1.0 x .05

Note: Hydro-Gear P/N 44371

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RETAINING_.625

Note: Hydro-Gear P/N 44145

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 16T

GEAR, 16T

Note: Hydro-Gear P/N 52149

$

$

Not available

73

SHAFT, MOTOR

SHAFT, MOTOR

Note: Hydro-Gear P/N 52150

$

$

Not available

74

Gravely 21543788

WASHER .72 x 1.16 x .04

Note: Hydro-Gear P/N 51069

$

$

Not available

80

Gravely 21543724

WASHER .5 x 1.0 x .03

Note: Hydro-Gear P/N 50132

$

$

Not available

81

GEAR, 43T

GEAR, 43T

Note: Hydro-Gear P/N 52148

$

$

Not available

82

GEAR, 11T

GEAR, 11T

Note: Hydro-Gear P/N 52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

Note: Hydro-Gear P/N 51083

$

$

Not available

90

Gravely 08616500

RING, RET 2.06 INT

Note: Hydro-Gear P/N 50859

$9.99

$

Usually ships in 4-12 days

0

91

GEAR, 54T

GEAR, 54T

Note: Hydro-Gear P/N 52108

$

$

Not available

92

SPACER, .75 x 1.32 x .257

SPACER, .75 x 1.32 x .257

Note: Hydro-Gear P/N 53336

$

$

Not available

93

BEARING, BALL, .75 x 40 x 12

BEARING, BALL, .75 x 40 x 12

Note: Hydro-Gear P/N 44121

$

$

Not available

95

Gravely 08614000

BRG, BALL 1.0 x 52 x 15 OPEN 6205M

Note: Hydro-Gear P/N 50771

$25.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP 25 x 52 x 10 TC (GRAY)

Note: Hydro-Gear P/N 50772

$18.99

$

Usually ships in 4-12 days

0

97

Gravely 21544061

KIT, HUB, 4 BOLT

Note: Hydro-Gear P/N 71446

$96.99

$

Usually ships in 4-12 days

0

99

Gravely 08621100

NUT, HEX LOCK 3/4-16

Note: Hydro-Gear P/N 50863

$7.99

$

Usually ships in 4-12 days

0

100

PAWL, BRAKE

PAWL, BRAKE

Note: Hydro-Gear P/N 52776

$

$

Not available

101

SHAFT, BRAKE

SHAFT, BRAKE

Note: Hydro-Gear P/N 52651

$

$

Not available

102

Gravely 02996500

HANDLE, ACTUATING

Note: Hydro-Gear P/N 52639

$19.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP, RETAINING

Note: Hydro-Gear P/N 52027

$6.49

$

In Stock, only 2 left!

0

105

Gravely 21543759

HFHCS 1/4-20 x .75

Note: Hydro-Gear P/N 50752

$2.49

$

Usually ships in 4-12 days

0

106

GUARD, FILTER, RH

GUARD, FILTER, RH

Note: Hydro-Gear P/N 52257

$

$

Not available

111

Gravely 21544058

FITTING, STR 9/16-18 SAE .5 BARB

Note: Hydro-Gear P/N 71393

$38.99

$

Usually ships in 4-12 days

0

120

Gravely 21544011

FAN 7", 10 BLADE

Note: Hydro-Gear P/N 52576

$25.99

$

Usually ships in 4-12 days

0

122

Gravely 21543703

NUT, HEX JAM 1/2-20 W/PATCH

Note: Hydro-Gear P/N 44133

$4.99

$

In Stock, only 1 left!

0

123

Gravely 21543791

HFHCS 1/4-20 x .875

Note: Hydro-Gear P/N 51076

$

$

Not available

130

TUBE, CONNECTING

TUBE, CONNECTING

Note: Hydro-Gear P/N 52157

$

$

Not available

131

Gravely 08611500

GEROTOR ASSEMBLY (1.9 cc/rev)

Note: Hydro-Gear P/N 50273

$27.99

$

Usually ships in 4-12 days

0

132

Gravely 21544005

O-RING, -137, 0.103 x 2.050

Note: Hydro-Gear P/N 52250

$6.49

$

Usually ships in 4-12 days

0

133

COVER, CHARGE PUMP

COVER, CHARGE PUMP

Note: Hydro-Gear P/N 52688

$

$

Not available

134

Gravely 21543759

HFHCS 1/4-20 x .75

Note: Hydro-Gear P/N 50752

$2.49

$

Usually ships in 4-12 days

0

140

Gravely 21543870

SPACER .320 x 1.005 x .179

Note: Hydro-Gear P/N 52527

$

$

Not available

141

Gravely 21543866

ARM, NEUTRAL RIGHT

Note: Hydro-Gear P/N 51945

$26.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24 x 1 PATCH

Note: Hydro-Gear P/N 51616

$

$

Not available

146

Gravely 21543871

WASHER, .343 x 1.500 x .062

Note: Hydro-Gear P/N 51950

$7.49

$

Usually ships in 4-12 days

0

147

Gravely 21544001

SPRING, EXTNSN RTN-34LBS

Note: Hydro-Gear P/N 51833

$15.99

$

Usually ships in 4-12 days

0

200

Gravely 21543999

KIT, SEAL

Note: Hydro-Gear P/N 71410

$79.99

$

Usually ships in 4-12 days

0

201

Gravely 21544062

KIT, CENTER SECTION, RH, CHRG

Note: Hydro-Gear P/N 71561

$

$

Not available

202

KIT, CHARGE RELIEF

KIT, CHARGE RELIEF

Note: Hydro-Gear P/N 71436

$

$

Not available

203

KIT, CHARGE PUMP

KIT, CHARGE PUMP

Note: Hydro-Gear P/N 71411

$

$

Not available

207

Gravely 21544066

KIT, FAN & PULLEY

Note: Hydro-Gear P/N 71833

$175.99

$

Usually ships in 4-12 days

0

209

Gravely 21544009

HUB PULLER, 4 BOLT
(Superseded to 21544008)

Note: Hydro-Gear P/N 71459

$461.99

$

Usually ships in 4-12 days

0

210

Gravely 21544010

KIT, INPUT SHAFT
(Superseded to 21544039)

Note: Hydro-Gear P/N 71442

$

$

Not available

211

Gravely 21544064

KIT, RTN, CW

Note: Hydro-Gear P/N 71590

$37.99

$

Usually ships in 4-12 days

0

212

KIT, SHAFT, AXLE

KIT, SHAFT, AXLE

Note: Hydro-Gear P/N 71570

$

$

Not available
