915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 & Above) Electrical System Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

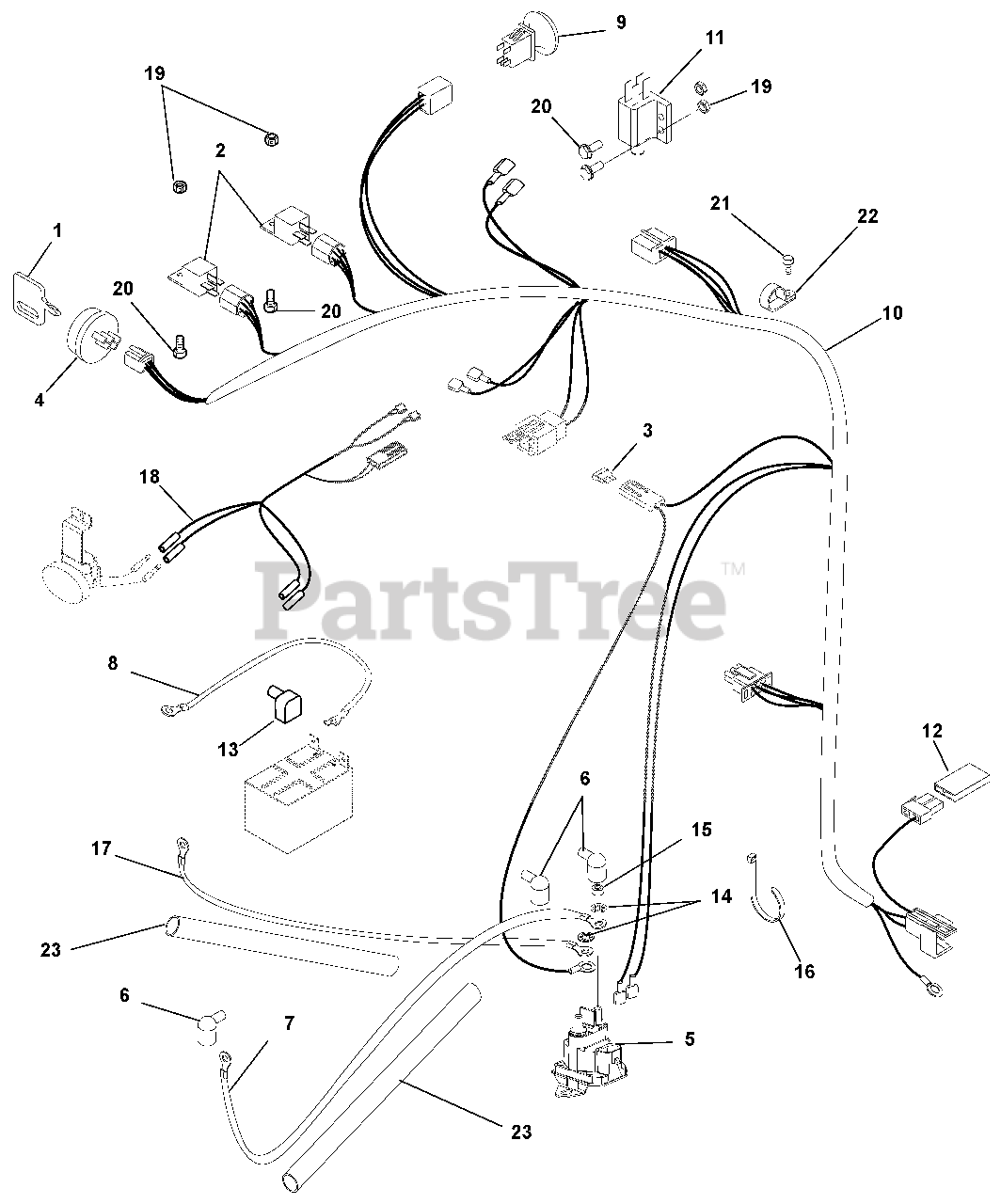

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03042800

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 30 AMP
(Superseded to 08961800)

$3.99

$

In Stock, Qty 11

0

4

Gravely 01588300

Key Switch

$28.99

$

In Stock, Qty 17

0

5

Gravely 04781700

Solenoid, Starter Sealed

$47.99

$

In Stock, Qty 10

0

6

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, Qty 7

0

7

Gravely 04787500

Starter Cable with 2 1/4" Ring

$18.99

$

Usually ships in 4-12 days

0

8

Gravely 03287100

Cable, Ground .25 x 13.00 x .31

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 01545600

Switch, Clutch With Retainer

$22.99

$

In Stock, Qty 19

0

10

Gravely 04781900

Harness, ZTXL/ZoomXL Wire

$137.99

$

Usually ships in 4-12 days

0

11

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$15.99

$

In Stock, only 3 left!

0

12

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, Qty 20+

0

13

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

15

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$2.49

$

In Stock, Qty 8

0

16

Gravely 07517300

Cable Tie

$

$

Not available

17

Gravely 04787500

Starter Cable with 2 1/4" Ring

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 04730600

Harness, Headlight

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 06536000

Nut, Locking Nylon With Insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 06116900

Screw, Hex Washer Head Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 07412900

Screw, Tapping Hex Washer Head Thread Rolling .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06900036

Clamp, Cushioned Steel .75

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 04189100

Sleeve, Anti-Abrasion

$3.49

$

Usually ships in 4-12 days

0
