915326 (ZT XL 42) - Gravely 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 045000 & Above) Frame, Hood, Footrest, Casters And Tires Parts Diagram

42" Zero-Turn Mower, 18hp Briggs & Stratton

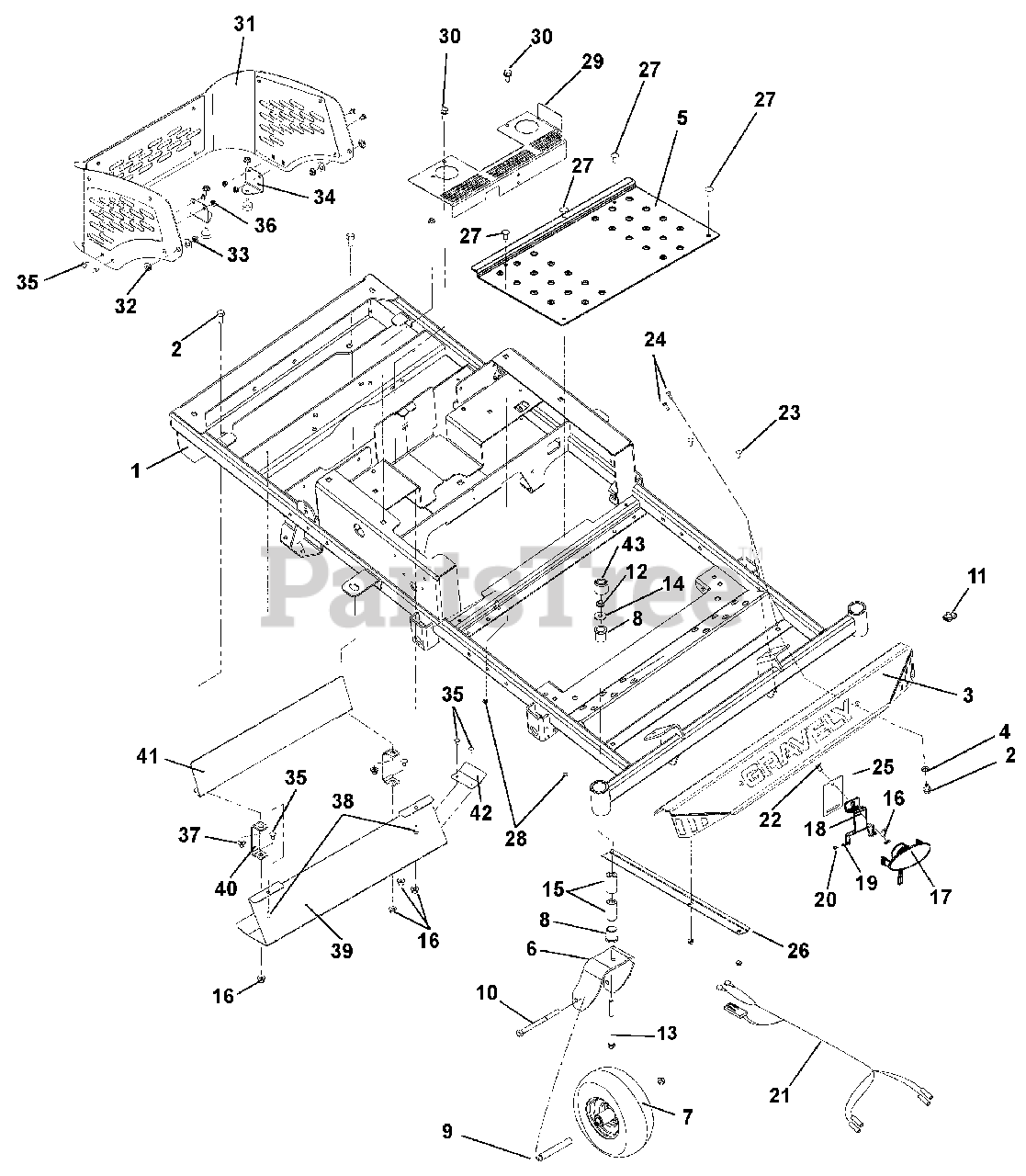

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 04559151

WLDMT, FRAME ZT/ZOOMXL (2013)

$1773.99

$

Usually ships in 4-12 days

0

2

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 04718253

WLDMT, FOOT-REST XL

$197.99

$

Usually ships in 4-12 days

0

4

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04186451

PANEL WLDMT, FOOT PLATE

$105.99

$

Usually ships in 4-12 days

0

6

Gravely 03368553

WMT, CASTER FORK

$75.99

$

In Stock, Qty 7

0

7

Gravely 07100124

TIRE/WHEEL ASSY, 11X4-5

$83.99

$

In Stock, Qty 20+

0

8

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$7.99

$

In Stock, Qty 20+

0

9

Gravely 00278500

SPACER, ROLLED WHEEL

$15.99

$

In Stock, Qty 20+

0

10

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05962200

BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$5.99

$

In Stock, Qty 20+

0

14

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$7.99

$

In Stock, Qty 20+

0

16

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

17

Gravely 04815800

LIGHT ASSEMBLY

$98.99

$

Usually ships in 4-12 days

0

18

Gravely 04814851

BRKT, FOG LIGHT

$18.99

$

Usually ships in 4-12 days

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 04730600

HARNESS, XL HEADLIGHT

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

25

Gravely 04728351

BRKT, LIGHT FRAME MOUNT

$8.49

$

Usually ships in 4-12 days

0

26

Gravely 03382551

BRACKET, LIGHT HARNESS

$23.99

$

Usually ships in 4-12 days

0

27

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 04168351

BRACKET, XL CE FAN GUARD

$

$

Not available

30

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 51526700

ASM, ENGINE WRAP XL

$174.99

$

Usually ships in 4-12 days

0

32

Gravely 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06528700

NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 04717951

BRKT, XL ENGINE WRAP FOOT

$15.99

$

Usually ships in 4-12 days

0

35

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

36

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 6

0

37

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (Lubricated or Waxed)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 04744751

GUARD, MUFFLER HEAT

$70.99

$

In Stock, only 1 left!

0

40

Gravely 04744851

STRAP, MUFFLER GUARD

$23.99

$

Usually ships in 4-12 days

0

41

Gravely 04744951

SHIELD, HOT SURFACE

$35.99

$

Usually ships in 4-12 days

0

42

Gravely 04752651

DEFLECTOR, HEAT SHIELD

$29.99

$

Usually ships in 4-12 days

0

43

Gravely 07500233

CAP, DUST

$10.99

$

In Stock, Qty 15

0
